Components
V-Series
The SelfCheck System V-Series models
consist of the following components:
(1) Color touch screen monitor
(2) Magnetic card reader (optional)
(3) Barcode scanner
(4) Smart card reader (optional)
(5) Receipt printer
(6) V-cradle
(7) Interconnect box (inside furniture)
(8) V-coil driver box (inside furniture)
(9) Appliance coupler (inside furniture)
(10) Computer with keyboard and mouse
(inside furniture)
2
5
3
6
7
9
4
1
10
8

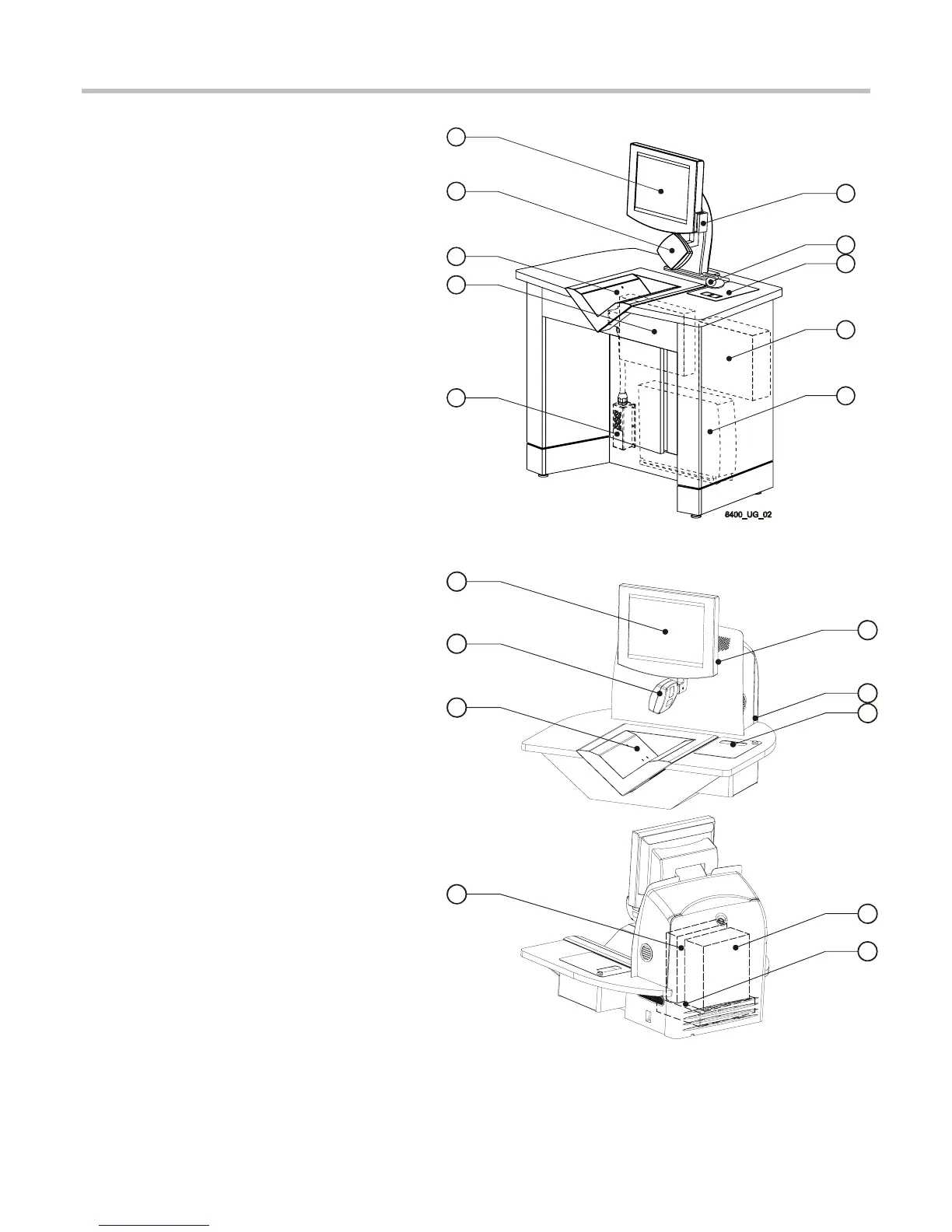

3M™ SelfCheck™ System V-Series components
V-Series Tabletop Units
The SelfCheck System V-Series Tabletop Unit
models consist of the following components:
(1) Color touch screen monitor
(2) Magnetic card reader (optional)
(3) Barcode scanner
(4) Smart card reader (optional)
(5) Receipt printer
(6) V-cradle
(7) Computer (inside chassis)
(8) V-coil driver box (inside chassis)
(9) Interconnect box (inside chassis)
6412_UG_03
2
5
3
6
7
4
1
8
9
3M™ SelfCheck™ System V-Series Tabletop Unit
components
