3M SoundPro SE Series - Figure F. 4 - 0-180 Degree Incidence Angles (IEC 61672 Class 1)

Page 132 Microphones
BK4936 microphone (Figures/Tables “F”)
053-469 RevC
SoundPro models SE and DL Data Addendum

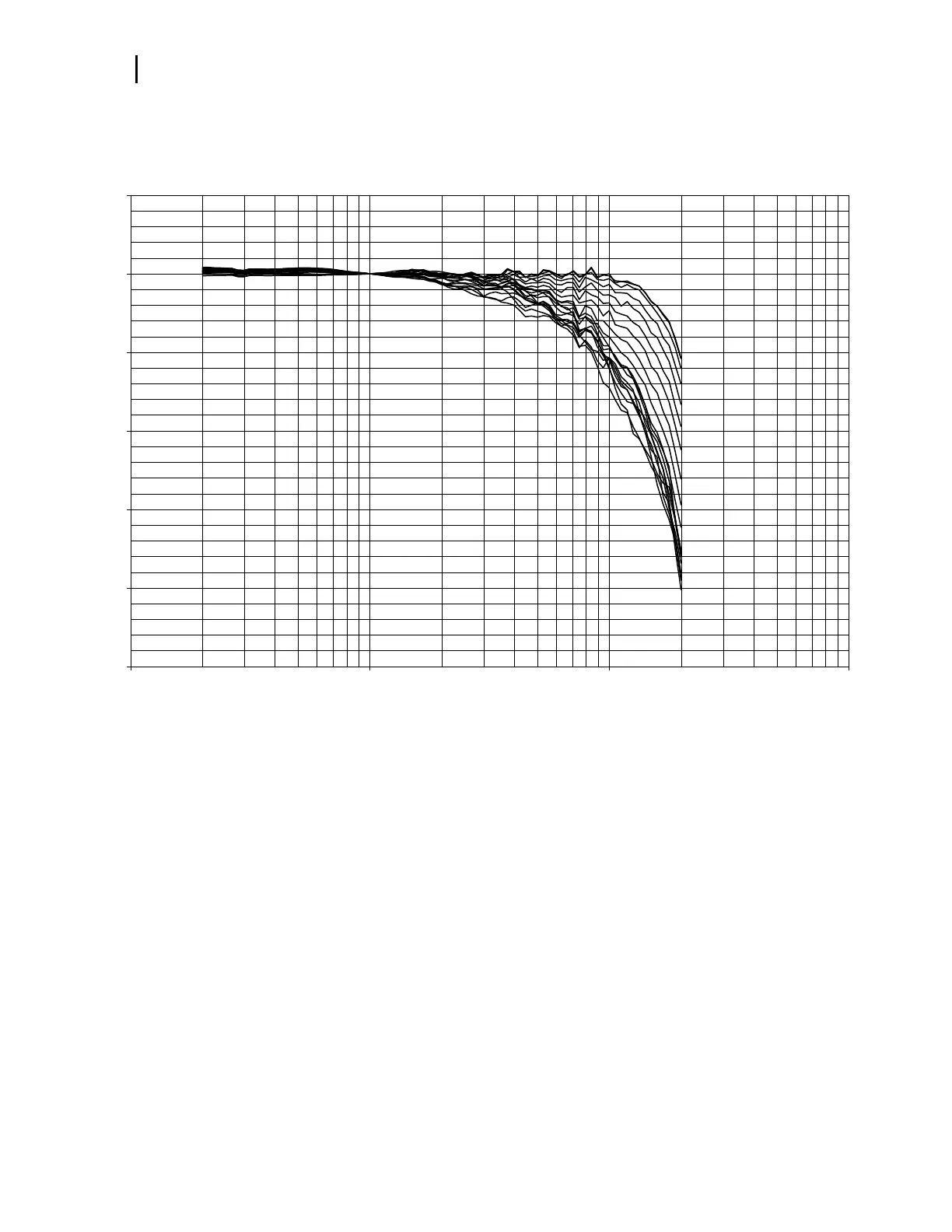

Figure F. 4 - 0-180 degree incidence angles (IEC 61672 class 1)
-25
-20
-15
-10
-5
0
5
100 1000 10000 100000
Frequency Hz
Relative dB
