3M Speedglas G5-02 - INSPECTION & MAINTENANCE; General Inspection Procedures; Helmet Shell and Headgear Inspection

12
to make sure it is in good working order. Ensure suspension is properly attached and pivots easily. See
Welding Helmet Donning & Fitting section (above) for instruction regarding removal and replacement of the
head suspension.
3. Outer protection plate and front cover: Look for scratches or other visual distortions that could make it
difcult to see through the outside protection plate. Look for signs that the outside protection plate or front
cover has warped or cracked. Make sure it is installed correctly and replace as necessary. To replace the
outer protection plate and front cover:

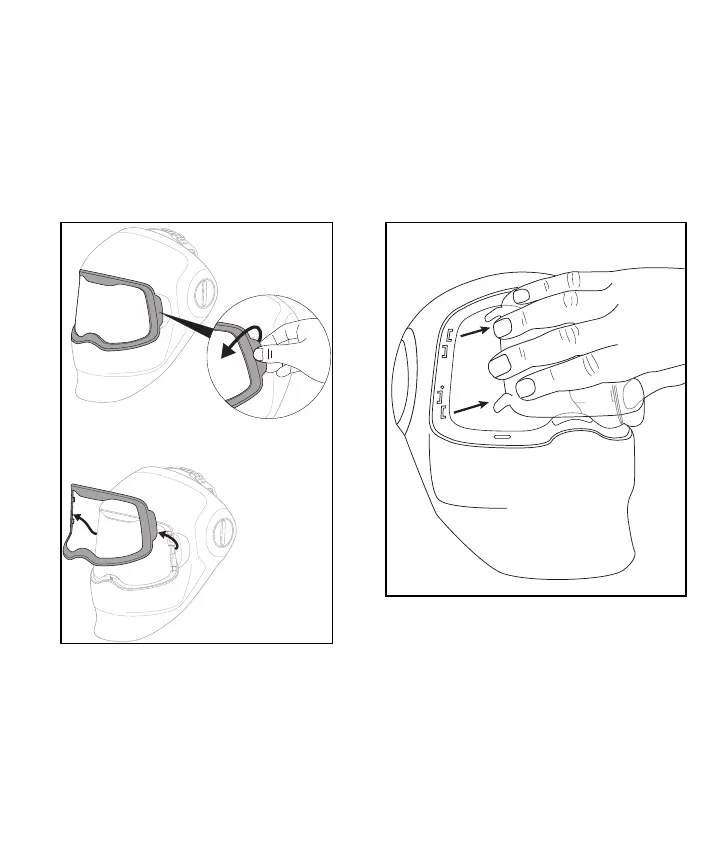

a. Lift on the tab on the side of the front cover to remove it from the welding helmet (Fig. 7a).
b. While looking at the front of the welding helmet, grasp the outside edge of the protection plate and
pull out to release the tabs. (Fig. 7b).
G5-02
G5-02
Printed Colors – Front:
Requester: Farrel Allen
Creator: deZinnia_26274
File Name: 26274-01_G5-02_GrdShieldRmvl_PSD.ai
Structure #: Illustration
Date: 10/23/19
This artwork has been created as requested by 3M. 3M is responsible for the artwork
AS APPROVED and assumes full responsibility for its correctness.
Scale:
1 Inch
Fig. 7a
Fig. 7b
