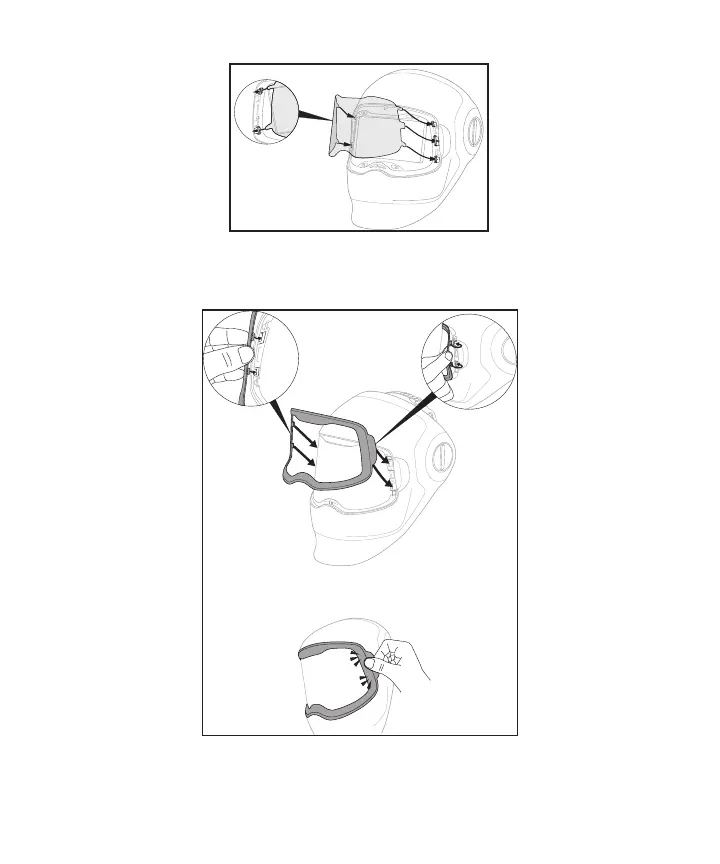

c. To reinstall a new protection plate, hook the tabs into their slots on the welding helmet (Fig. 8).
G5-02
d. To reinstall the protection front cover, place it over the protection plate and snap it into place at all four
corners using rm, downward and outward pressure from your thumb or index nger (Fig. 9).
G5-02
G5-02
1.
2.
4. Welding Filter:
a. Remove the welding lter by sliding the locking mechanisms on the side up to the unlock position.
Then, lift on the bottom of the welding lter and carefully slide it out of the welding helmet (Fig. 10).
