4EVAC Loopdrive 4E-LDB - Loopdrive Indications

Loopdrive – User and installation manual
6
Ind icati on
Corresponding status
MODE indicator
BLUE continuous
Quiescent mode, system OK
BLUE fast
Service mode
BLUE slow
System rebooting
WHITE fast
Factory reset (started)
WHITE slow
Factory reset (done)
EARTH indicator
ORANGE fast
Earth fault (active)
ORANGE slow
Earth fault (memory)
OPEN indicator
ORANGE fast
Loop open (active)
ORANGE slow
Loop open (memory)
SHORT indicator
ORANGE fast
Loop short (active)
ORANGE slow
Loop short (memory)

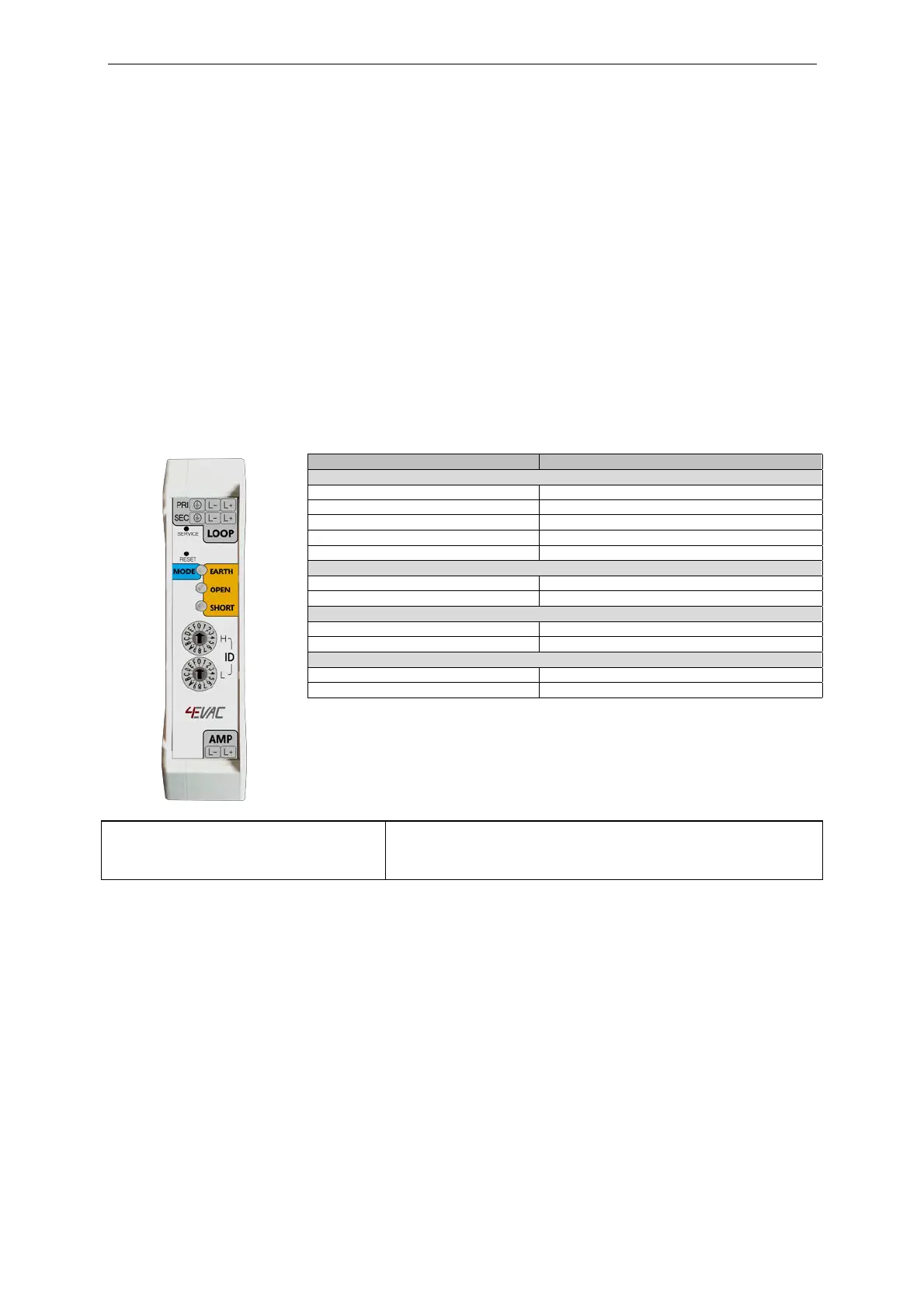

1.3. Loopdrive indications
Loopdrive modules feature multi-colour LED indicators with different colour and blinking cycles, which correspond to
currently detected state of the loudspeaker line.
General principle of LED indications:
BLUE – system OK
ORANGE – fault detected
Fault detection is always indicated by cyclic blinking. Blinking speed relates to the current status of the fault:
ORANGE fast (4 cycles/sec) – fault is currently detected
ORANGE slow (1 cycle/sec) – fault was detected in the past and fixed
Table 1. LDB indications
Blinking speed:
fast = 4 blinks/s
slow = 1 blink/s
very slow = 1 blink/4s
Fault status:
active - fault is currently detected
memory - fault was detected in the past and fixed
