Loopdrive – User and installation manual
13

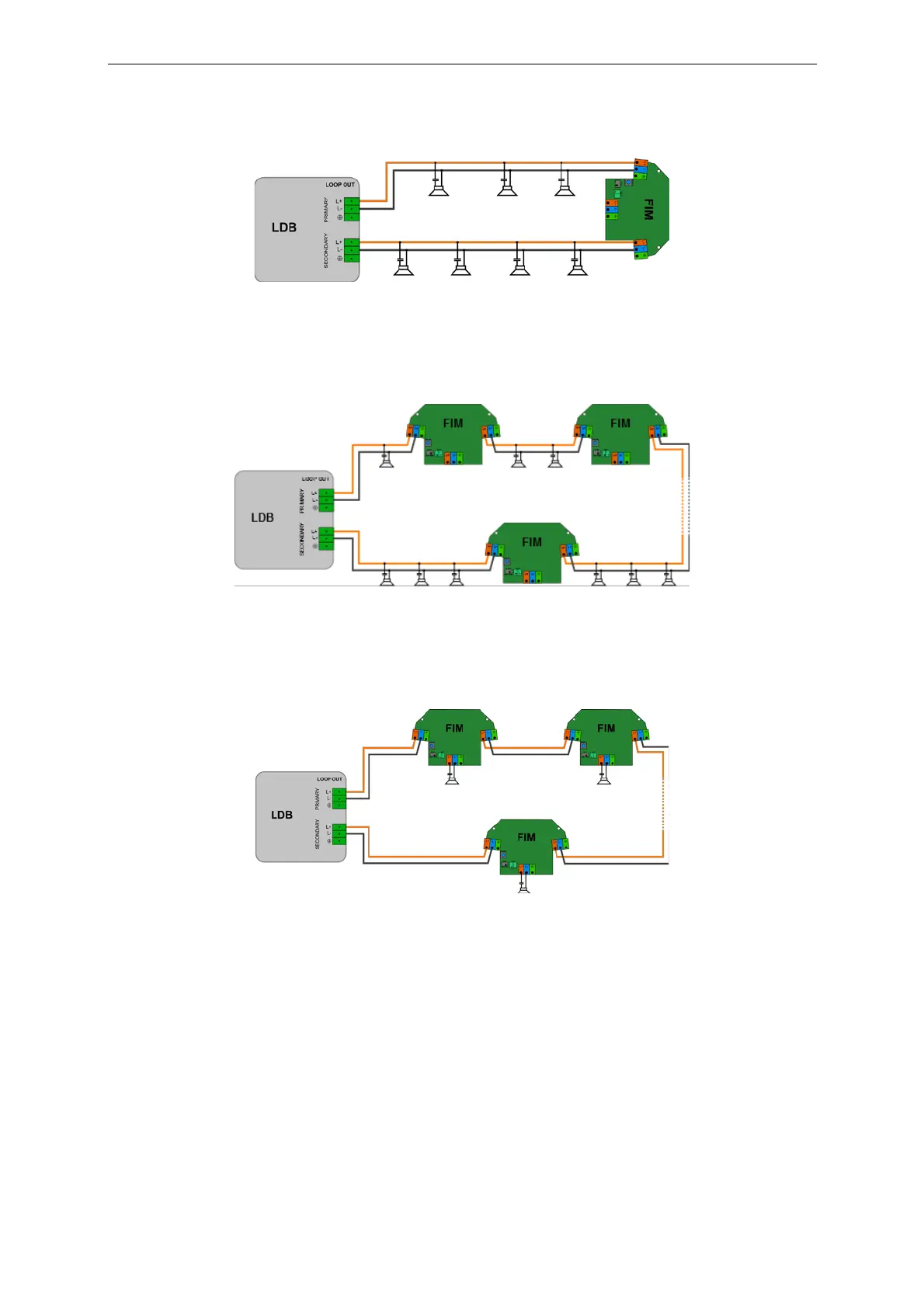

2.4. Examples of Loopdrive installations
Picture 12. Minimum configuration - equivalent to A/B line.
Picture 13. Speakers only on the loop.
Picture 14. One FIM per each speaker.
