Page 28
To be given a usage description: from a command window, type
java -jar Waveform.jar
To display a waveform stored in file <file name>: from a command window, type
java -jar Waveform.jar <file name>

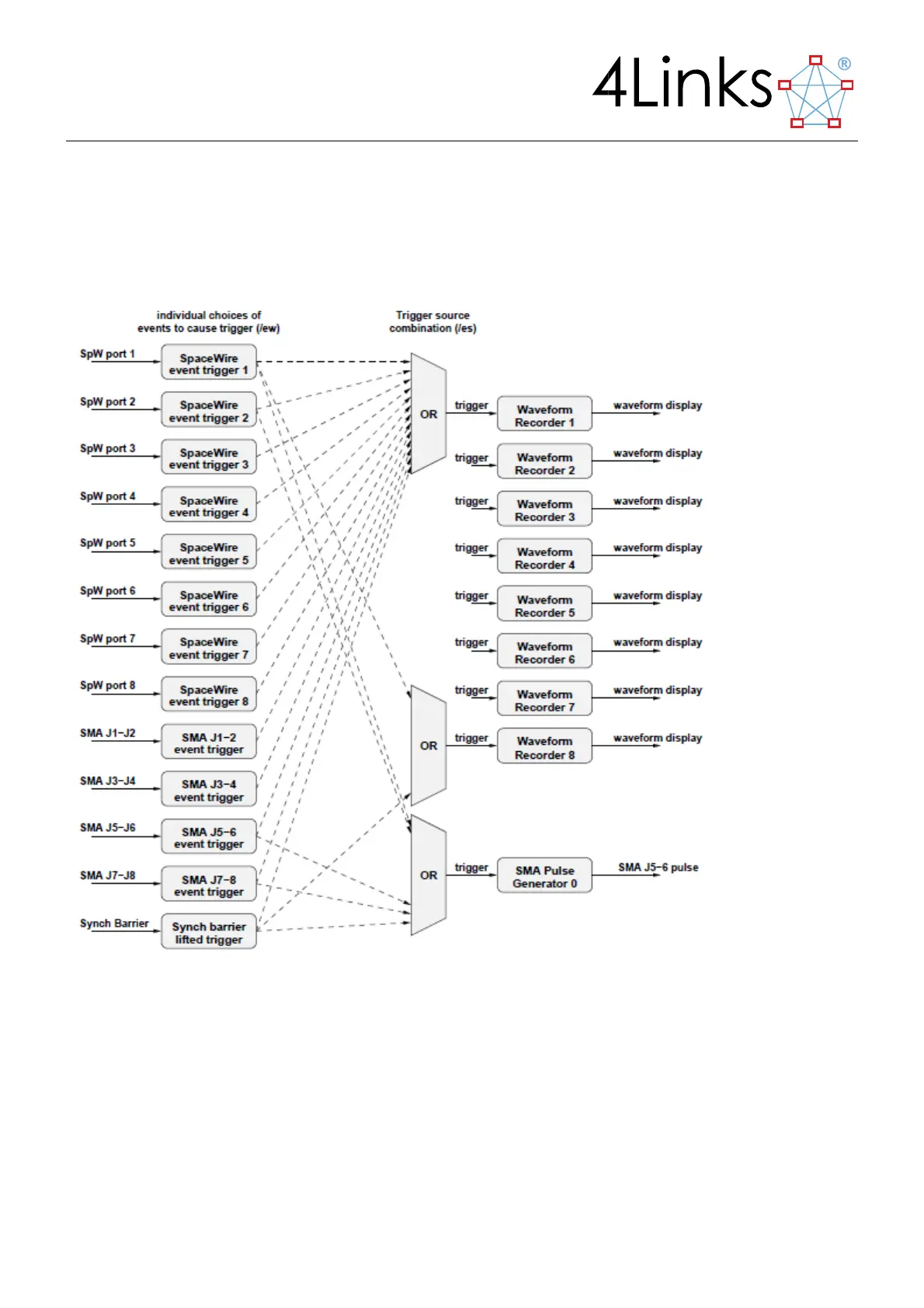

The operation of the Event / Error Waveform option is shown in Figure 11-2
FIGURE 11-2 OPTION EW TRIGGERING WAVEFORM CAPTURE AND EXTERNAL SIGNALS
Selected events on the SpaceWire ports, as well as trigger inputs on the rear-mounted SMA connectors and the
lifting of the Synchronised Outputs barrier, create triggers that may be used by eight waveform recorders and an
SMA pulse generator. Notice that the SMA connectors are only installed on hardware platforms with the “-S”
