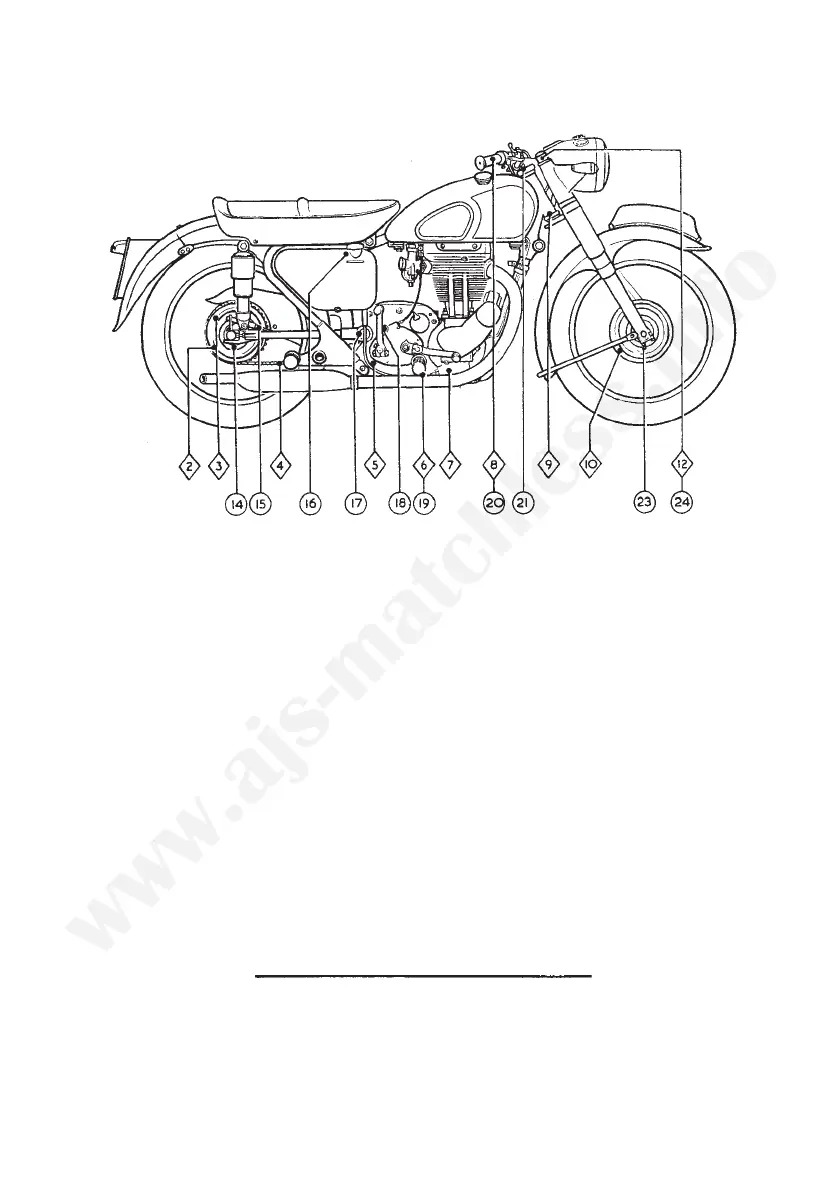

LUBRICATION CHART
The figures in diamond frames refer to parts located on the left hand side of the machine
and those in circles refer to parts located on the right hand side.
Illustration 6
Engine O i l Locations
MAIN OIL TANK.
FRONT CHAINCASE.
CONTROL LEVER MOVING PARTS.
BRAKE ROD JOINTS.
CENTRE A N D PROP STAND HINGE PINS.
Hydraulic Fluid Locations
FRONT TELEDRAULIC FORKS.
Heavy Engine Oil Location
GEAR BOX.
23
14
21
9
15
10
3
5
17
4
Grease Locations
FRONT HUB.
REAR HUB.
STEERING HEAD TOP BEARING.
STEERING HEAD BOTTOM BEARING.
SPEEDOMETER GEAR BOX.
FRONT BRAKE EXPANDER.
REAR BRAKE EXPANDER.
BRAKE PEDAL SPINDLE.
Heavy Gear Oil Location
REAR FORK HINGE. S.A.E. 140
Molten Grease Location
REAR CHAIN.
Lubrication Chart
16
7
8
20
2
6
19
12
24
18
When buying oils and greases it is advisable to specify the Brand as well as the grade
and, as an additional precaution, to buy only in sealed containers or from branded
cabinets.
}
}
}
21
