A.J.S. 16MS - ENGINE SERVICE

ENGINE SERVICE
ACCESS
For almost all service work to the upper parts of the engine, it is necessary, in order to
obtain accessibility, first, to remove the petrol tank. The two petrol taps facilitate
this operation by removing the need to first drain the tank of petrol.

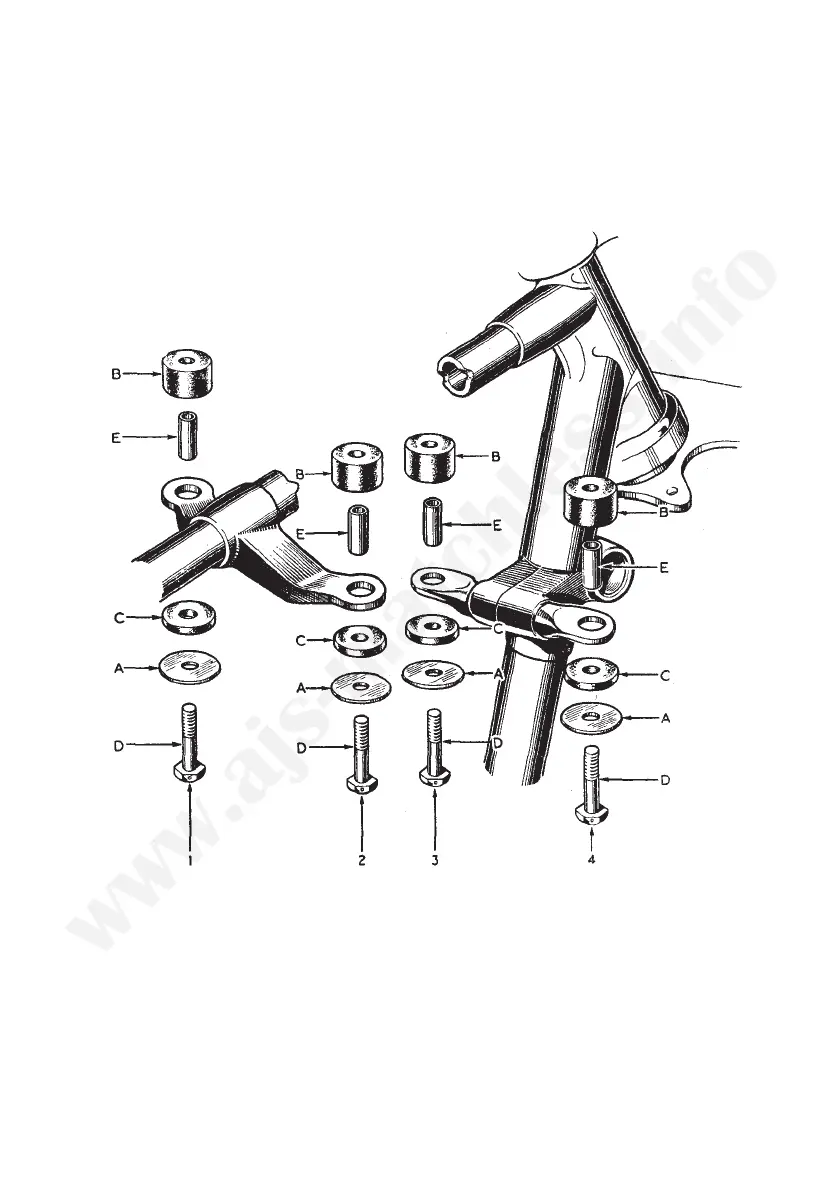

Details and order of assembly of the fuel tank fixing bolts and components
Illustration 7
A
B
C
D
E
Part Number
METAL WASHER 014999
THICK RUBBER PAD 014995
T
HIN RUBBER PAD 014996
TANK FIXING BOLT 014997
SLEEVE FOR FIXING BOLT
1¼" diameter.
s" high.
x" high.
1¼ x c" x 26.
," long.
…
…
…
…
…
… … … … … …
… … … … … …
… … … … … …
… … … … … …
… … … … …
014998
