510 Indoor / 510 Outdoor Service Manual
Ver. 1.00
33

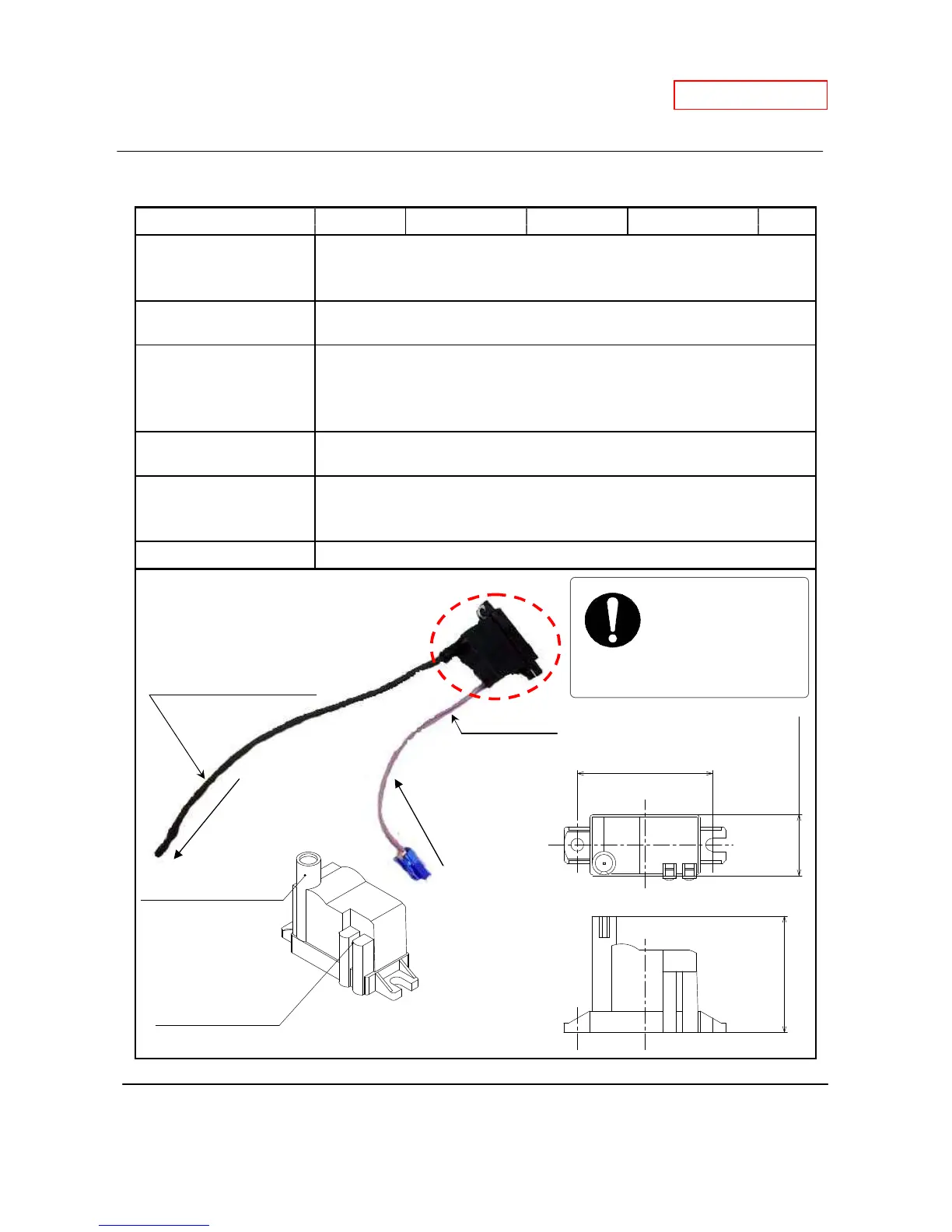

10-17. Igniter
Unit Part # #711 AOS Part # 319143-052
Checkpoint B
Function
-To ignite the gas/air mixtures when the water heater is ready to burn gas on
its burner surface.
-The output voltage of the igniter is more than 14 kVDC.
Failure events
1. Unable to ignite during the ignition process.
2. Makes attempts to ignite at all times.
Effects on the water
heater if the igniter fails
1. The water heater cannot ignite during the ignition process and the "111”
or “121” error codes will display.
2. No effects on the water heater, however, the durability of the igniter
Error codes when Igniter
fails
111 121
Diagnostic
1. Visual inspection: connection/breakage of wires and/or an observed weak
spark.
2. Check voltages: proper range of values shown below.
Color/Number of wires Purple(7)-Purple(7) 90 to 110 VAC
Purple wire
High-voltage igniter cable
90 to 110 VAC
Igniter
14 kVDC
Power supply
AC 90 to 110V
To High valtage
ignite cable
1-3/4" (44mm)
3/4" (20mm)
1-1/2" (38mm)
The high-voltage igniter
cable and the purple
wires do not come with
319143-052.
To Next Page
