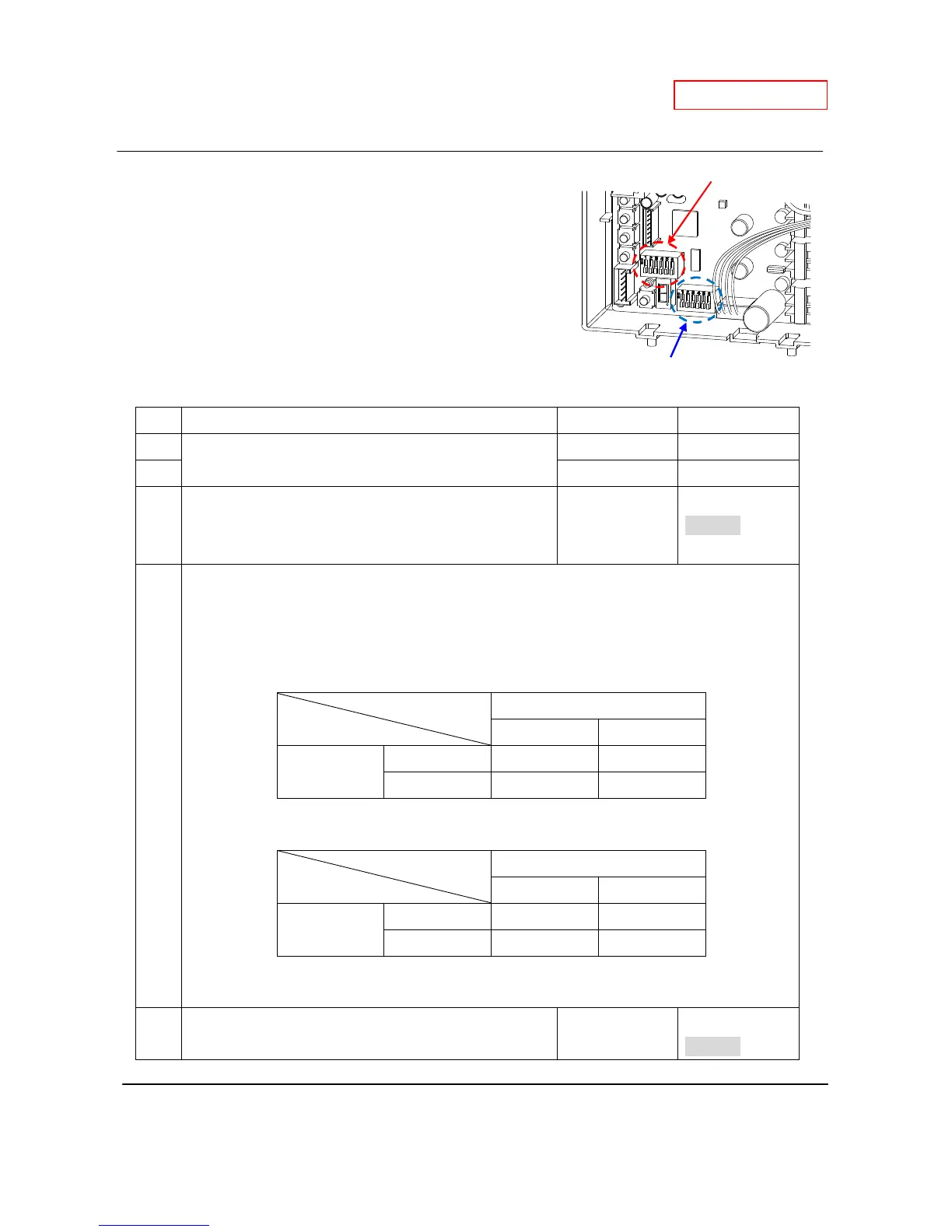

12-5. Dipswitch settings
The 510 Indoor shares the computer board with the 510 Outdoor.
There are two banks of dipswitches (upper and lower bank) on the
computer board. The upper bank has certain special functions as
shown on the following table and generally should not need
adjustment. Carefully verify the functions of each dipswitch before
changing any settings.
The functions of the upper bank of dipswitches
No. Functions ON position OFF position
1 Gas type Propane Disable
2 Natural gas Disable
3 Allow adjustments of fan motor speed
(Changing the FM speed is similar to changing the
manifold pressure. See section 12-13)
Enable Disable
(Default)
4
5
FM+, FM++ and FM+++
(FM speed is increased automatically. See section 12-10)
510 Indoor
No. 4
OFF position ON position
No. 5
OFF position 0 % +6 %
ON position +12 % +18 %
510 Outdoor
No. 5
OFF position ON position
No. 6
OFF position 0 % +4 %
ON position +8 % +12 %
6 N/A N/A N/A
(Default)
Upper bank of dipswitches
Lower bank of dipswitches
