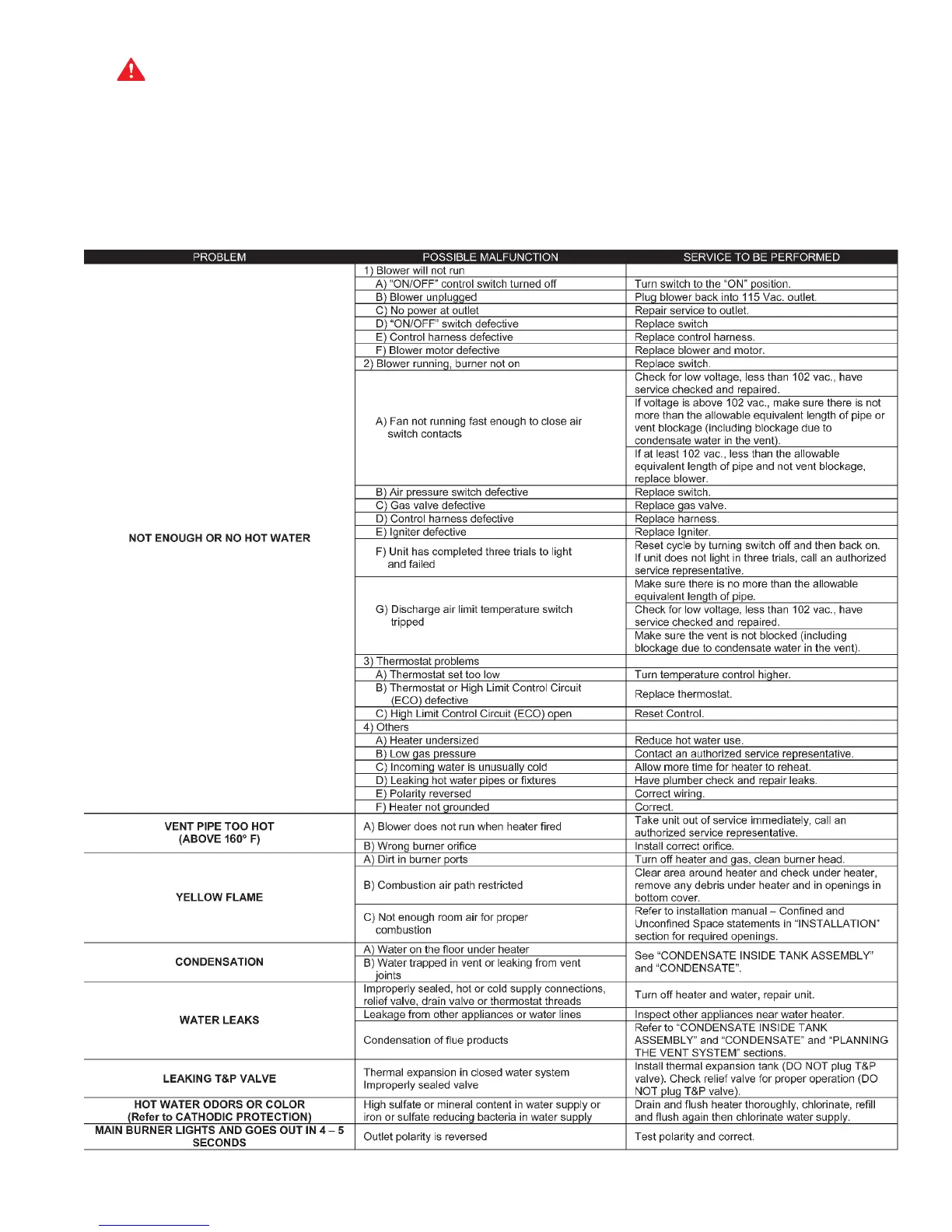

21
TROUBLESHOOTING
For your safety
, water heater service should be performed only by a qualified service technician.
Read the GENERAL SAFETY
INFORMA
TION section first.
W
ARNING: DO NOT BY
-PASS
ANY CONTROLS TO
MAKE HEA
TER OPERA
TE. OPERA
TE ONL
Y AS WIRED FROM F
ACTOR
Y
.
20
22
Table of Contents
Rough-In Dimensions
2
Replacement Parts and Deliming Products
3
Typical Installation
3
General Safety Information
4
Installation
5
Connection of Gas Pipe
7
Relief Valve
7
Vent Pipe Assembly
8
Planning the Vent System
8
Vent Pipe Termination
8
Preparation of Blower Assembly
9
Installation of Vent System
10
Vent Terminal Installation, Sidewall
10
Installation of Vent System, Sidewall
12
Installation of Vertical Vent System
12
Vent Attenuation Assembly Installation Instructions
13
Vent Attenuation Assembly Kit Parts List
13
Selection of Materials
15
Operation
16
To Operate the Heater
16
For Your Safety Read before Lighting
17
What to Do if You Smell Gas
17
To Turn off Gas to Appliance
17
Operating Instructions
17
Temperature Regulation
18
Maintenance
18
Extended Non-Use Periods)
20
Service and Repair
20
Led Status
22
Troubleshooting Guide
22
Trouble Shooting
22
Limited Warranty
23
5
Based on 1 rating
