2
(A) VENT PIPE
(B) ANODE
(C) HOT WATER OUTLET
(D) OUTLET (120 VAC)
(E) FLUE BAFFLE
(F) GAS SUPPLY
(G) MAIN MANUAL GAS
SHUT OFF VALVE
(H) GROUND JOINT UNION
(J) DIRT LEG
(K) OUTER DOOR
(L) UNION
(M) INLET WATER SHUT
OFF VALVE
(N) COLD WATER INLET
*CAUTION HARNESS HAS 115 VAC. IN OPERATION
FIGURE 1
REPLACEMENT PARTS AND DELIMING PRODUCTS
Replacement parts and recommended delimer may be ordered
through authorized servicers or distributors. Refer to the Yellow
Pages for your plumber or contact the water heater manufacturer
by calling 1-800-821-2017. When ordering parts, provide
complete model and serial numbers (see rating plate), quantity
and name of part desired (as listed in fig. 1). Standard hardware
items may be purchased locally.

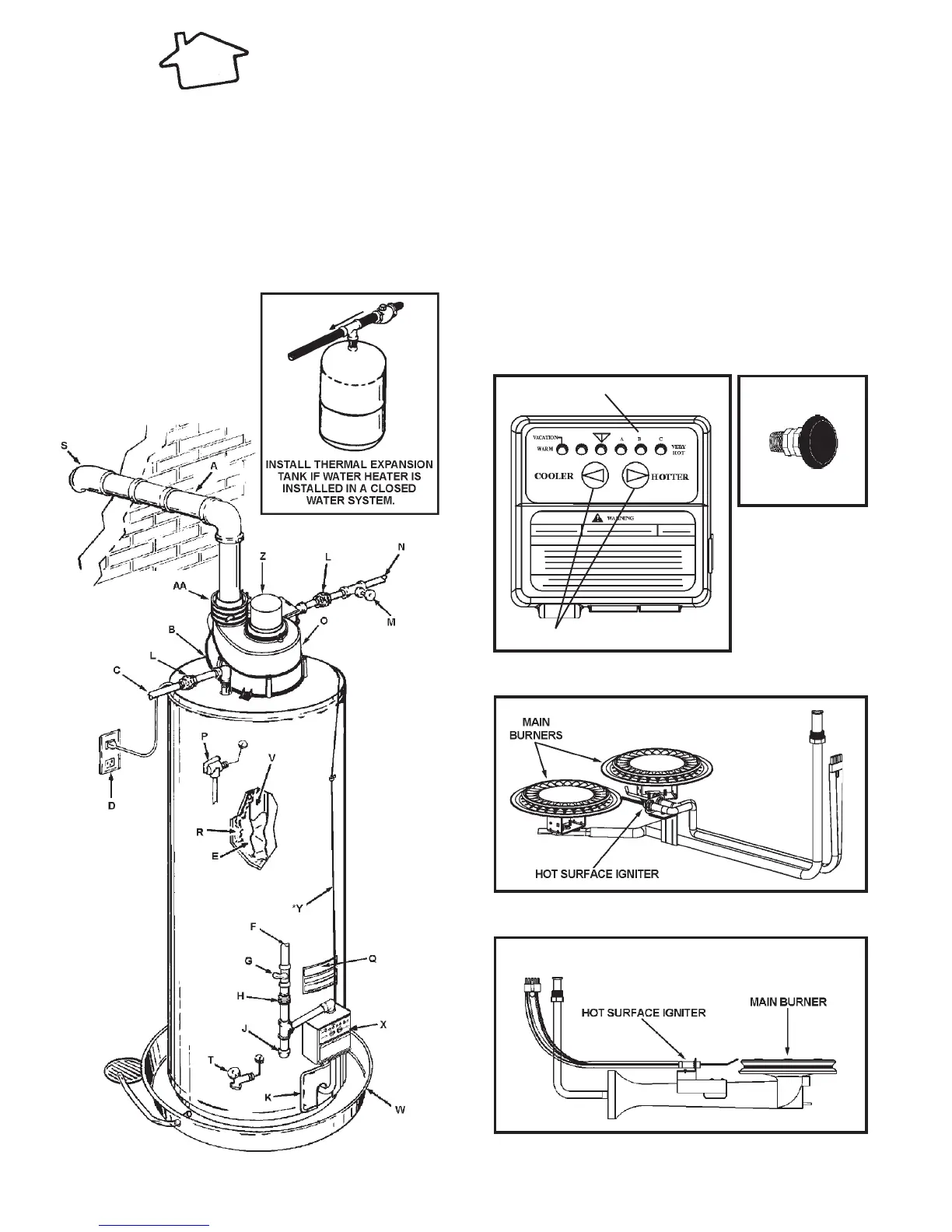

GET TO KNOW YOUR WATER HEATER
(O) INLET DIP TUBE
(P) TEMPERATURE AND
PRESSURE RELIEF VALVE
(Q) RATING PLATE
(R) INSULATION
(S) VENT TERMINAL
(T) DRAIN VALVE
(U) IGNITER AND MAIN
BURNER
(V) FLUE
(W) DRAIN PAN
(X) CONTROL
(Y) CONTROL HARNESS*
(Z) MOTOR & BLOWER
(AA) CONDENSATE FITTING
TEMPERATURE ADJUSTMENT BUTTONS
TEMPERATURE INDICATORS
VACUUM RELIEF
VALV E
*INSTALL PER
LOCAL CODES
(U) NATURAL GAS MAIN BURNER
WITH IGNITER ASSEMBLY
(U) PROPANE GAS MAIN BURNER
WITH IGNITER ASSEMBLY
(SIDE VIEW)
To Next Page
