5
DIMENSIONS AND CAPACITIES DATA
TABLE 2 - RECOVERY CAPACITIES
Element
Wattage
(Upper/Lower)
INPUT
KW
U.S. Gallons/Hr and Litres/Hr at TEMPERATURE RISE INDICATED
F° 36F° 40F° 54F° 60F° 72F° 80F° 90F° 100F° 108F° 120F° 126F°
C° 20C° 22.2C° 30C° 33.3C° 40C° 44.4C° 50C° 55.5C° 60C° 66.6C° 70C°
NON-SIMULATANEOUS
3000/3000 GPH 34 30 23 20 17 15 14 12 11 10 10
3.0 LPH 128 115 85 77 64 58 51 46 43 38 37
4000/4000 GPH 45 41 30 27 23 20 18 16 15 14 13
4.0 LPH 170 153 114 102 85 77 68 61 57 51 49
4500/4500 GPH 51 46 34 30 25 23 20 18 17 15 14
4.5 LPH 192 173 128 115 96 86 77 69 64 58 55
5000/5000 GPH 56 51 38 34 28 25 23 20 19 17 16
5.0 LPH 213 192 142 128 107 96 85 77 71 64 61
SIMULATANEOUS OPERATION
3000/3000 GPH 68 61 45 41 34 30 27 24 23 20 19
6 LPH 256 230 170 153 128 115 102 92 85 77 73
4000/4000 GPH 90 81 60 54 45 41 36 32 30 27 26
8 LPH 341 307 227 205 170 153 136 123 114 102 97
4500/4500 GPH 101 91 68 61 51 46 41 36 34 30 29
9 LPH 384 345 256 230 192 173 153 138 128 115 110
5000/5000 GPH 113 101 75 68 56 51 45 41 38 34 32
10 LPH 426 384 284 256 213 192 170 153 142 128 122
Recovery capacities at 100° F rise equal: for non-simultaneous element operation = 4.1 gal. x KW of one element; for simultaneous element operation = 4.1 gal. x 2/3 KW of
both elements. For other rises multiply element KW as previously explained by 410 and divide by temperature rise. Full load current for single phase = total watts : voltage.
TABLE 1 - ROUGH-IN DIMENSIONS
Capacity A B C
Approx.
Shipping Weight
US Gals. Litres Inches cm Inches cm Inches cm Lbs. Kg.
66 250 60.13 153 52.75 134 22 56 146 66.22
80 303 60.50 154 52.25 133 24 61 174 78.93
119 450 61.38 156 54.38 138 28 71 268 121.56

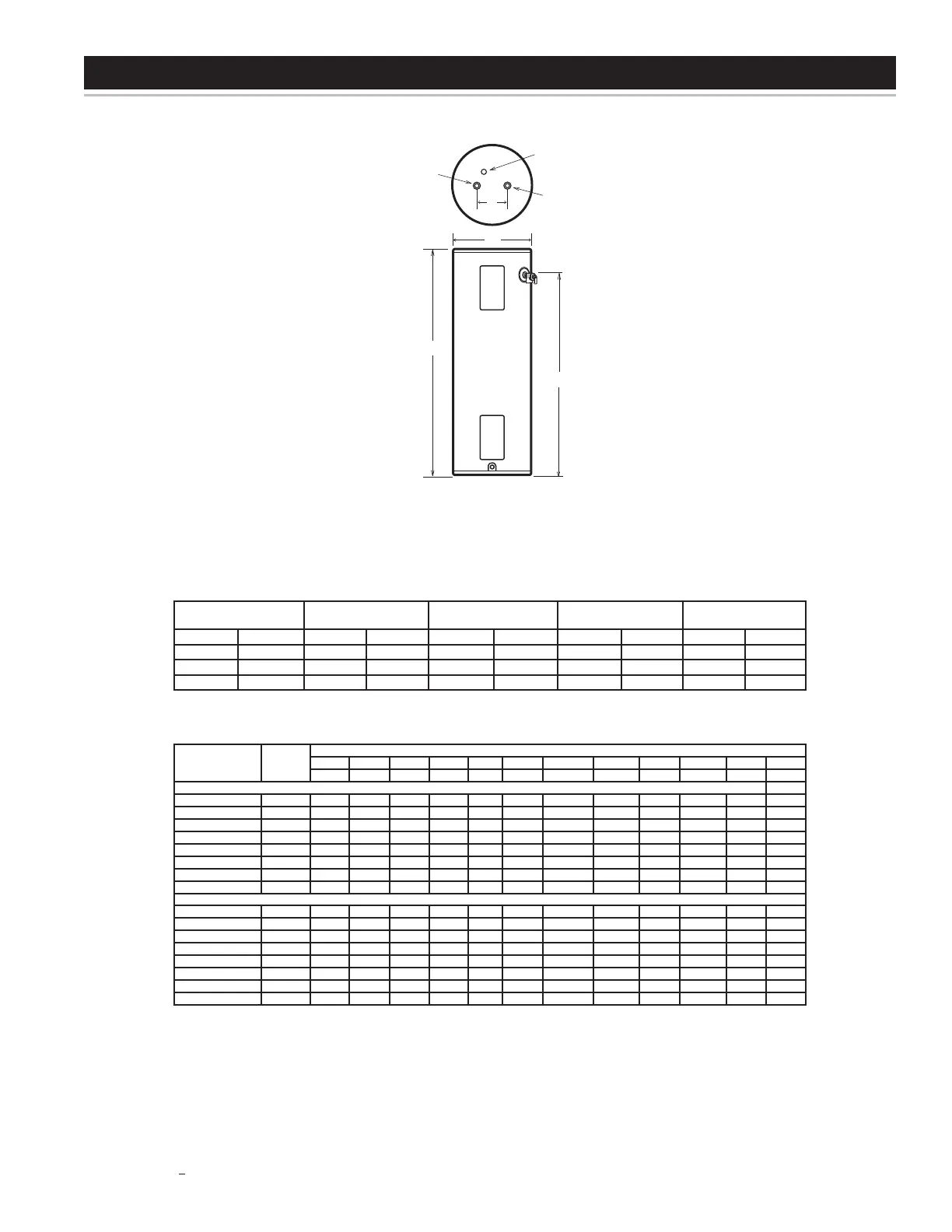

FIGURE 1
A
B
C
8"
HOT
CONNECTION
ANODE
ROD
COLD
CONNECTION
