A.O. Smith PHPT-60 - Section B of Control Board; RY 203 Upper Element Relay Operation; CN 203 Powered Anode Connection

16
RY 203 Upper Element Relay:
• Terminal 1 - COM Connects to L1 behind the ECO Switch.
• Terminal 2 - NO Connects to the upper heating element.
CN 203 Powered Anode:
• Pin 1 - Powered anode signal
• Pin 2 - Ground

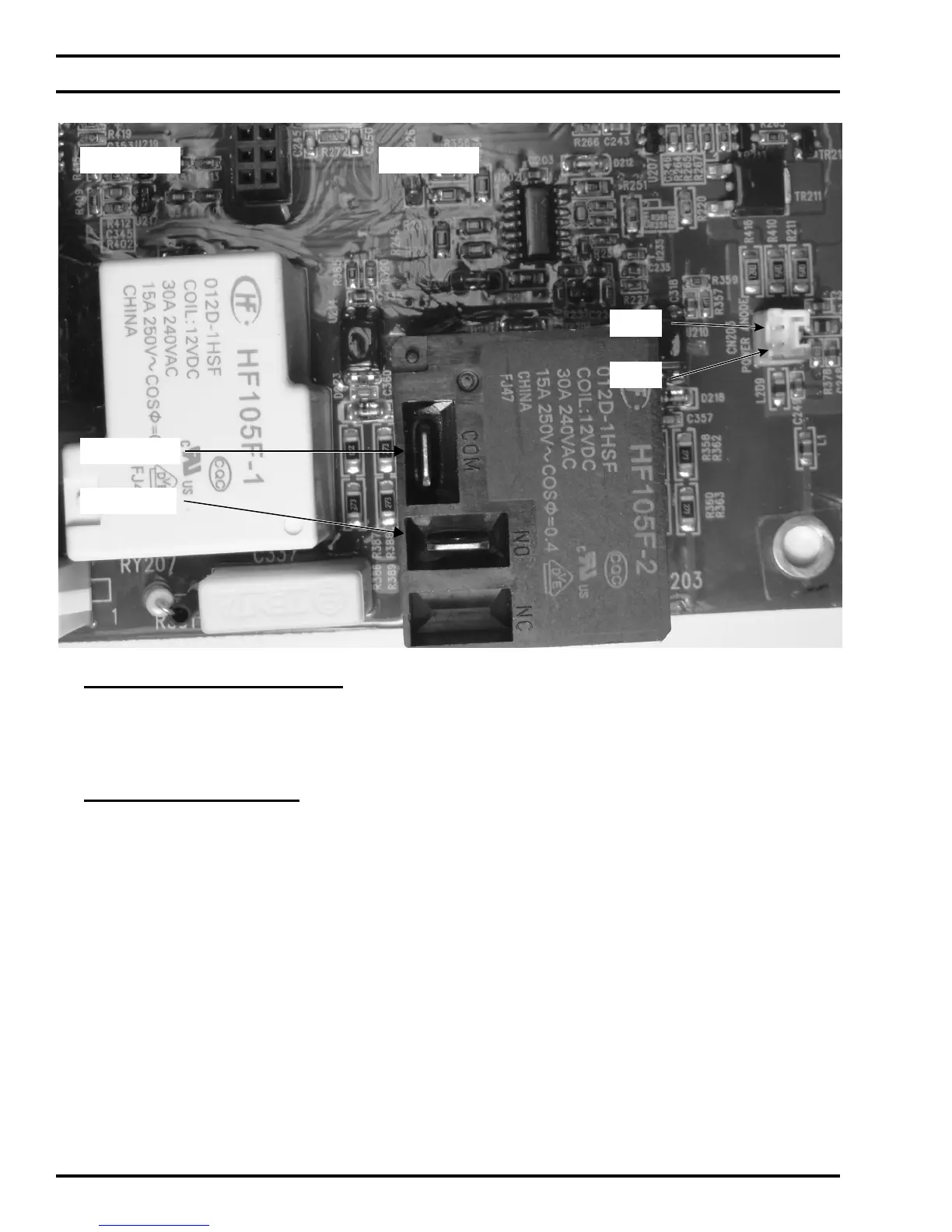

Figure 7
Terminal 1
Terminal 2
Pin 2
Pin 1
Section “B”
Section “B” of Control Board
