T-D2-IN / T-D2-OS Service Manual
Ver. 1.00
14
CONFIDENTIAL

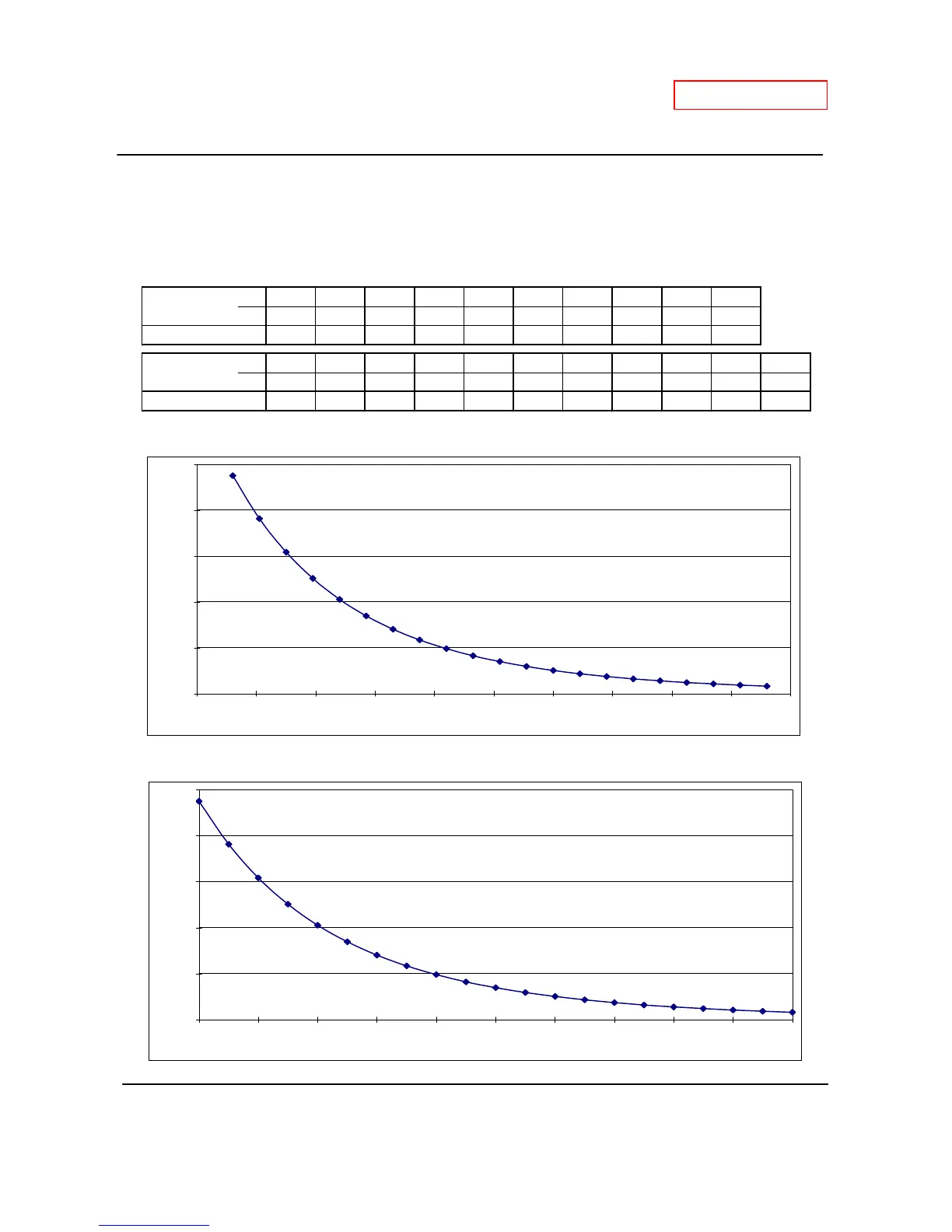

8. Resistance values of the temperature thermistors
The T-D2-IN and T-D2-OS use the same thermistors.
Resistance values at different temperatures
ºF 32 41 50 59 68 77 86 95 104 113
ºC 0 5 10 15 20 25 30 35 40 45
Resistance kΩ 23.76 19.08 15.43 12.56 10.28 8.47 7.02 5.85 4.90 4.12
Temperature ºF 122 131 140 149 158 167 176 185 194 203 212
ºC 50 55 60 65 70 75 80 85 90 95 100
Resistance kΩ 3.49 2.96 2.53 2.16 1.86 1.60 1.39 1.21 1.05 0.92 0.81
Temperature(ºF) vs. Resistance(kΩ)
Temperature(
℃
)
vs. Resistance(kΩ)
Temperature
0.00
5.00
10.00
15.00
20.00
25.00
20 40 60 80 100 120 140 160 180 200 220
Temperature (ºF)
Resisitance (kΩ)
0.00
5.00
10.00
15.00
20.00
25.00
0 10 20 30 40 50 60 70 80 90 100
Temperature (ºC)
Resisitance (kΩ)
