< For multiple units in an Easy-Link system >
1. Press and hold the "HOT" and "COLD" buttons simultaneously for at least 5 seconds to enter
“Diagnostics Mode”.

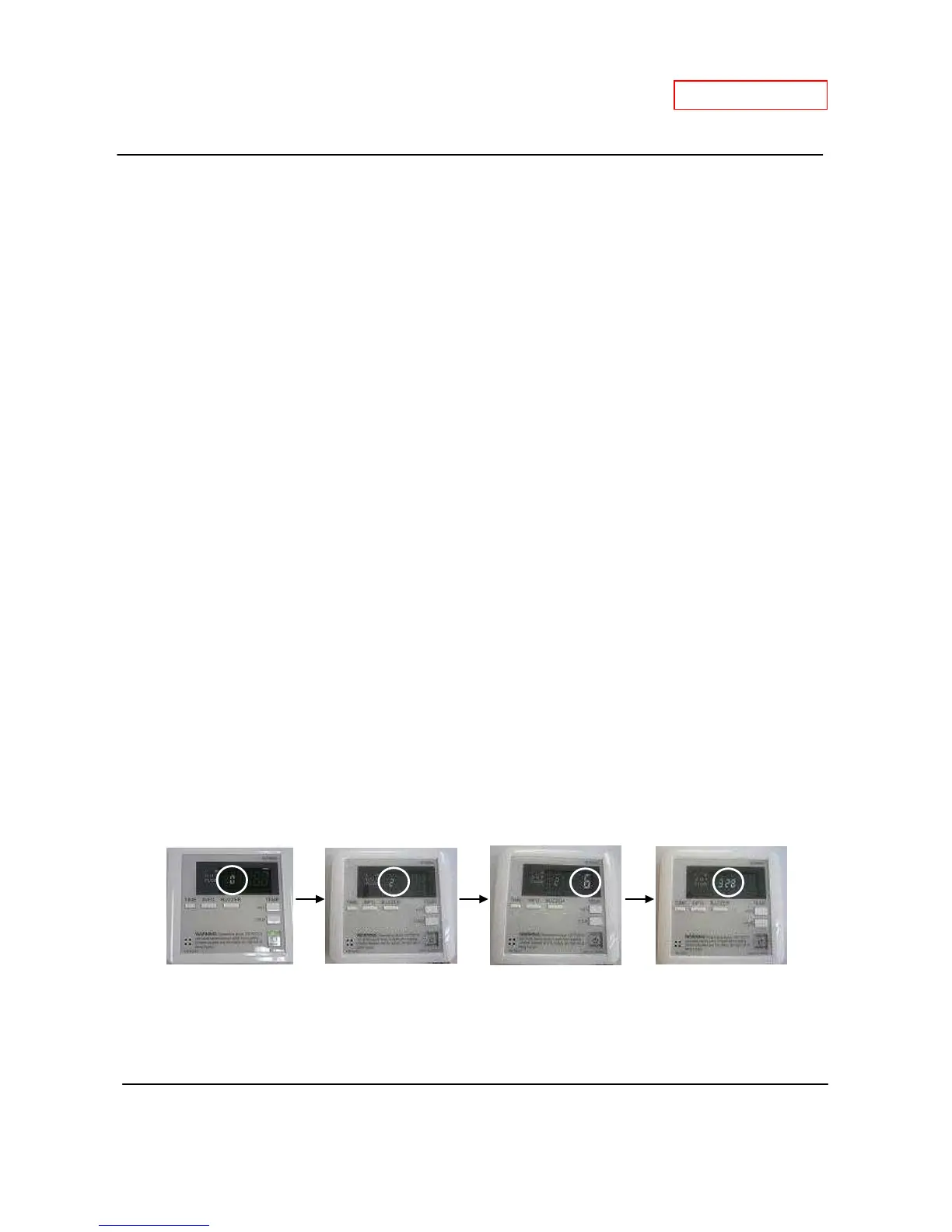

2. "0" will be displayed on the TM-RE30. (See Fig. 1)
3. Scroll to the desired T-D2-IN or T-D2-OS unit # in the easy-link system by pressing the "HOT" or the
"COLD" buttons to scroll up or down. (Fig. 2 shows that unit #2 is being selecting)
NOTE: The definition of the unit #’s:
“0” will yield information about the Easy-link system as a whole, and numbers “1”,
“2”, “3”, & ”4” will yield information about each of the individual T-D2-IN or
T-D2-OS installed in the Easy-link system.
In an Easy-link system of T-D2-IN or T-D2-OS, a maximum of four units of the
T-D2-IN or T-D2-OS’s can be linked together.
4. Press the “INFO” button to select the desired unit #.
5. When the desired unit # is selected and fixed, scroll up or down to the needed information (mode #)
of the unit by pressing the “HOT” or “COLD” buttons.
(Fig.3 shows mode #6 is being selected.) When selecting information, please refer to the table on
p.48 for the proper mode #.
6. Press the “INFO” button to select the mode #, and information to which the mode # correlates to will
display on the TM-RE30. (Fig. 4)
7. When the “ON/OFF” button is pressed or 5 minutes have elapsed without pressing any buttons, the
display will return to normal.
