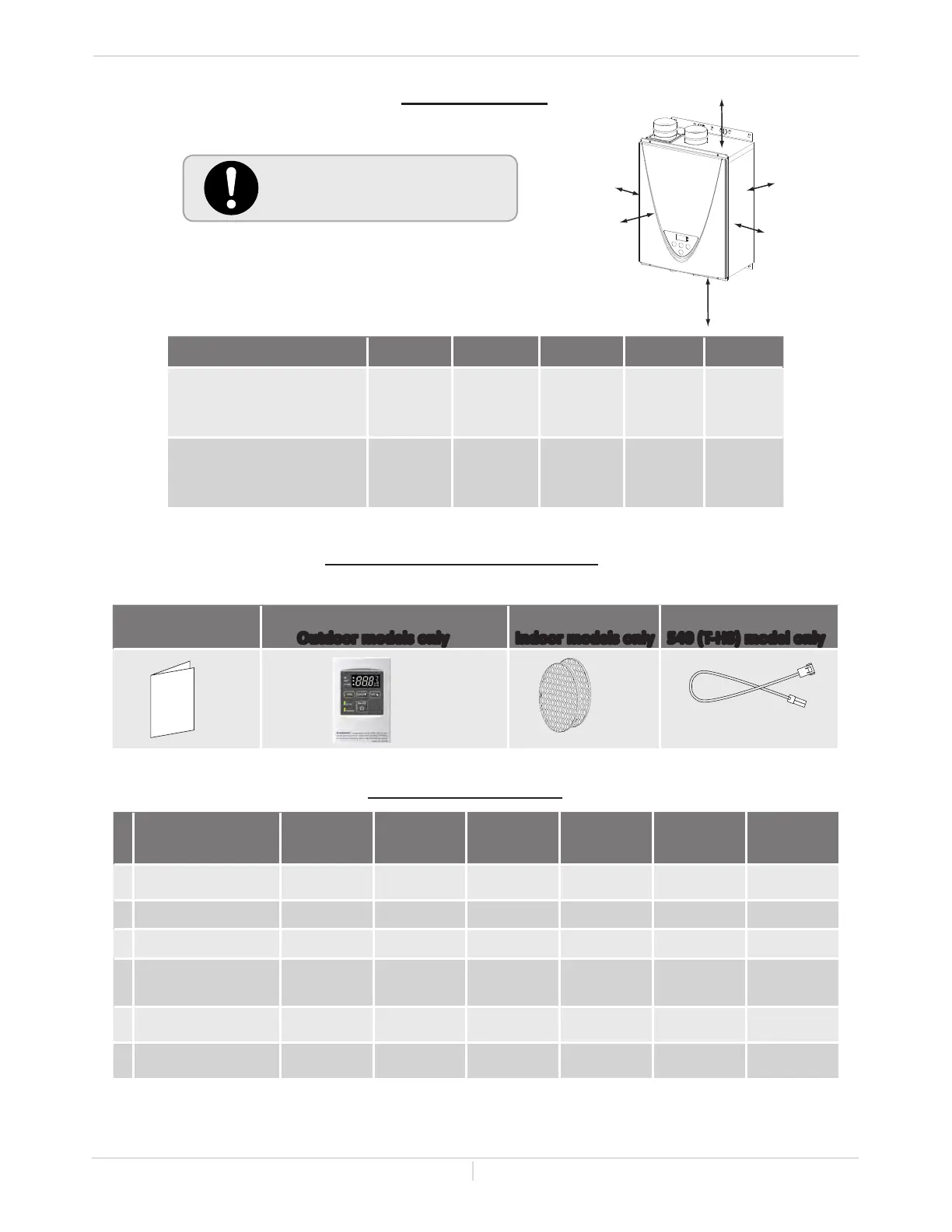

Maintain all clearances around
the water heater.
CLEARANCES
Installaon
Installaon Manual
Model Top Bottom Front Back Sides
240 Indoor (T-H3J-DV)
340 Indoor (T-H3S-DV)
540Indoor(T-H3-DV)
12in.
(305mm)
12in.
(305mm)
4 in.*
(102mm)
0.5in.
(13mm)
2 in.
(51mm)
240 Outdoor (T-H3J-OS)
340 Outdoor (T-H3S-OS)
540Outdoor(T-H3-OS)
36in.
(914mm)
12in.
(305mm)
24 in.
(610mm)
0.5in.
(13mm)
2 in.
(51mm)
*24 inches recommended for maintenance.
OPTIONAL ITEMS
Back
Side
Front
Side
Top
Boom
INCLUDED ACCESSORIES
Check that these items below are included with the water heater.
Installation manual
and owner’s guide
Temperature remote controller kit*
Outdoor models only
Bird screen
Indoor models only
Communication cable
540 (T-H3) model only
Qty:1
Qty:1
Qty:1
*Refertop.31.
Qty: 2
#
Model
240
Indoor
(T-H3J-DV)
240
Outdoor
(T-H3J-OS)
340
Indoor
(T-H3S-DV)
340
Outdoor
(T-H3S-OS)
540
Indoor
(T-H3-DV)
540
Outdoor
(T-H3-OS)
1.
Temperature remote
controller
✓ ✓ ✓ ✓ ✓ ✓
2.
Pipe cover
✓ ✓ ✓ ✓ ✓ ✓
3.
Neutralizer kit
✓ ✓ ✓ ✓ ✓ ✓
4.
Sidewall vent
terminator (Hood)
and Wall thimble
✓ ✓ ✓
5.
3" PVC concentric
termination
✓ ✓ ✓
6.
Non-return valve
✓ ✓ ✓
