A.O. Smith Z2 - Installation Overview

Figure 1
05
 Stage 4 – RO (Reverse Osmosis) membrane
RO membrane contains semi-permeable membrane wherein the water is passed
through the semi-permeable membrane to remove TDS (Total Dissolved Solids) and
heavy metals like mercury, arsenic, lead, chromium, cadmium etc. It also removes
microorganisms like bacteria, virus, protozoa and cysts.
 Stage 5 –
Silver Activated Post Carbon
Water is passed through Silver Activated Post Carbon which acts as polisher and
enhances the taste of water.
Note: The Pre-filter, Ball valve and Gooseneck faucet comes along with the product as
standard accessories.
1
3
5
2
12
3
4
8
To drain
7
6
5
LED Display Panel Indicators
1
3 5
2

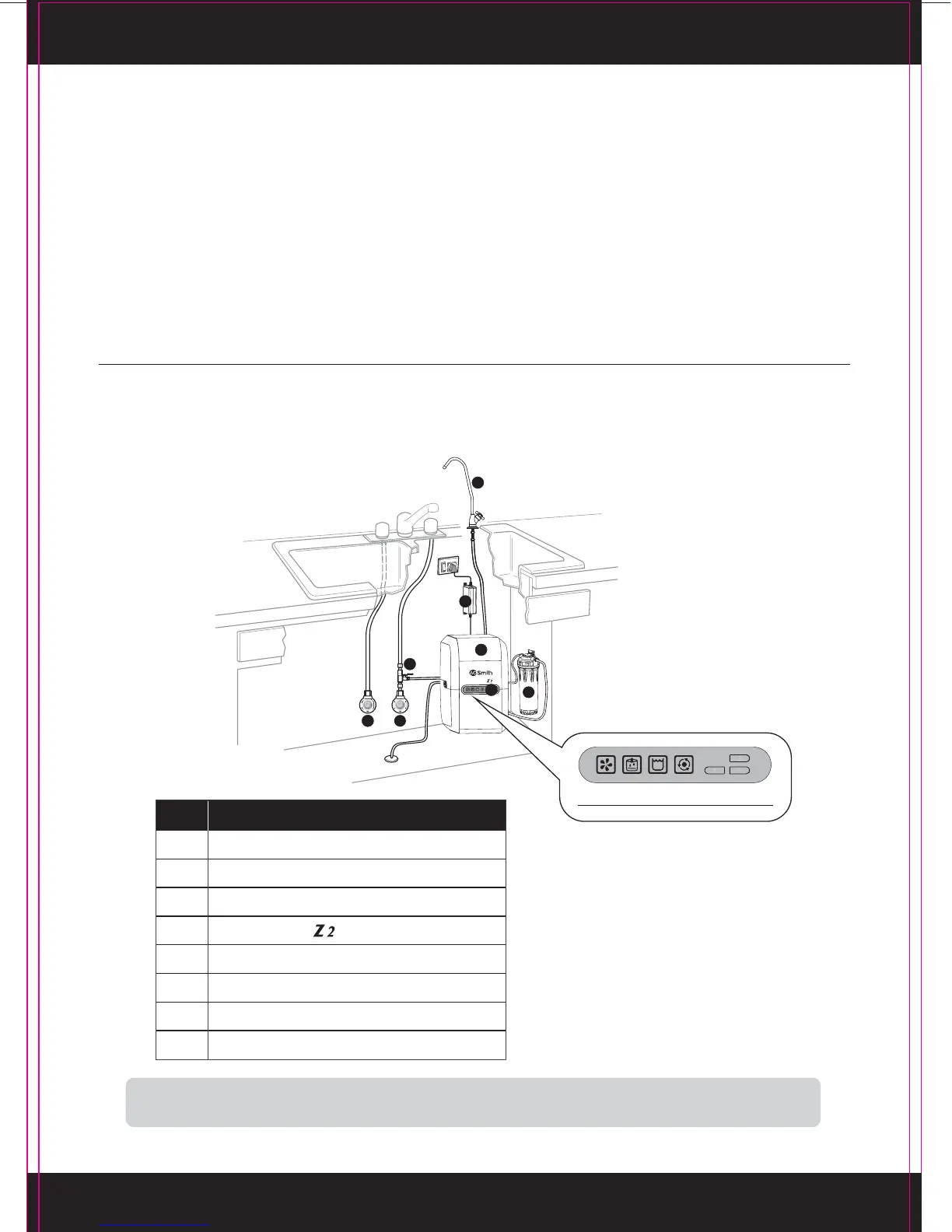

Installation Overview
Part Description
1 Normal water supply
2 Hot water supply
3 Ball valve
4 Under Sink water purifier
5 LED display panel indicators
6 Pre-filter
7 Power adapter
8 Gooseneck faucet
