６−２ VoltageMeasurement
WARNING
● Do not make measurement on a circuit above 750V AC or 1000V
DC. This may cause shock hazard or damage to the instrument or
equipment under test.
●Do not make measurement with the battery compartment cover
removed.
●Keep your fingers and hands behind the barrier during measurement.

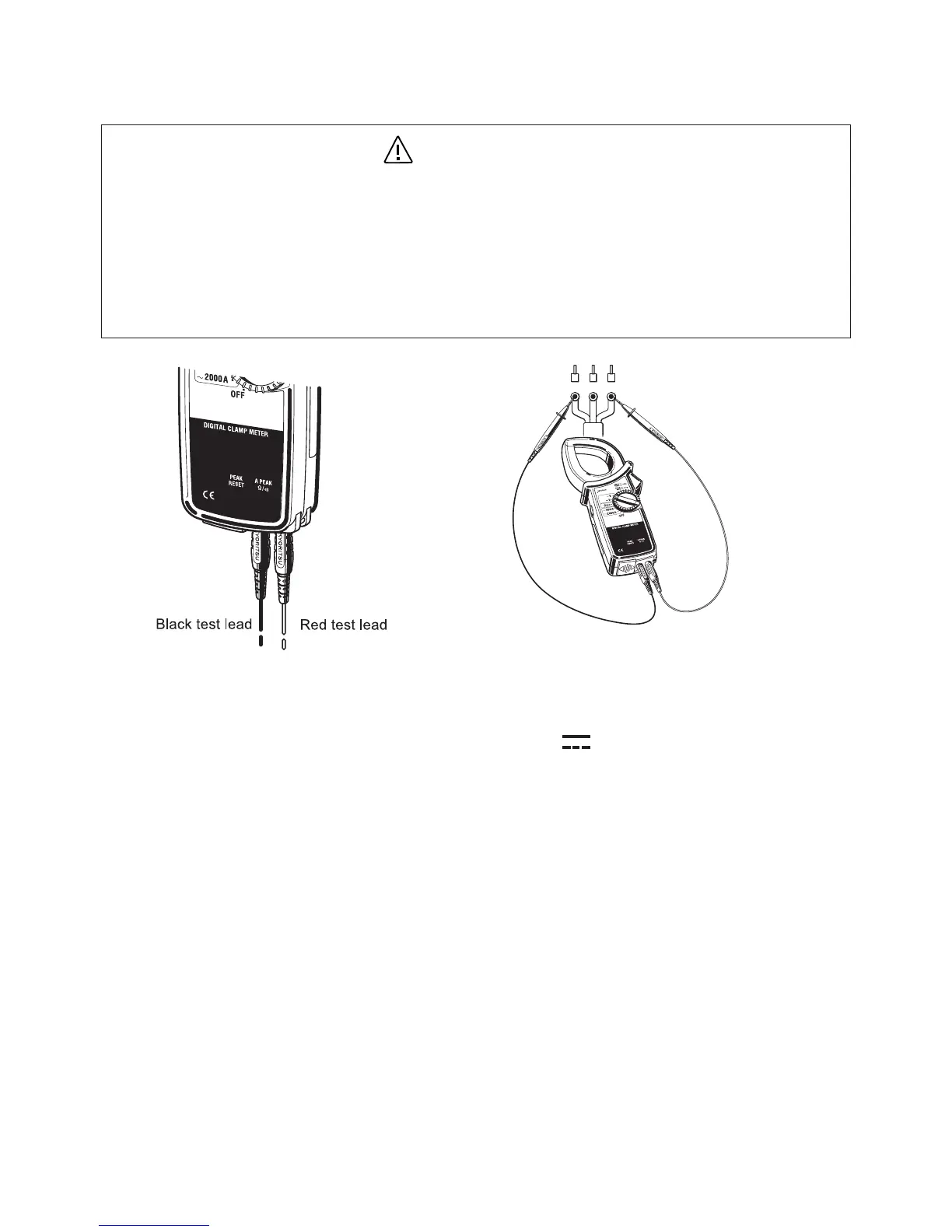

６−２−１ DCVoltageMeasurement
①Set the function selector switch to the " V" position.
②Slide the terminal cover to the left. Plug the red test lead into the V/Ω
terminal and the black test lead into the COM terminal.
③Connect the other end of the test leads to the circuit under test.
Take the reading on the display. When the red lead is the negative
potential, the "ー" sign is shown on the display.
６−２−２ ACVoltageMeasurement
①Set the function selector switch to the "〜V" position.
②Slide the terminal cover to the left. Plug the red test lead into the V/Ω
terminal and the black test lead into the COM terminal.
③Connect the other end of the test leads to the circuit under test. Take
the reading on the display.
NOTE
● For high sensitivity, there are parts which do not indicate "０".
