②To enable the sleep function, turn the function selector switch back
to "OFF", then to any other position.
NOTE
● The instrument consumes small amount of current in the sleep
mode. When the instrument is not in use, make sure to set the
function selector switch to "OFF".
７−３ RecorderOutput
Only on the "〜400A" or "〜2000A" range, DC voltage proportional
to the input current is output from the OUTPUT terminal.
①Set the function selector switch to the "〜400A" or "〜2000A"
position.

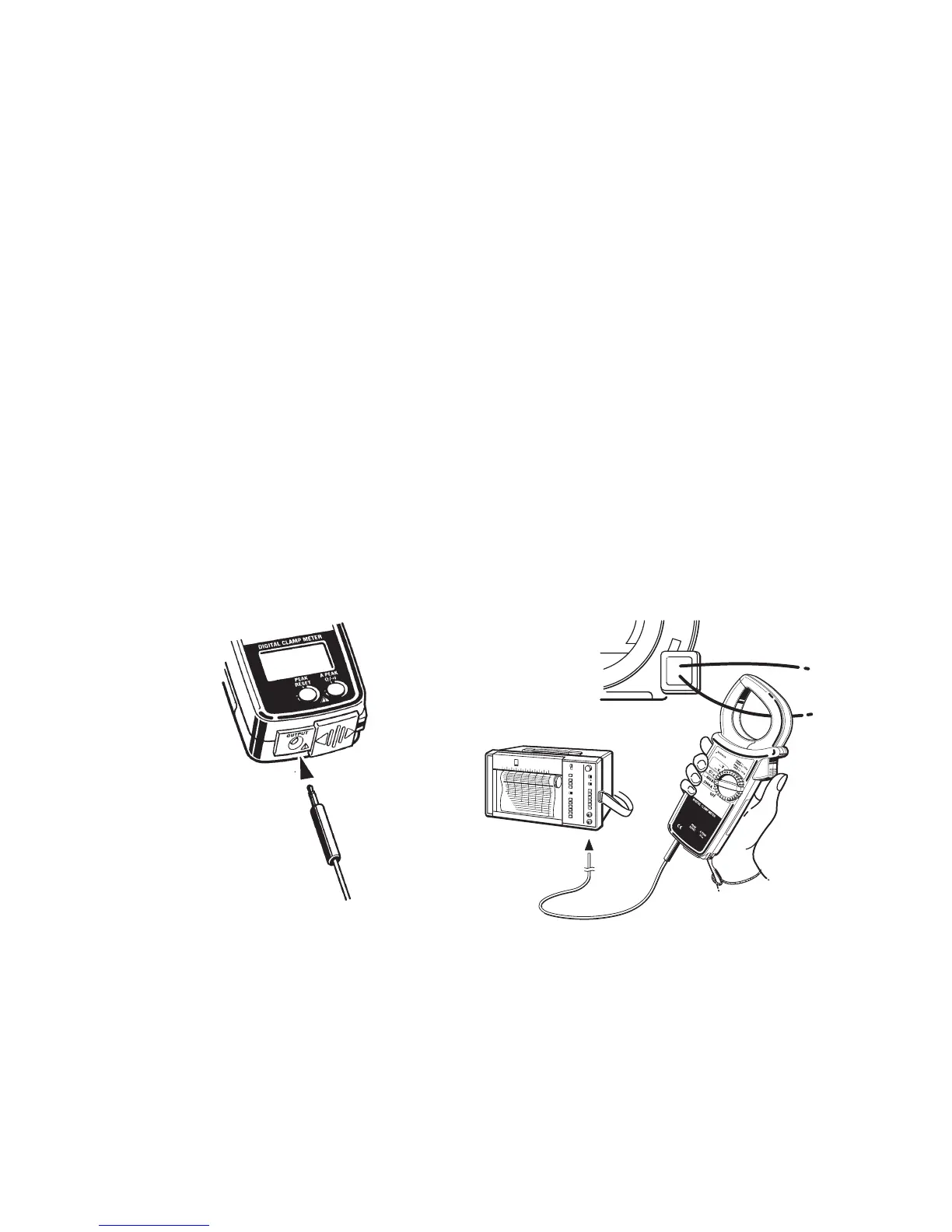

②Slide the terminal cover to the right and insert the recorder output
plug into the OUTPUT terminal for connection with a recorder or
other recording device.
NOTE
● Output voltage is 1mV/A on the "〜400A" range and 0.1mV/A on
the "〜2000A" range. Set an appropriate input sensitivity on the
recorder.
●
The peak hold function does not apply to the recorder output even if
the instrument is in the peak hold mode.
● For long term measurement, disable the sleep function. (See
section 7◆-2 for sleep function.)
