―16―

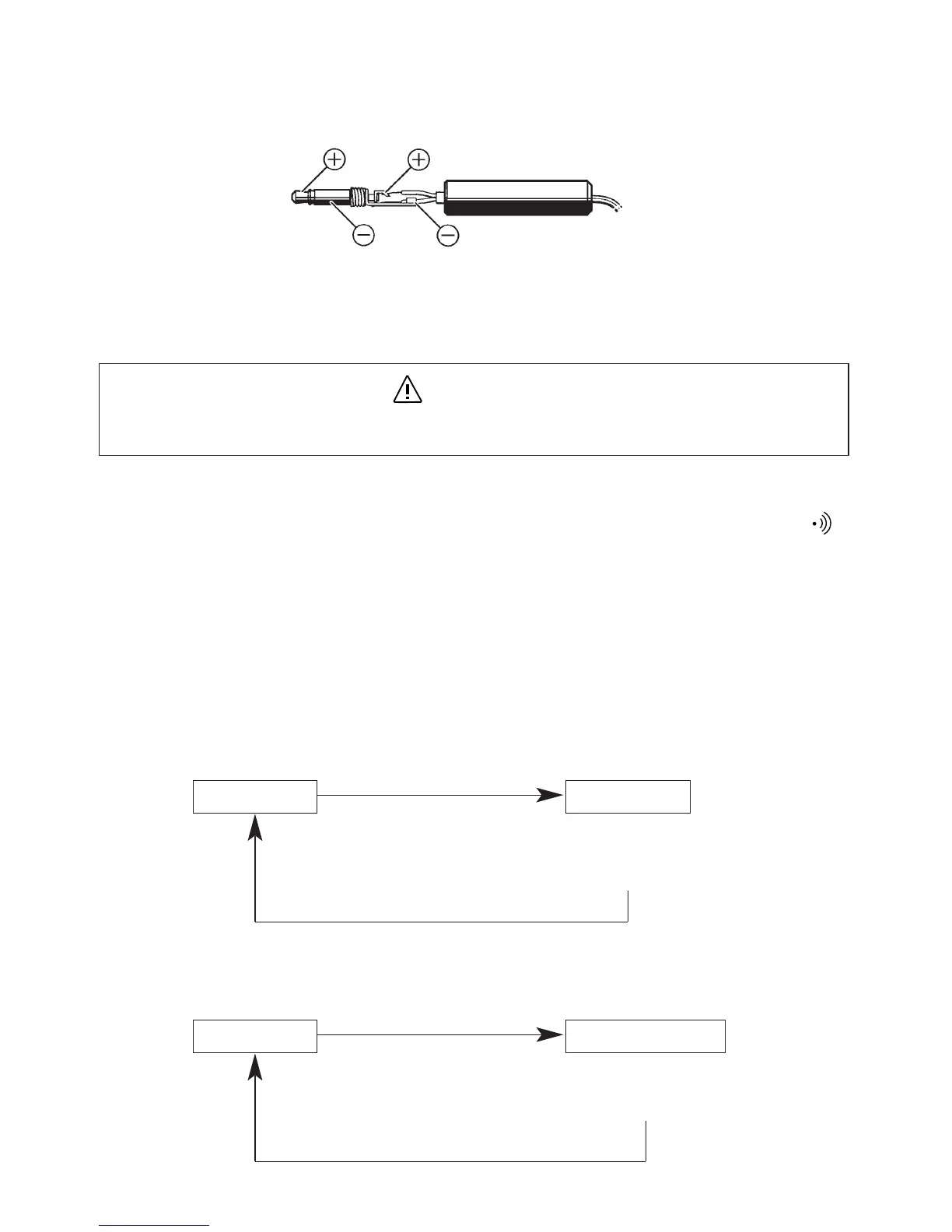

［Howtoattachapairofleadstotherecorderoutputplug］
Attach one end of the leads to the recorder output plug observing
correct polarity, then connect the other end to the recorder.
DANGER
Never apply voltage to the output terminal.
７−４ ModeSwitchingFunction
On a AC current ("〜400A" or "〜2000A") or the resistance(Ω/)
range, press the mode button to cycle through the measurement
modes. The instrument is initially set to the normal mode and can be
switched to the peak or continuity check mode by means of the mode
button. (See section 6-1-2 for peak current measurement and section
6-3-2◆ for continuity check.)
Normal
Peak
Peakcurrentvalueisdisplayed.
(Responsetime:10ms)
"PEAK"isshownonthedisplay.
Pressthemodebutton
Normal
ContinuityCheck
Thebuzzerbeepsiftheresistance
isnotmorethanabout50Ω.
Thebuzzersymbolisshownon
thedisplay.
≪ACCurrentRange(400Aor2000A)≫
≪ResistanceRange≫
Pressthemodebutton
Pressthemodebutton
Pressthemodebutton
