Aaeon EMB-B75A - Page 27

2-19
Chapter 2: Motherboard information
4. Intel
®
B75 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~2)
TheseconnectorsconnecttoSerialATA3.0Gb/sharddiskdrivesandoptical
drivesviaSerialATA3.0Gb/ssignalcables.
NOTES:
• YoumustinstallWindows
®
XPServicePack3orlaterversionbeforeusing
SerialATAharddiskdrives.
• Whenusinghot-plugandNCQ,settheSATAModeSelectioniteminthe
BIOSto[AHCI].Seesection3.3.5 SATA Configuration for details.
5. Intel
®
B75 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1)
ThISconnectorconnectstoSerialATA6.0Gb/sharddiskdrivesviaSerial
ATA6.0Gb/ssignalcables.
NOTES:
• YoumustinstallWindows
®
XPServicePack3orlaterversionbeforeusing
SerialATAharddiskdrives.
• Whenusinghot-plugandNCQ,settheSATAModeSelectioniteminthe
BIOSto[AHCI].Seesection3.3.5 SATA Configuration for details.

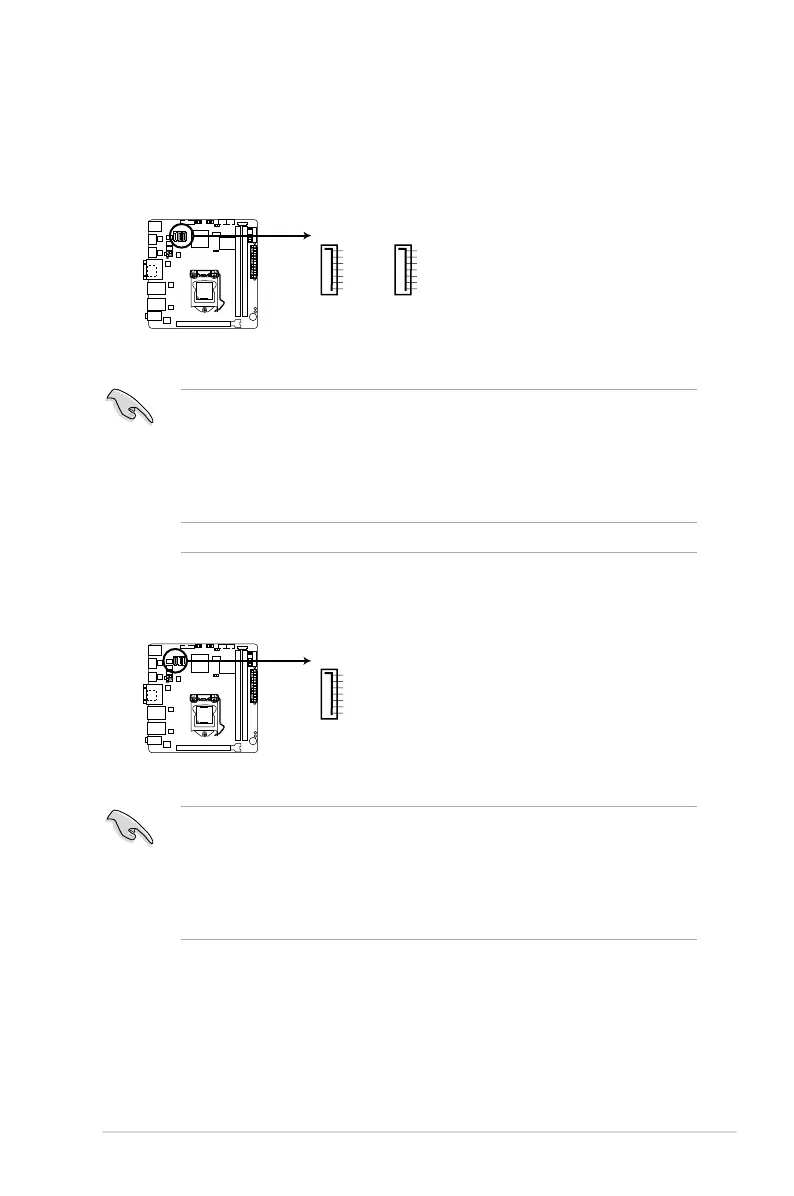

EMB-B75A SATA 3.0Gb/s connectors
SATA3G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
SATA3G_2
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
EMB-B75A SATA 6.0Gb/s connector
SATA6G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
