10 BM series
3. Installing the Balance and Precautions
3.1. Installing the Balance
1 Place the balance on a solid weighing table. Refer to "3.2. Precautions Before Use" for details on
a place to install the balance.

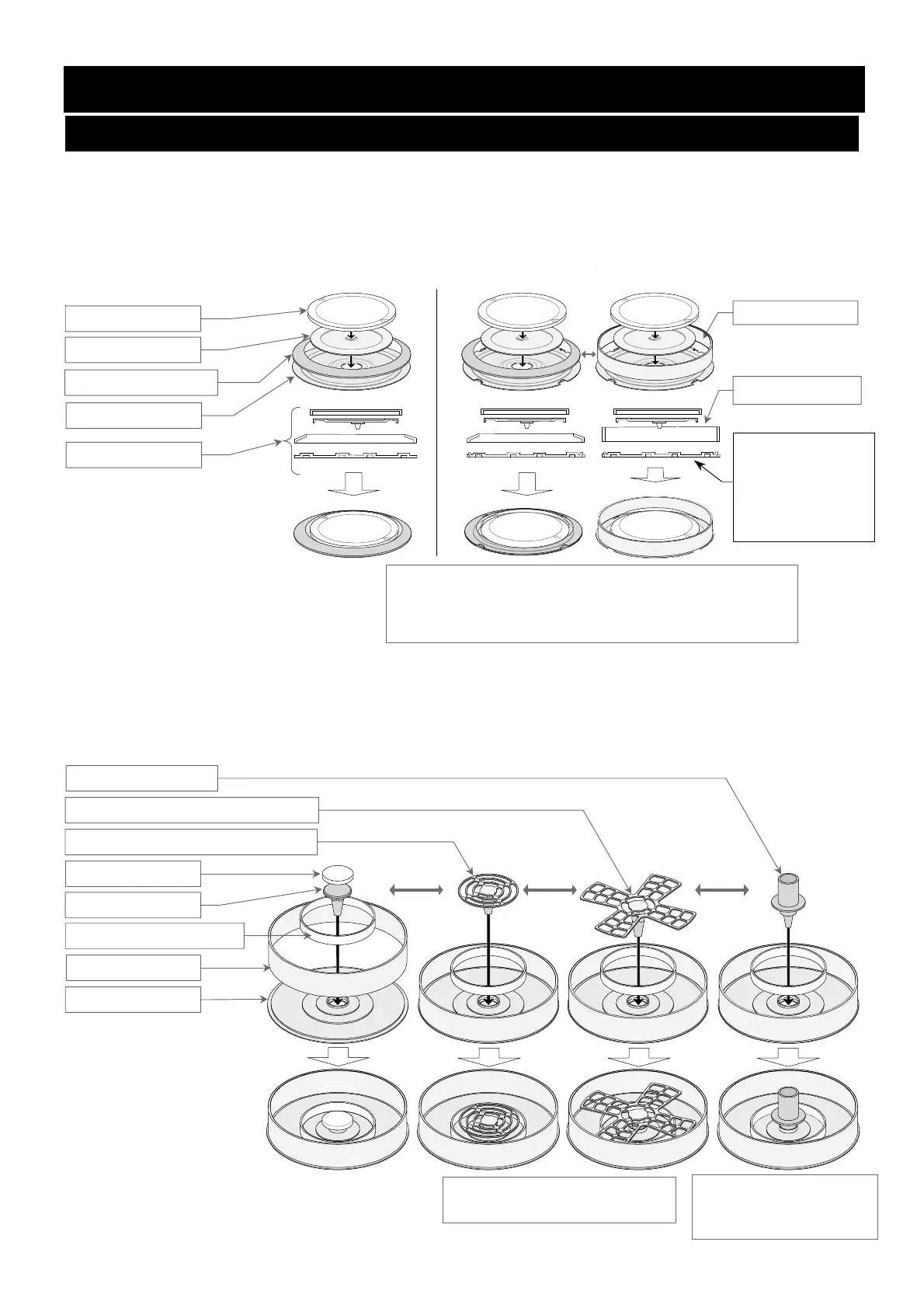

2 Assemble the weighing pan and other parts in accordance with the model and use as shown below.
BM-200, BM-300, BM-500 BM-252
BM-5, BM-5D, BM-20, BM-22
Note When using the micro tube holder for the BM-5 and BM-5D:
The micro tube holder is approximately 2 g heavier than the standard pan (weighing pan and
pan support). When a micro tube holder is used for the BM-5 and BM-5D, the available weighing
range will be up to approximately 3 g including the tare such as a micro tube and test tube.
Weighing pan
Breeze break ring
Dust plate
Pan support
Use the fine range ring in place of the breeze break
ring to avoid errors caused by drafts when weighing
with a readability of 0.01 mg.
Fine range ring
Sectional view
Pan support
Weighing pan
Small fine range ring
Dust plate
Fine range ring
Large weighing pan for filter
Small weighing pan for filter
Choose the weighing pan
appropriate to the filter size.
Micro tube holder
Use the holder for
micro tube or test tube
of 12 mm or less.
Fine range ring
Note
The mounting
direction (head /
tail) of the dust
plate.
