A&D FZ-300CT - User Manual

80 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

FZ-CT / FZ-GD SERIES

FX-CT / FX-GD SERIES

FZ-300CT

/ FZ-600CT

F

Z-120GD

/ FZ-200GD

/ FZ-300GD

F

Z-1200GD

/ FZ-2000GD

/

FZ-3000GD

F

X-300CT

/ FX-600CT

FX-120GD

/ FX-200GD

/ FX-300GD

F

X-1200GD

/ FX-2000GD

/

FX-3000GD

Jewelry Balance

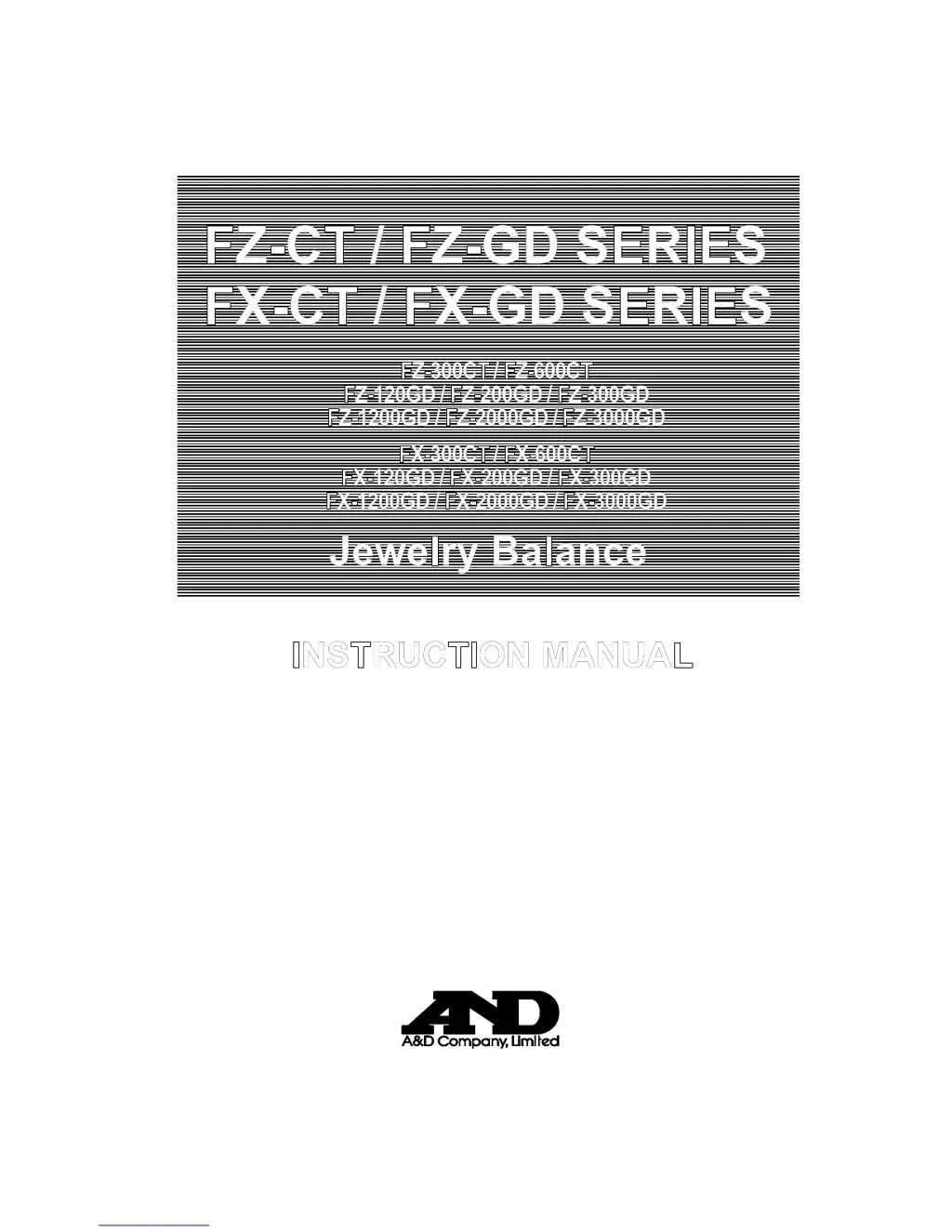

INSTRUCTION MANUAL

1WMPD4001554A

Table of Contents

Default Chapter3
- Table of Contents3
Basic Operation5
- Features5
- Compliance6
1 Introduction5
- About this Manual5
2 Unpacking the Balance9
- Unpacking9
- Installing the Balance11
3 Precautions12
- Before Use12
- During Use12
- After Use13
- Power Supply13
4 Display Symbols and Key Operation14
5 Weighing15
- FZ-CT / FX-CT Series Balance15
- Basic Operation (FZ-CT / FX-CT Series Balances)15
- FZ-GD / FX-GD Series Balances16
- Basic Operation (FZ-GD / FX-GD Series Balances)16
6 Response Adjustment17
7 Calibration18
- Calibration Mode18
- Calibration Using the Internal Mass (One-Touch Calibration, Only for FZ-CT/GD Series)19
- Calibration Using an External Weight20
- Calibration Test Using an External Weight22
8 Function Switch and Initialization24
- Permit or Inhibit24
- Initializing the Balance25
9 Function Table26
- Structure and Sequence of the Function Table26
- Display and Keys26
- Details of the Function Table27
- Description of the Class "Environment, Display30
- Description of the Item "Data Output Mode32
- Description of the Item "Data Format33
- Data Format Examples35
- Units37
- Storing Units40
- Counting Mode (PCS)41
- Counting Operation42
- Percent Mode (%)43
- Description of the Item "Application Function44
- Statistical Calculation Mode45
- Comparator Function49
- Clock and Calendar Function (Only for the FZ-CT/FZ-GD Series)50
10 ID Number and Glp Report52
- Setting the ID Number52
- GLP Report52
11 Underhook55
12 Programmable-Unit56
13 Rs-232C Serial Interface57
14 CONNECTION to Peripheral EQUIPMENT58
- Connection to the AD-8121B Printer58
- Connection to a Computer59
- Using Windows Communication Tools (Winct)59
15 Commands61
- Command List61
- Acknowledge Code and Error Codes62
- Settings Related to RS-232C63
16 Maintenance64
17 Troubleshooting65
- Checking the Balance Performance and Environment65
- Error Codes66
- Asking for Repair67
18 Options68
19 Specifications70
20 External Dimensions74
21 Terms/Index76
