Connections
Use the HDMI (ARC) socket
The ARC (Audio Return Channel) function allows you to send audio from your ARC- compliant TV to
your sound bar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is
both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV
remote control to adjust the volume output (VOL +/- and MUTE) of the sound bar.

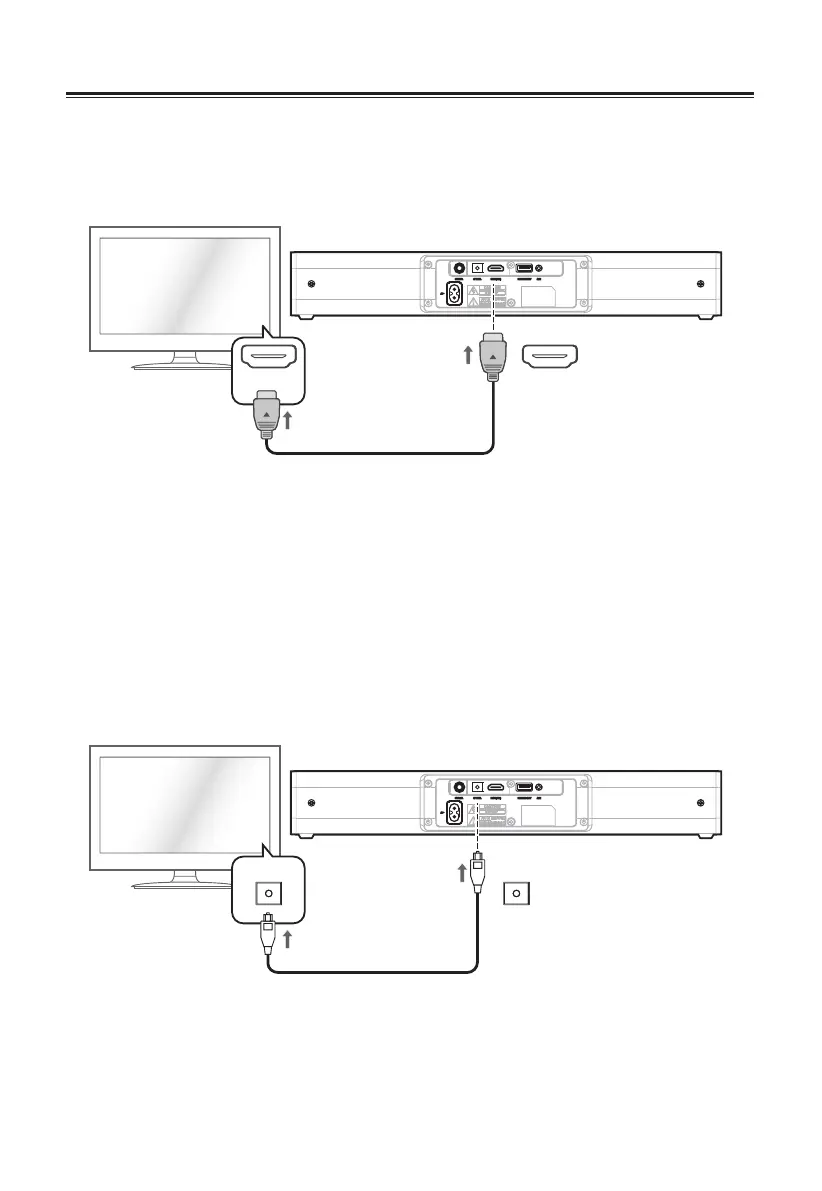

TV
HDMI ARC HDMI (ARC)
- Connect the HDMI cable (not included) from unit's HDMI (ARC) socket to the HDMI (ARC) socket on your
ARC compliant TV. Then press the remote control to select HDMI ARC.
Tips:
• Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may dier depending on the TV. For details about ARC
function, please refer to your TV owner’s manual.
• Only HDMI 1.4 cables can support the ARC function.
Use the OPTICAL Socket
• Connect an OPTICAL cable (not included) to the TV’s OPTICAL OUT socket and the OPTICAL socket
on the unit.
TV
OPTICAL OPTICAL
Use the COAXIAL Socket
• You also can use the COAXIAL cable (not included) to connect the TV's COAXIAL OUT socket and
COAXIAL socket on the unit.
