2. Access standalone controller mode
In this mode unit works as standalone controller. This is factory default
mode (command 7-1-1-#). It’s possible to connect additional reader for two way
control and activate anti-passback feature. To change unit for Wiegand reader
mode please use command: 7-1-0-# (this mode is describe on next pages) .

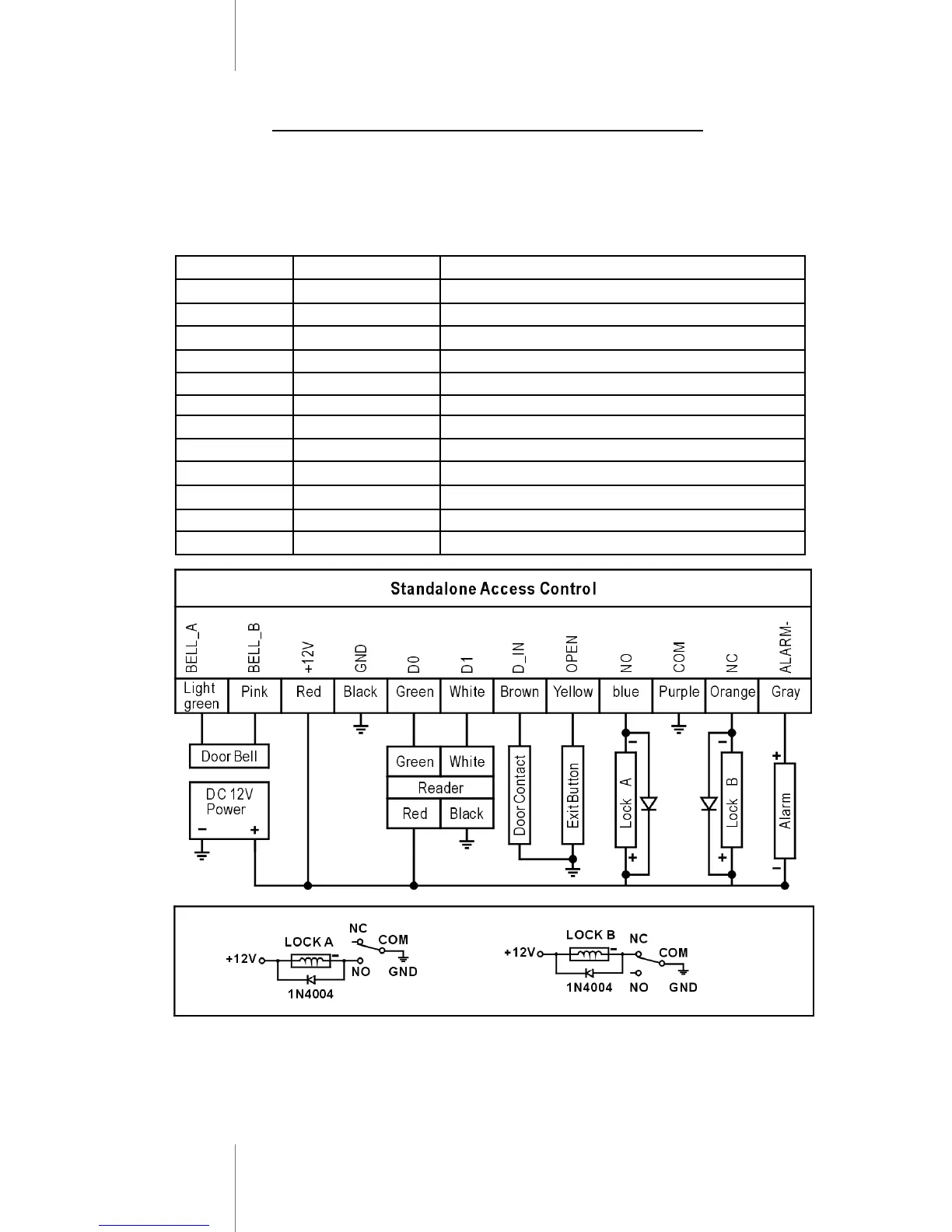

Wiring diagram
Color Function Description
Light green BELL_A Bell control output
Pink BELL_B Bell control output
Red +12V Supply power input (12~24V DC)
Black GND Supply power input (12~24V DC)
Green D0 Wiegand input
White D1 Wiegand input
Brown D_IN Door contact input
Yellow Open Request to Exit Button input
Blue NO Lock relay output
Purple COM Lock relay output
Orange NC Lock relay output
Gray ALARM Alarm output
Lock A connection - for NC type - Normally Close - locked without supply power
Lock B connection - for NO type - Normally Open - locked with supply power
