2. Product Overview
2.1 Rear Panel

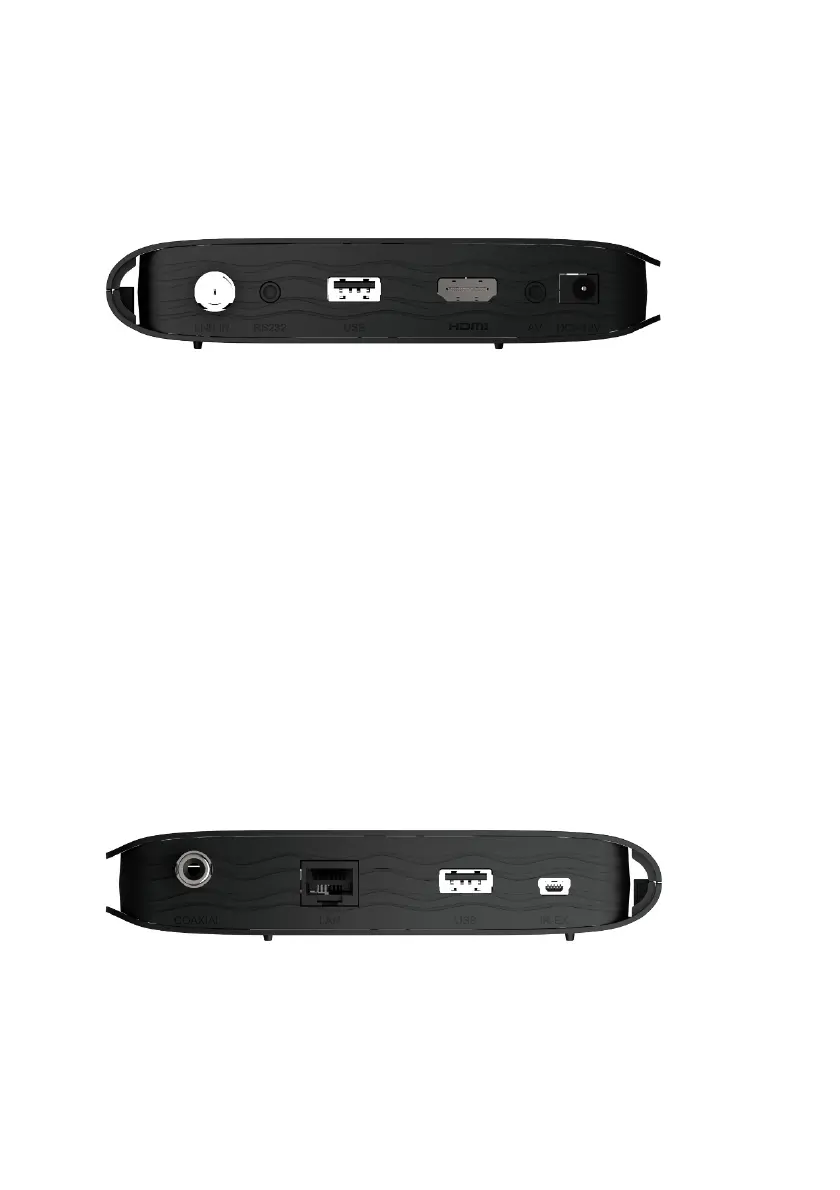

Figure2. Rear Panel (A)
1. LNB IN
Connect the satellite antenna cable.
2. RS232
Connect to the computer using serial line.
3. USB2.0
One USB 2.0 Host Port.
4. HDMI
Connect to the TV using an HDMI cable.
5. AV
Connect to the TV using a AV cable.
6. DC-12V
Connect to adapter.
Figure2. Rear Panel (B)
1. COAXIAL
