1.DISPLAY: It displays channel information. In standby mode it displays local
time.
2.CH+ /CH-: Change channel in viewing mode and move the cursor up/down in
menu mode.
3.POWER BUTTON: Switch between operation and standby modes.
4.Power LED: Power indicator.

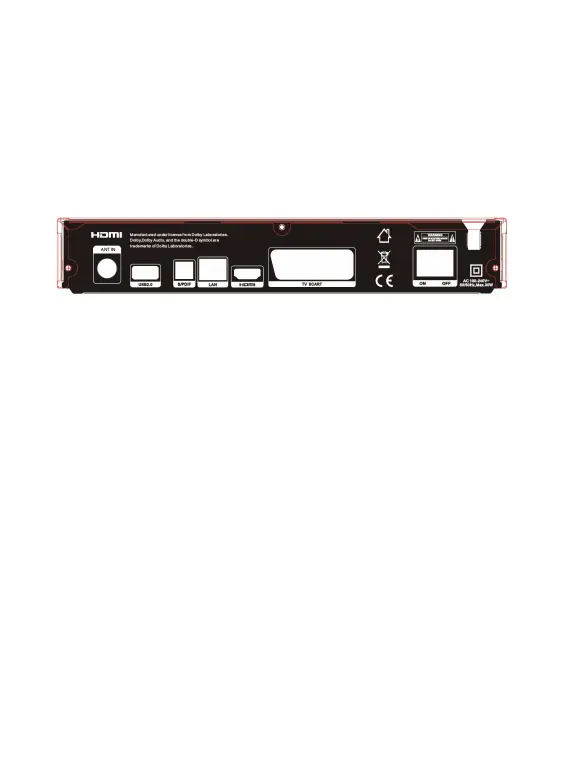

2.2 Rear Panel
1. ANT IN: Connect the DVB-T2 or DVB-C cable.
2. USB2.0: One USB 2.0 Host Port.
3. S/PDIF: Digital Audio output.
4. LAN: Connect to the Ethernet using a Network cable.
5. HDMI: Connect to the TV using an HDMI cable.
6. TV SCART: Connect to the TV using a SCART cable.
7. ON/OFF: Power on/off.
2.3 Remote Control Unit (RCU)
You can control this receiver by this remote controller with full function.
1. STANDBY: Switch between operation and standby modes.
2. F1: Accessorial function.
3. SHIFT: Enable/Disable timeshift.
4. MUTE: Mute audio.
5. I I : Pause/Time shift.
6. ◄◄: Fast rewind.
7. ►►:Fast forward.
8. ●: Record.SLEEP: Set sleep time.
9. ►: Play.
10. ■：stop recording and playing.
11. MENU: Activate main menu.
