ab mini CryptoBox 500HD - Rear Panel

7
2.2 Rear Panel

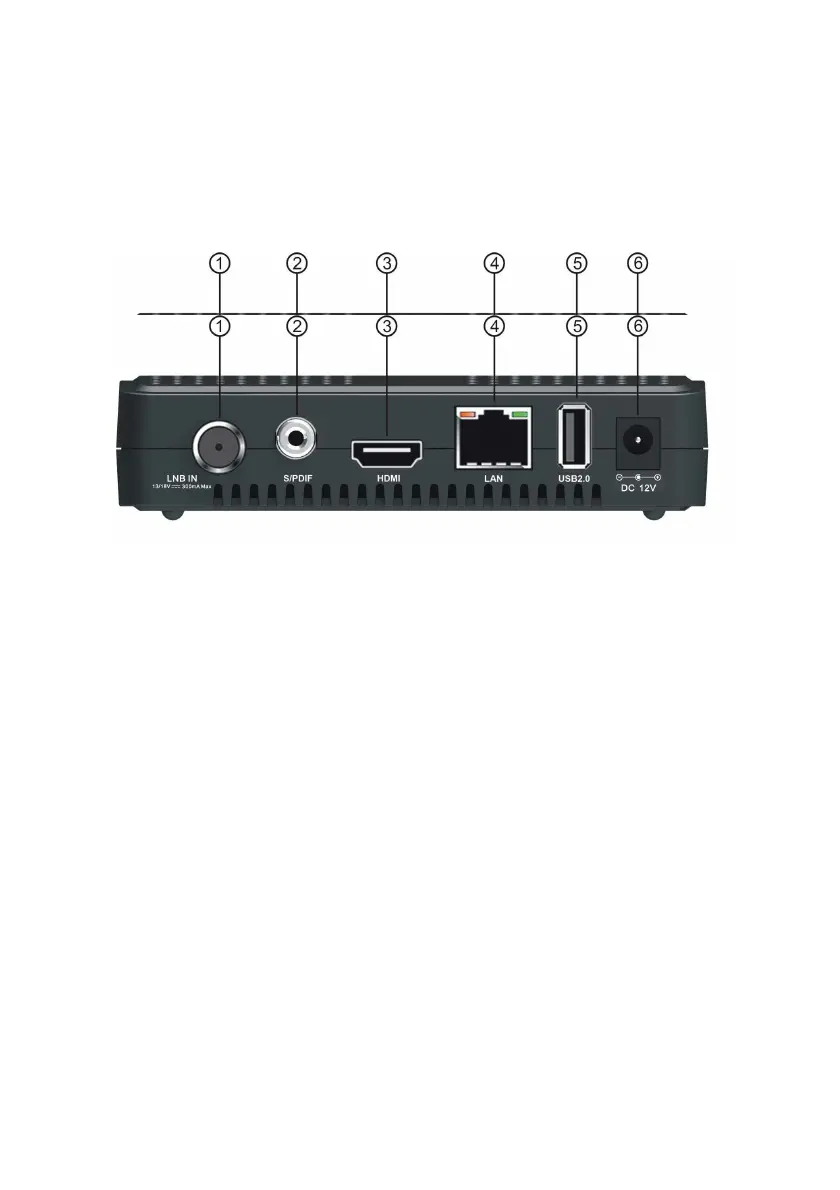

Figure 3. Side of Panel
1. LNB IN
Connect the satellite antenna cable.
2. SPDIF
Digital Audio output (Coaxial).
3. DV-OUT
Connect to the TV using an HDMI cable.
4. LAN
Connect to the internet using an Ethernet cable.
5. USB2.0
One USB 2.0 Host Port.
6. DC/12V
Supply 12V DC to other apparatus.
