JTAG interface library, BDI3000 (XScale) Installation Manual 7
© Copyright 1992-2007 by ABATRON AG V 1.00
2.3 Status LED «MODE»

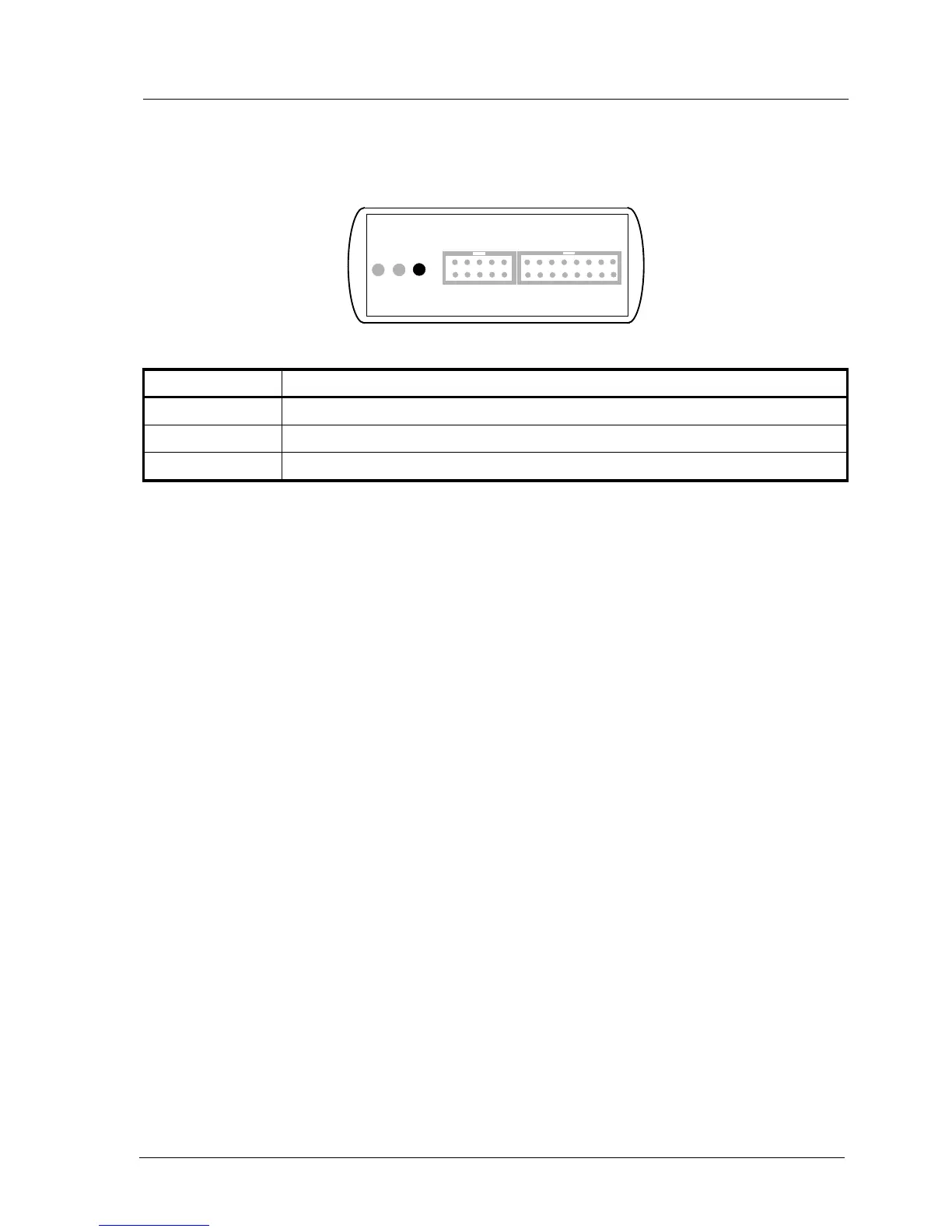

The built in LED indicates the following BDI states:
MODE LED BDI STATES
OFF The BDI is ready for use, the firmware is already loaded.
ON The output voltage from the power supply is too low.
BLINK The BDI «loader mode» is active (an invalid firmware is loaded or loading firmware is active).
TARGET A TARGET B
BDI
TRGT
MODE
