JTAG interface library, BDI3000 (XScale) Installation Manual 4
© Copyright 1992-2007 by ABATRON AG V 1.00
2 Installation

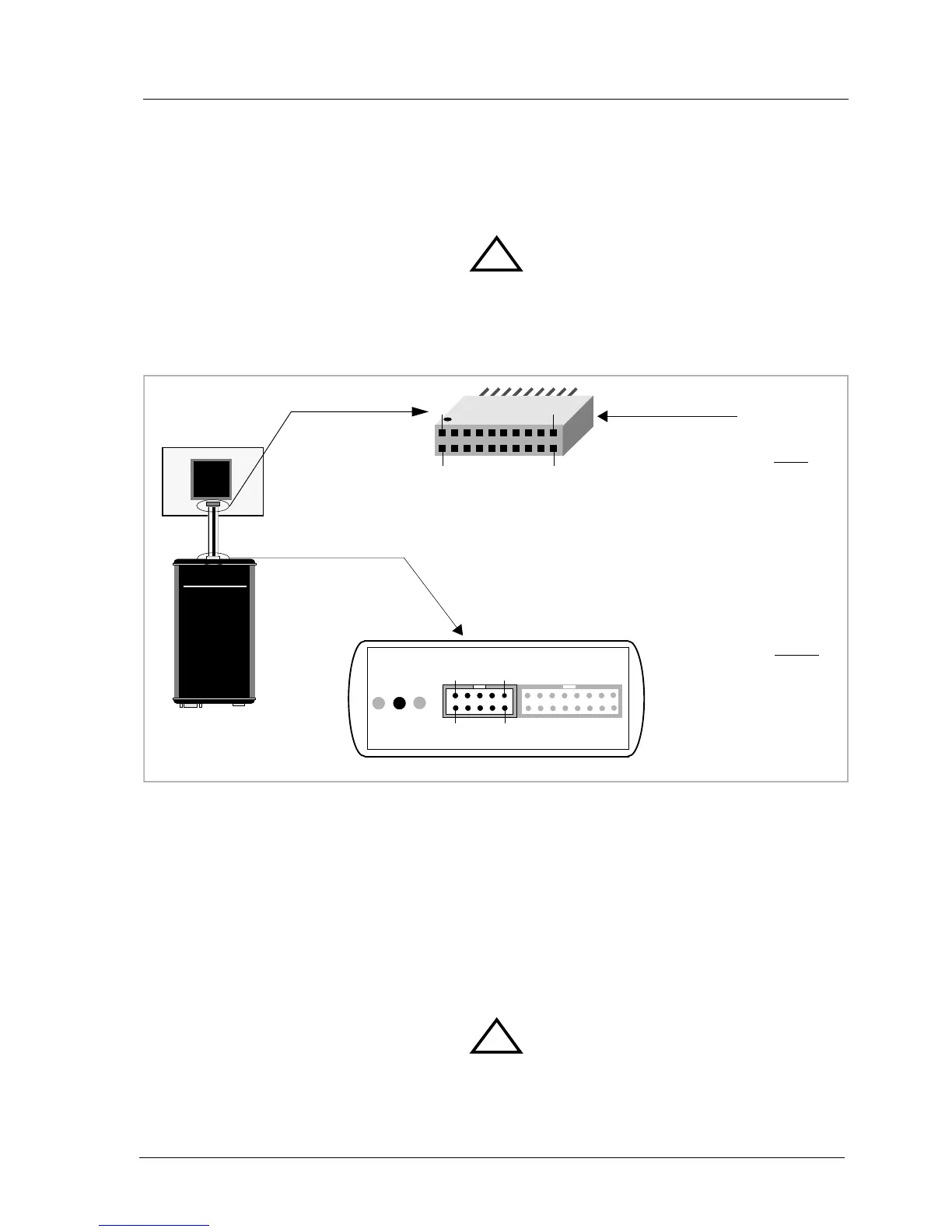

2.1 Connecting the BDI3000 to Target
The enclosed target cable is designed for the Intel recommended 20pin JTAG connector. In case
where the target system has an appropriate connector, the cable can be directly connected. The pin
assignment is in accordance with the Intel specification.
In order to ensure reliable operation of the BDI (EMC, runtimes, etc.) the target cable length must not
exceed 20 cm (8").
For BDI TARGET B connector signals see table on next page.
Warning:
Before you can use the BDI3000 with an other target processor type (e.g. PPC <--> ARM), a new
setup has to be done (see chapter 2.5). During this process the target cable must be disconnected
from the target system.
To avoid data line conflicts, the BDI3000 must be disconnected from the target system while
programming a new firmware for an other target CPU.
!
BDI3000
AA
AA
bb
bb
aa
aa
tt
tt
rr
rr
oo
oo
nn
nn
AA
AA
GG
GG
SS
SS
ww
ww
ii
ii
ss
ss
ss
ss
MM
MM
aa
aa
dd
dd
ee
ee
Target System
1 - Vcc Target
2 - NC
3 - TRST
4 - NC
5 - TDI
6 - NC
7 - TMS
8 - GROUND
9 - TCK
10 - GROUND
11 - NC
12 - NC
13 - TDO
14 - NC
15 - RESET
16 - NC
17 - NC
18 - NC
19 - NC
20 - NC
20 pin JTAG
Connector
1
19
20
2
XScale
The green LED «TRGT» marked light up when target is powered up
BDI TARGET A TARGET B
9 1
10
2
BDI
TRGT
MODE
!
