Operation
| 1473-1-7978 — 6 —
4.6 Deleting the switch-on brightness

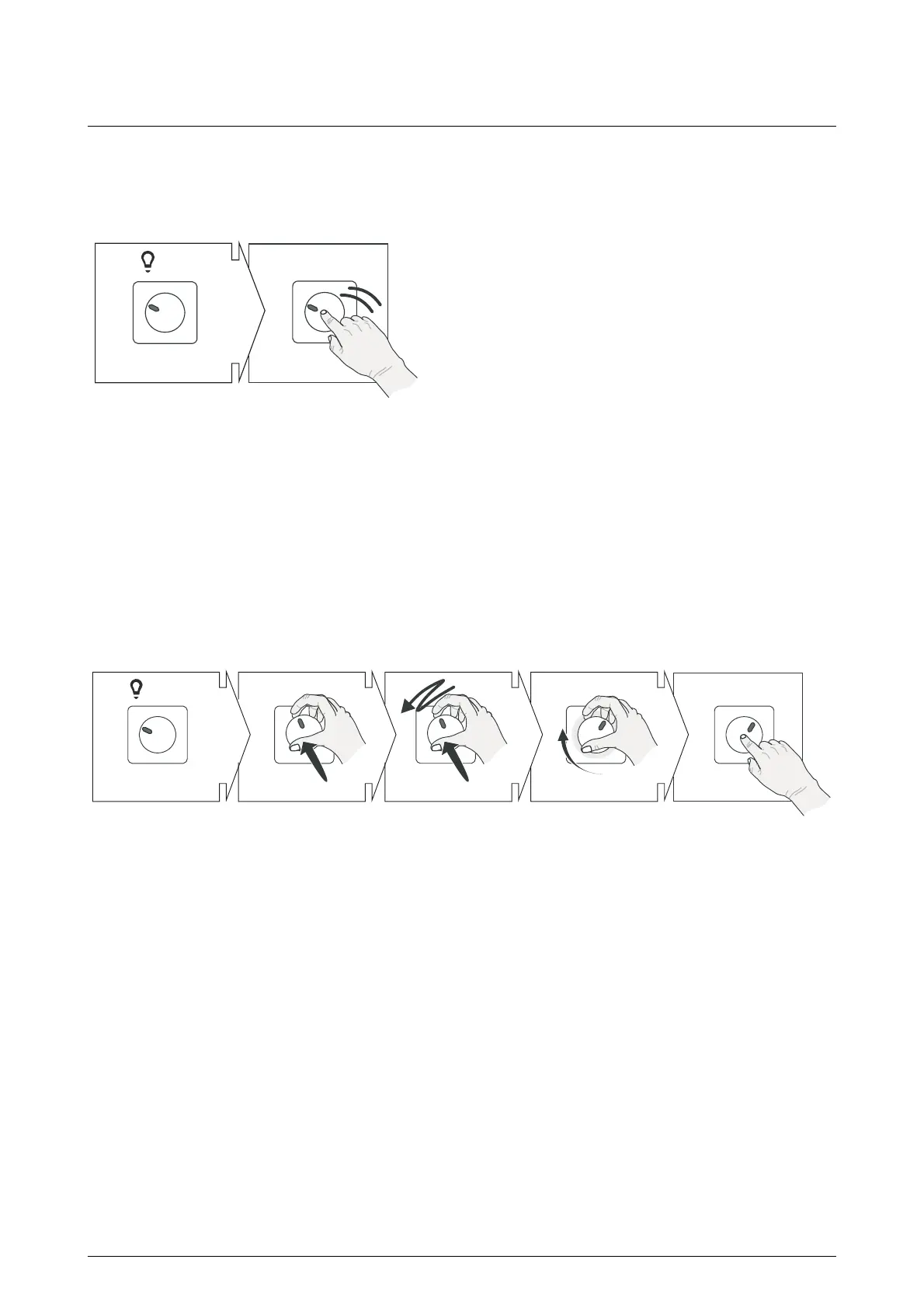

Fig. 6:
To delete a fixed switch-on brightness carry out the following steps:
1. Switch the lighting on.
2. Double click fast on the control element.
- The load flashes twice after the setting has been made.
After the deletion of the switch-on brightness, the memory function continues to work (activation with the last
brightness before deactivation).
4.7 Adjusting the colour of the light for orientation
Fig. 7:
To change the colour of the light for orientation carry out the following steps:
1. Switch the lighting (load) off.
2. Press the control element, keep it pressed and turn it quickly back and forth three times.
3. Release the control element.
- The light for orientation flashes 3 times.
4. Select the colour of the LED by turning the control element.
5. Confirm the selection of the colour with a brief press of the control element.
- When the setting has been made the orientation light flashes 3 times.
OFF
2x Click
OFF
Press
Click
