CHAPTER 3 - Installation of the drive
MANIU04.9607 GB 03/97
Page 3.2

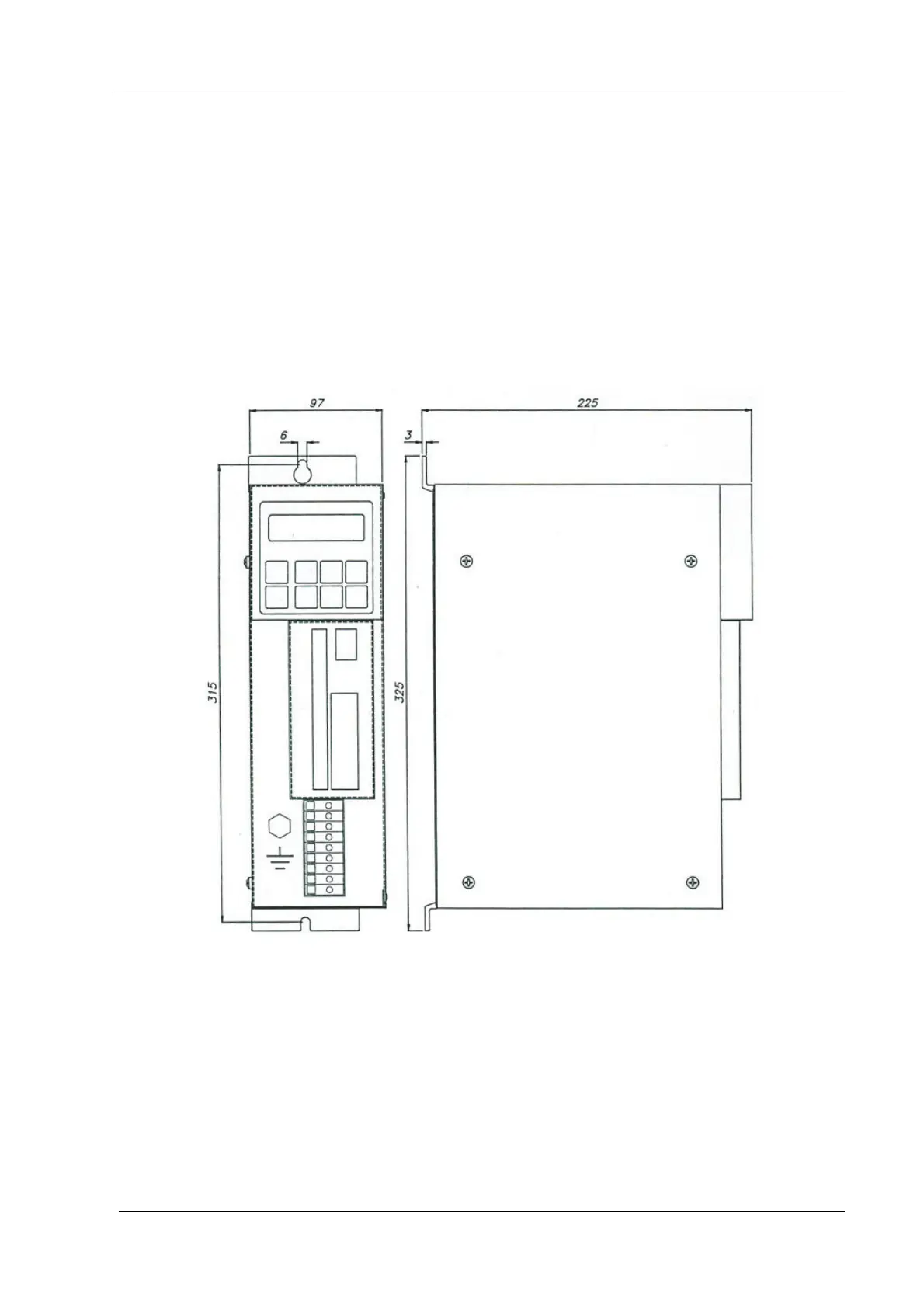

3. 1. 2 Dimensions
SIZE 223
Models from 5/10 to 18/36:
Fig. 3-2
