3.1 Installation of BHL-D convertors
3. 1. 1 Mechanical installation
- The convertor MUST always be installed in a vertical position. The distance equal to 150
mm, indicated above and below in Fig. 3-1, is the room that must be left free for air flow; this
is valid both for size 223 and for size 224.
- Do not stop the flow of cooling air with external bodies placed too close to the convertor (see
minimum distances described in the figure).
- Do not place the drive near heat sources.

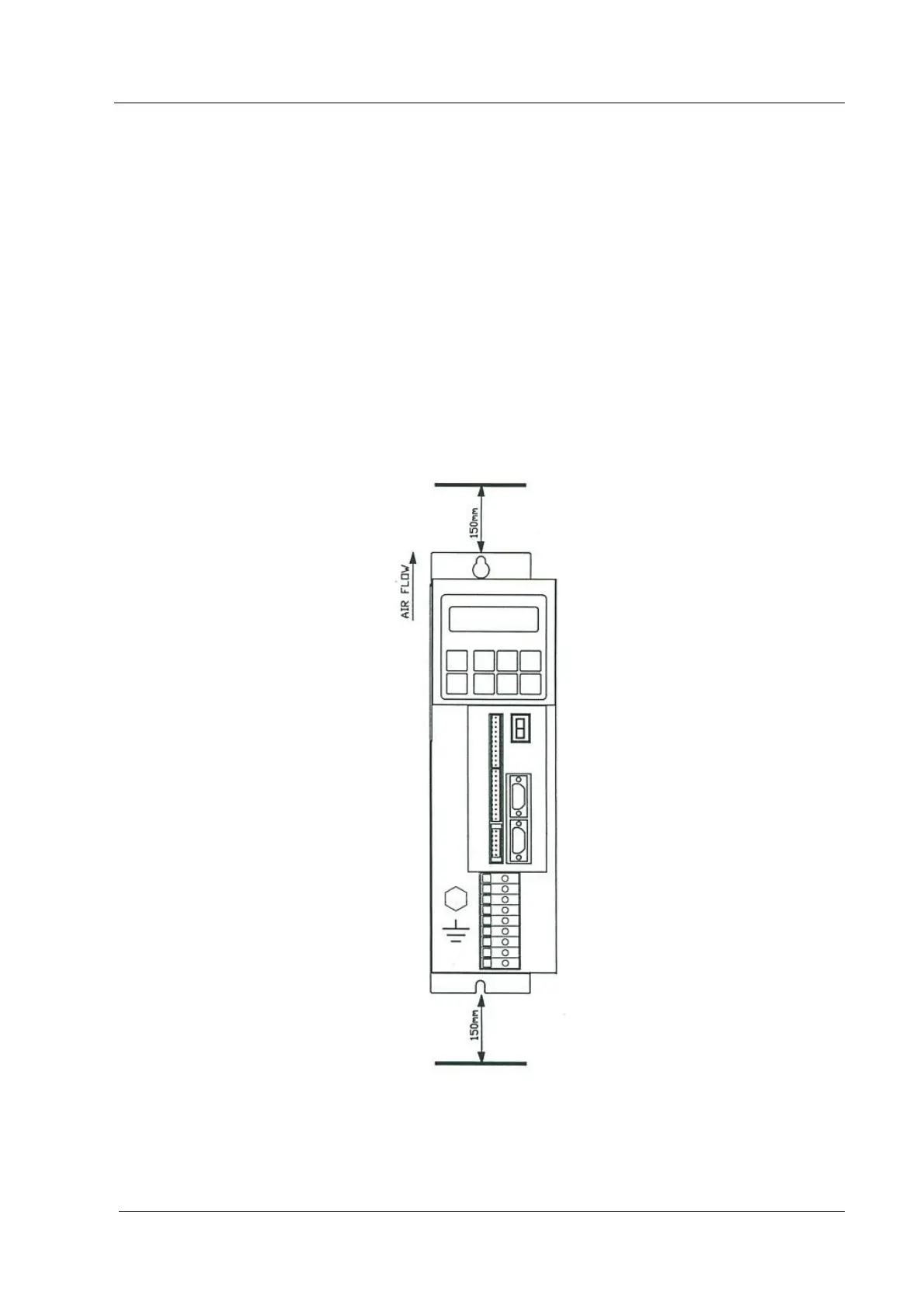

Fig. 3-1
