Assembly Instructions / A100-L
4 Installing the turbocharger / 4.1 Placing the turbocharger on the
bracket
© Copyright 2020 ABB. All rights reserved. HZTL455311P0002_EN Rev.A July 2020
4 Installing the turbocharger
4.1 Placing the turbocharger on the bracket

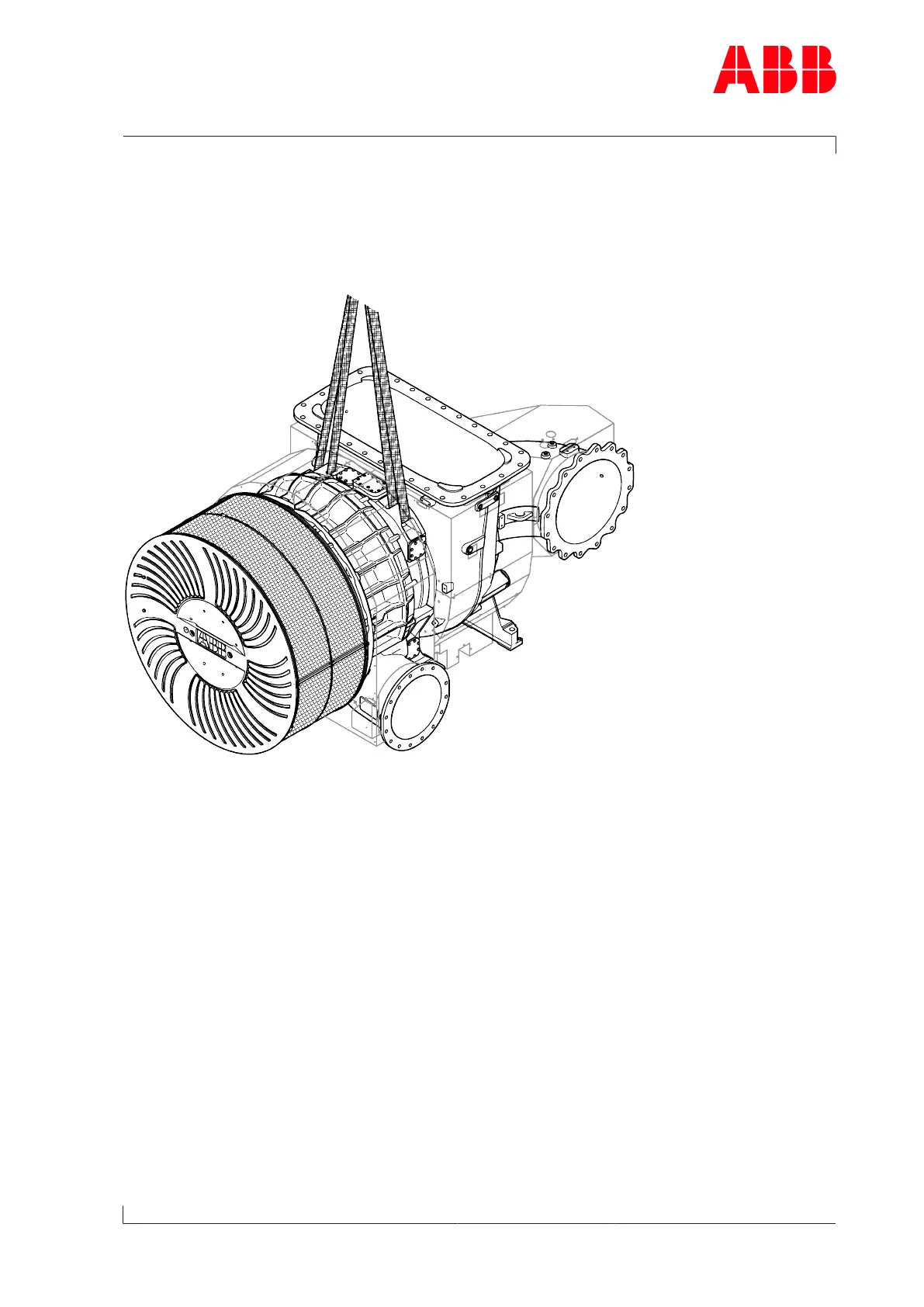

Fig.4: Placing the turbocharger
u Remove covers from the oil connections.
u Align turbocharger and place on engine bracket.
u Tighten the fixing screws (Steps for fastening the turbocharger) while only slightly
loosening the lifting gear.
u Remove lifting gear from turbocharger.
u Connect cable to speed sensor.
u Connect all gas, air and oil pipes.
Page 11 / 17
