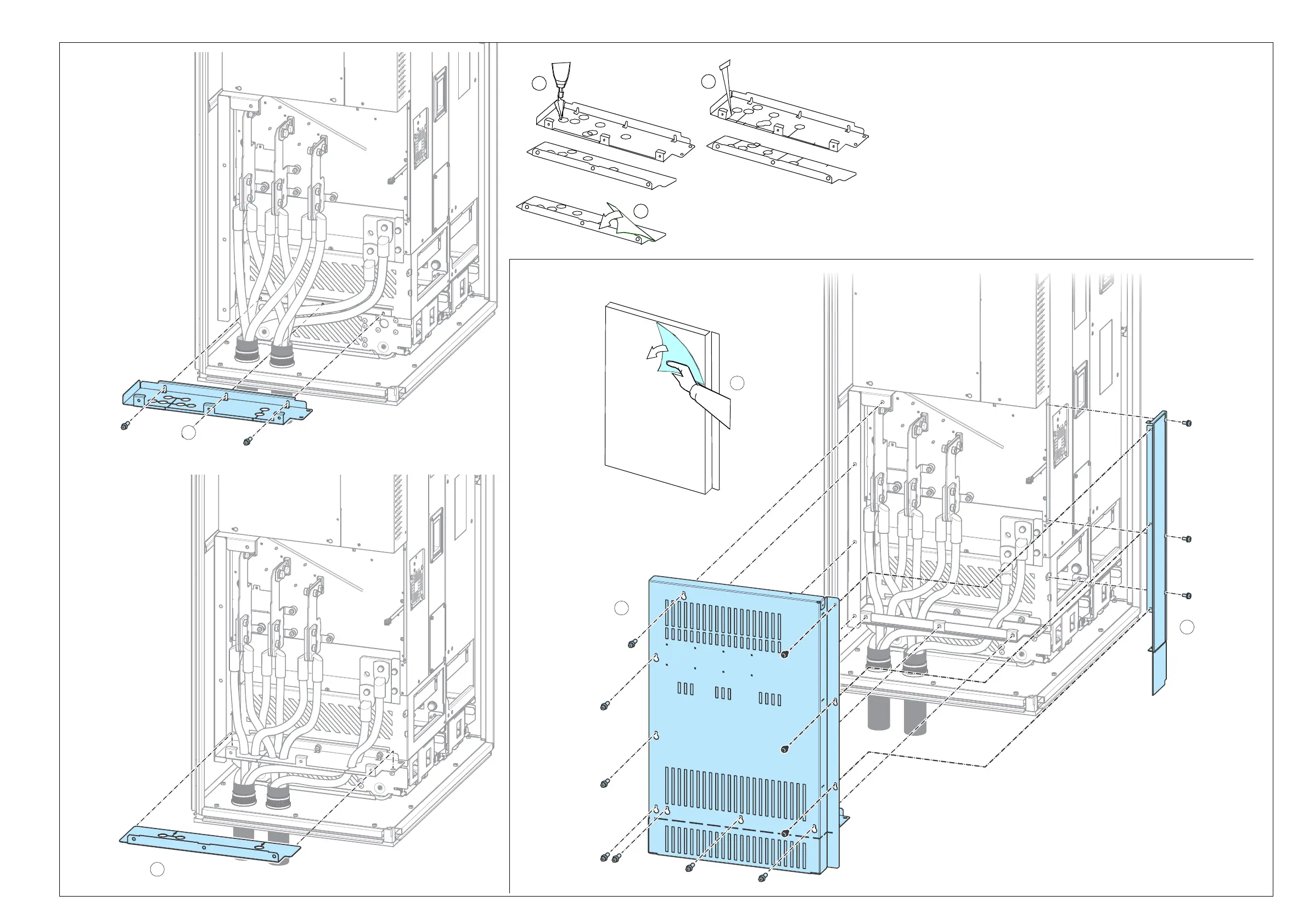

Step-by-step drawings fo
r
an installa
ti
on
example of standard drive configuration in Rittal VX25 800 mm wide cabinet
17
1
2
3
4
5
7
8
Combi
screw M6×2
0
T
orx
T25 2
N·m
Combi scre
w M6×20
T
o
rx T25
2
N·m
Combi
screw
M4×1
0 T
orx T
20
2N
·
m
6
+B051
+B05
1
+B05
1
+B
051
16
18
Table of Contents
EN – Quick installation guide
3
Contents of this guide
3
Obey the safety instructions
3
Select the power cables
4
Ensure the cooling
4
Protect the drive and input power cables
4
Installing the drive module and LCL filter module into a cabinet
4
Connecting the power cables and installing the shrouds
5
Default I/O connections
7
Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide cabinet
9
