CHAPTER 9 – CDP CONTROL PANEL 140
9.4 Identification mode
The identification mode informs the user about the CDP control panel
version and the ID number of the drive.
The information appears on the display when:
• the power supply is switched on, or
• the CDP control panel is connected to the drive
and the auxiliary voltage has been switched on
already.

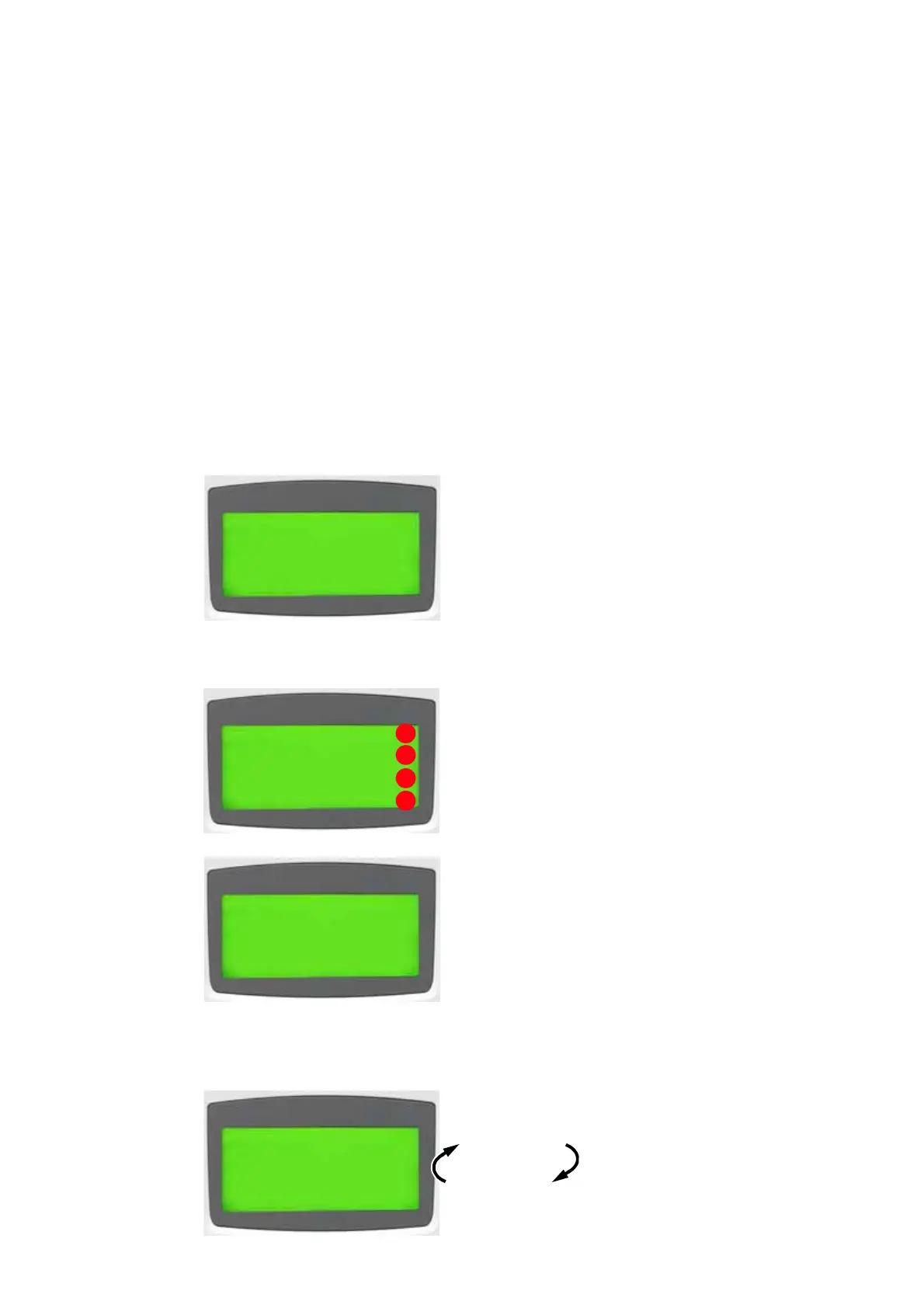

When the CDP control panel is initialized as
described before, the display changes as follows:
After 2-3 seconds, information on the drive (1, 2),
the application software in use (3), and the drive
identification (4) is displayed.
After another few seconds.
After another few seconds, the display changes to
the actual signals mode. The status line of the dis-
play alternates between DCGnd NOpen,
NotReadyOn.
CDP312 PANEL V5.30
........
ACS2000 xxxx
< Device Name >
ID-NUMBER 1
LDAI5500
1
2
3
4
1 L ->
0.0 rpm
StateINU
InitSeq....
MOTOR SP 0.00 rpm
POWER
0.0 kW
1 L ->
0.0 rpm
StateINU
DCGndNopen
MOTOR SP 0.00 rpm
POWER
0.0 kW
DCGnd Nopen
NotReadyOn
To Next Page
