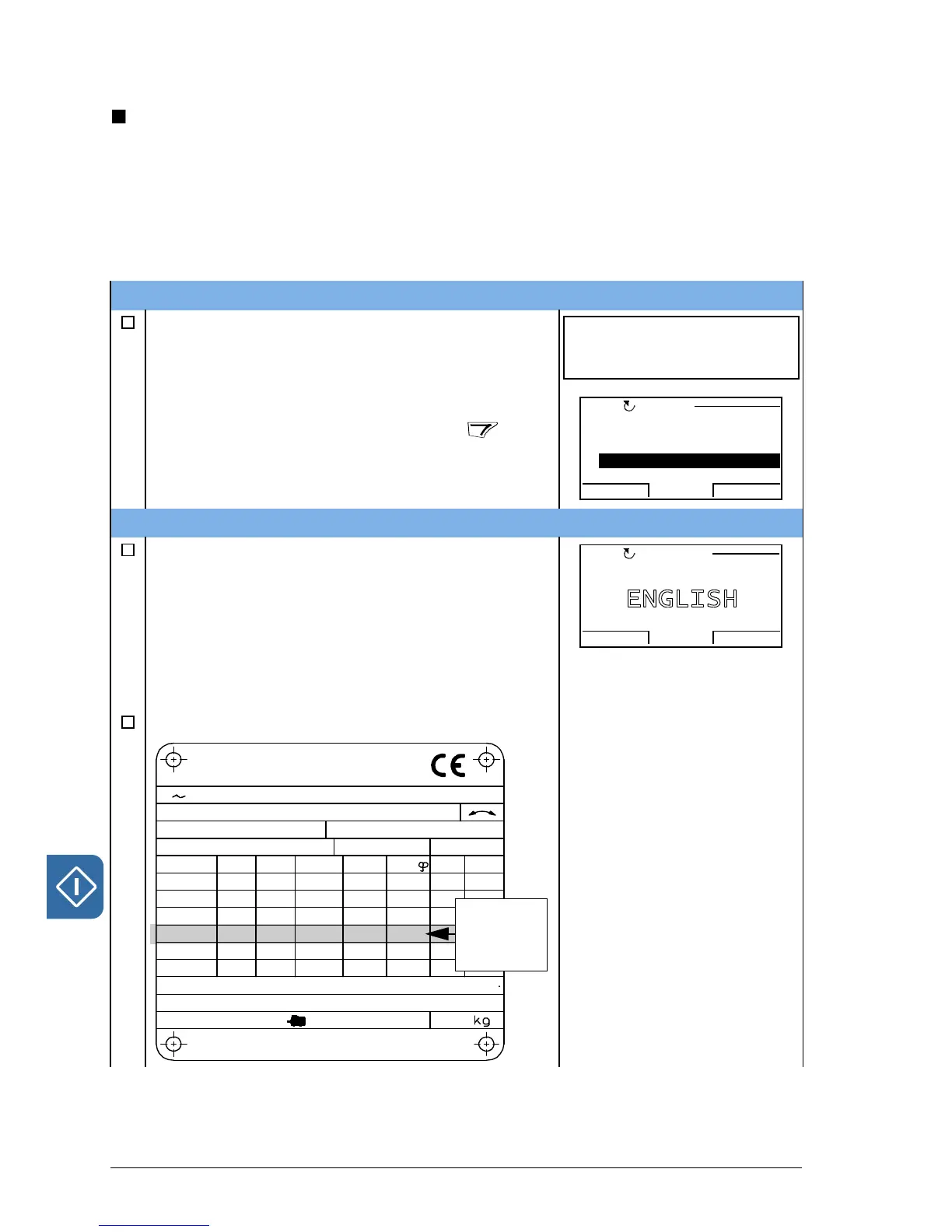

20 Start-up and control with I/O
How to perform a manual start-up
For the manual start-up, you can use the Basic Control Panel or the Assistant Control
Panel. The instructions below are valid for both control panels, but the displays
shown are the Basic Control Panel displays, unless the instruction applies to the
Assistant Control Panel only.
Before you start, ensure that you have the motor nameplate data on hand.
POWER-UP
Apply input power.
The Basic Control Panel powers up into the
Output mode.
The Assistant Control Panel asks if you want to
run the Start-up assistant. If you press , the
Start-up assistant is not run, and you can
continue with manual start-up in a similar manner
as described below for the Basic Control Panel.
MANUAL ENTRY OF START-UP DATA (parameter group 99)
If you have an Assistant Control Panel, select the
language (the Basic Control Panel does not
support languages). See parameter 9901 for the
values of the available language alternatives.
For instructions on how to set parameters with the
Assistant Control Panel, see chapter Control panels,
section Assistant Control Panel in ACS310 Users
Manual (3AUA0000044201 [English]).
Enter the motor data from the motor nameplate:
Note: Set the motor data to
exactly the same value as on
the motor nameplate. For
example, if the motor nominal
speed is 1440 rpm on the
nameplate, setting the value of
parameter 9908 MOTOR NOM
SPEED to 1500 rpm results in
the wrong operation of the
drive.
REM Hz
OUTPUT FWD
00
.
EXIT
Do you want to
use the start-up
assistant?
Yes
No
EXIT OK
00:00
REM CHOICE
9901 LANGUAGE
CANCEL SAVE
00:00
PAR EDIT
[0]
ENGLISH
REM
M2AA 200 MLA 4
1475
1475
1470
1470
1475
1770
32.5
56
34
59
54
59
0.83
0.83
0.83
0.83
0.83
0.83
3GAA 202 001 - ADA
180
IEC 34-1
6210/C36312/C3
Cat. no
35
30
30
30
30
30
50
50
50
50
50
60
690 Y
400 D
660 Y
380 D
415 D
440 D
V
Hz kW
r/min A
cos
IA/IN
t
E/s
Ins.cl. F
IP 55
No
IEC 200 M/L 55
3
motor
ABB Motors
380 V
supply
voltage
