ABB ACS800-U1-0030-5 User Manual

Mechanical installation
35
Cabinet installation
For better cooling, it is recommended to remove the front cover if the unit is installed
into a cabinet. The required distance between parallel units is five millimetres
(0.2 in.) in installations without the front cover. The cooling air entering the unit must
not exceed +40 °C
(+104 °F).

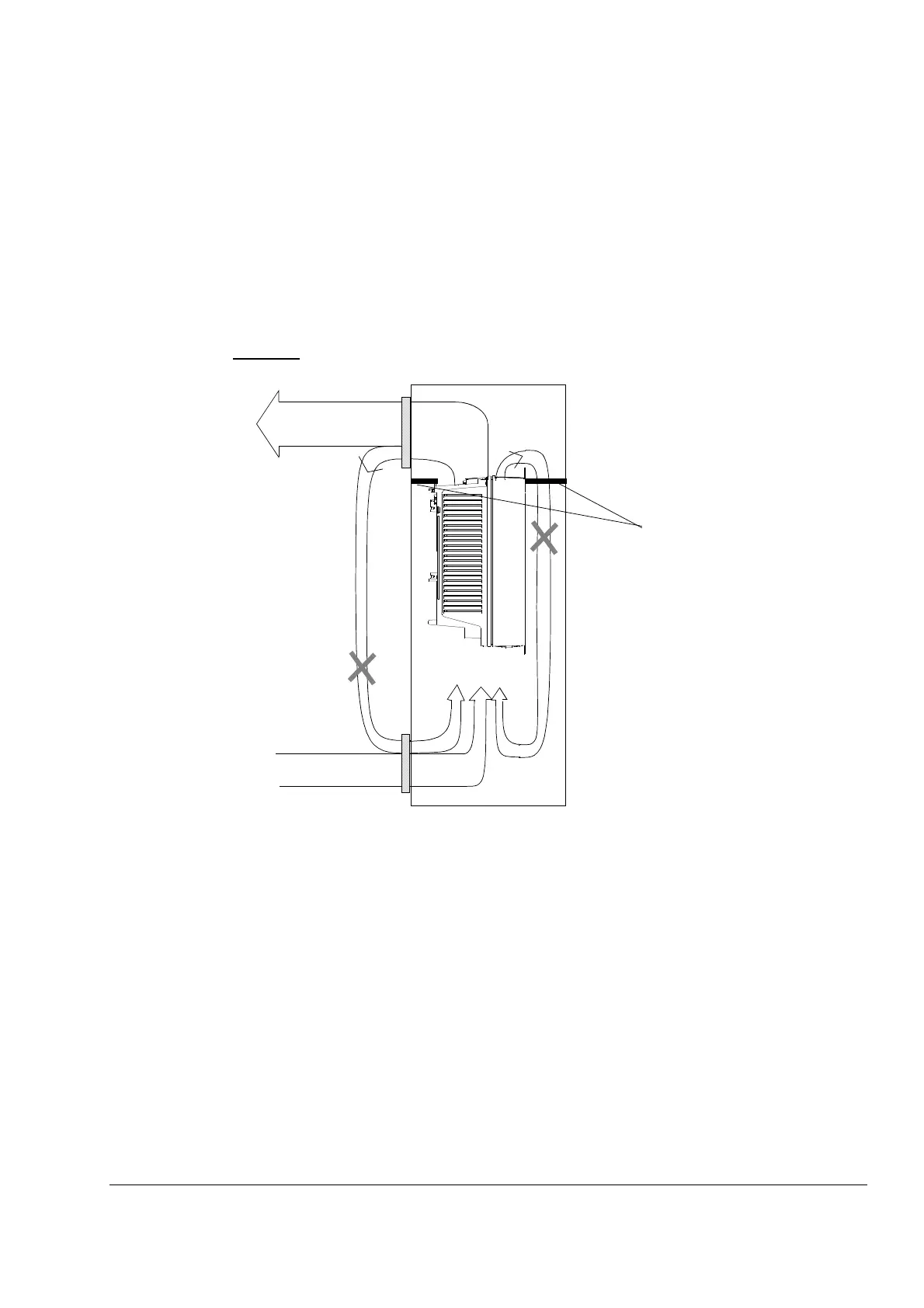

Preventing cooling air recirculation
Prevent air recirculation inside and outside the cabinet.
Example
HOT
AREA
Main air flow out
Main air flow in
Air baffle plates
COOL AREA
