102 External control unit

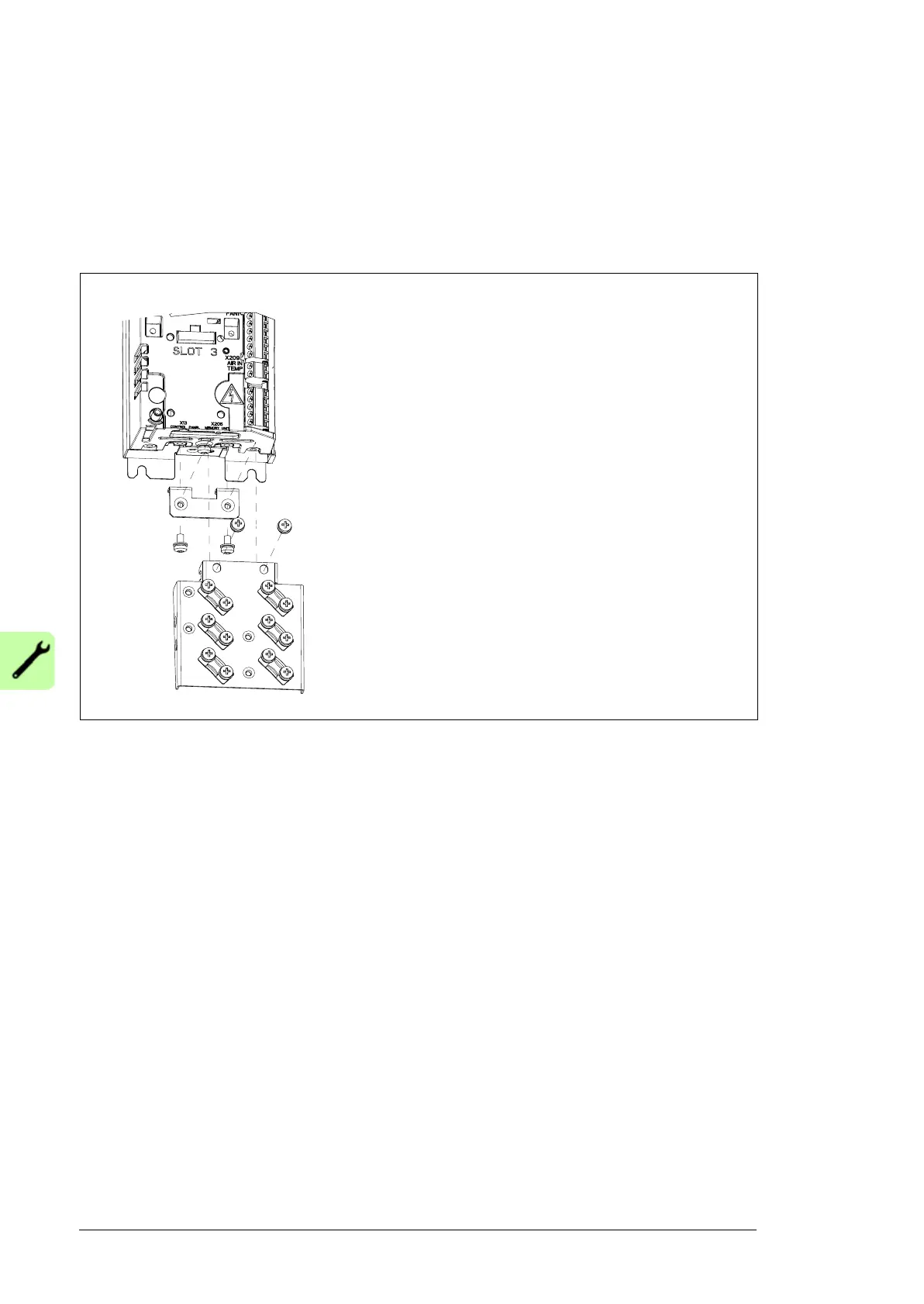

Attaching the control cable clamp plate

Attach the control cable clamp plate either to the top or base of the control unit with four

screws as shown below.

Note: If you install the FSO-xx safety functions module above the control unit, fasten the

control cable clamp plate on the base of the control unit. See section Installing the FSO

safety functions module (option +Q973) on page 112.

0.7 N·m

(6.2 lbf·in)
