148 Installation example with full cabling panels (option +H381)
 Modular design of Rittal TS8 cabinets

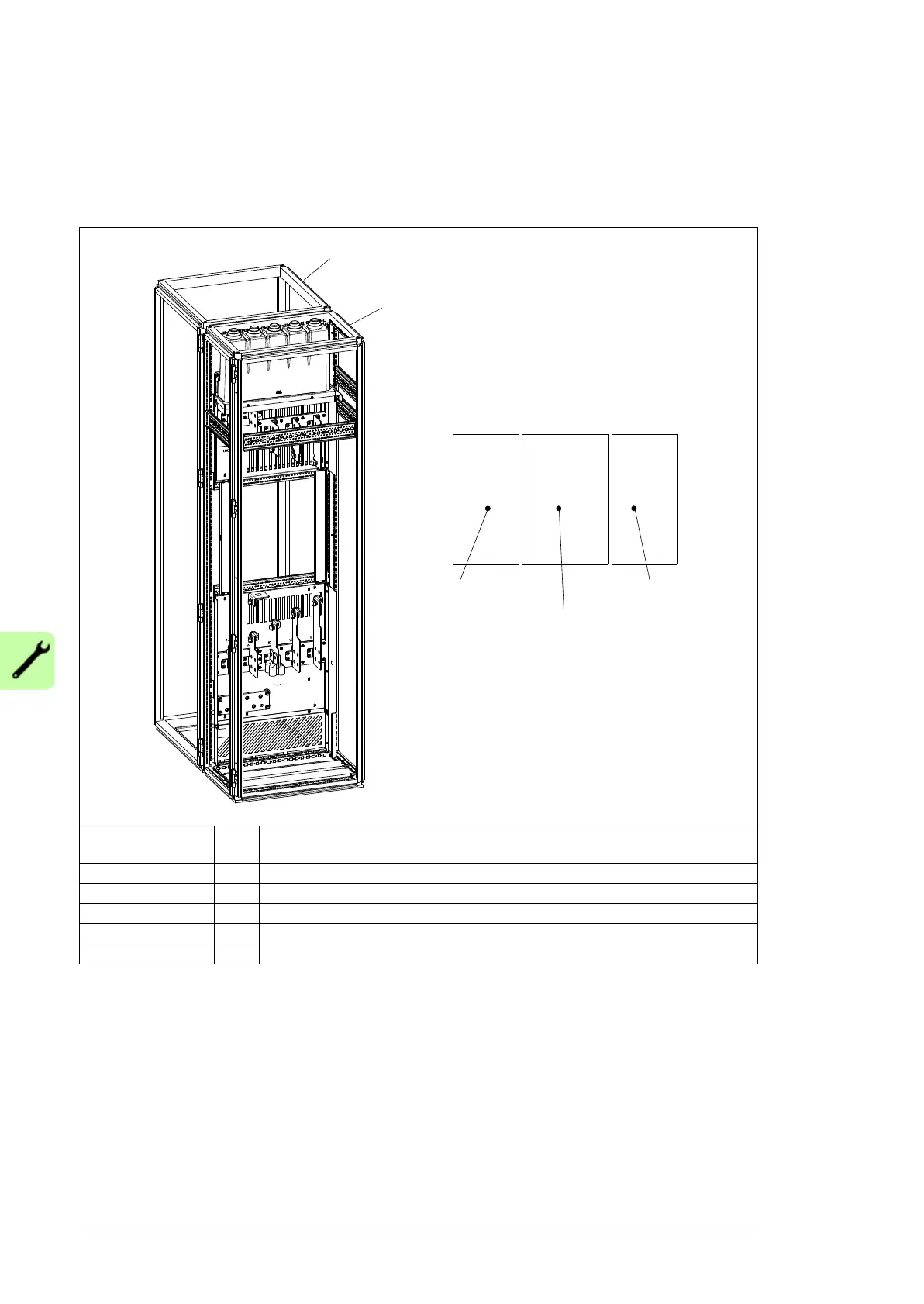

The design of the drive module with optional cabling panels (+H381) is optimized to the
Rittal TS 8406.500 cabinet. To make space for the additional components, connect two or
more TS8 cabinets together. An example is shown below.
Rittal code Qty
(pcs)
Description
TS 8406.500 1 Enclosure without mounting plate. Includes frame, door, side and back panels.
TS 8606.5xx 1 Enclosure without mounting plate. Includes frame, door, side and back panels.
8800.410 – One set 6 Baying clamp for connecting the cabinet frames
8800.430 – One set 4 Angular baying bracket for connecting the cabinet frames
8800.860 – One set 1 Baying cover top if two cabinet roofs are connected
TS 8406.500
TS 8606.5xx
TS 8406.500
TS 8xxx.xxx TS 8xxx.xxx
