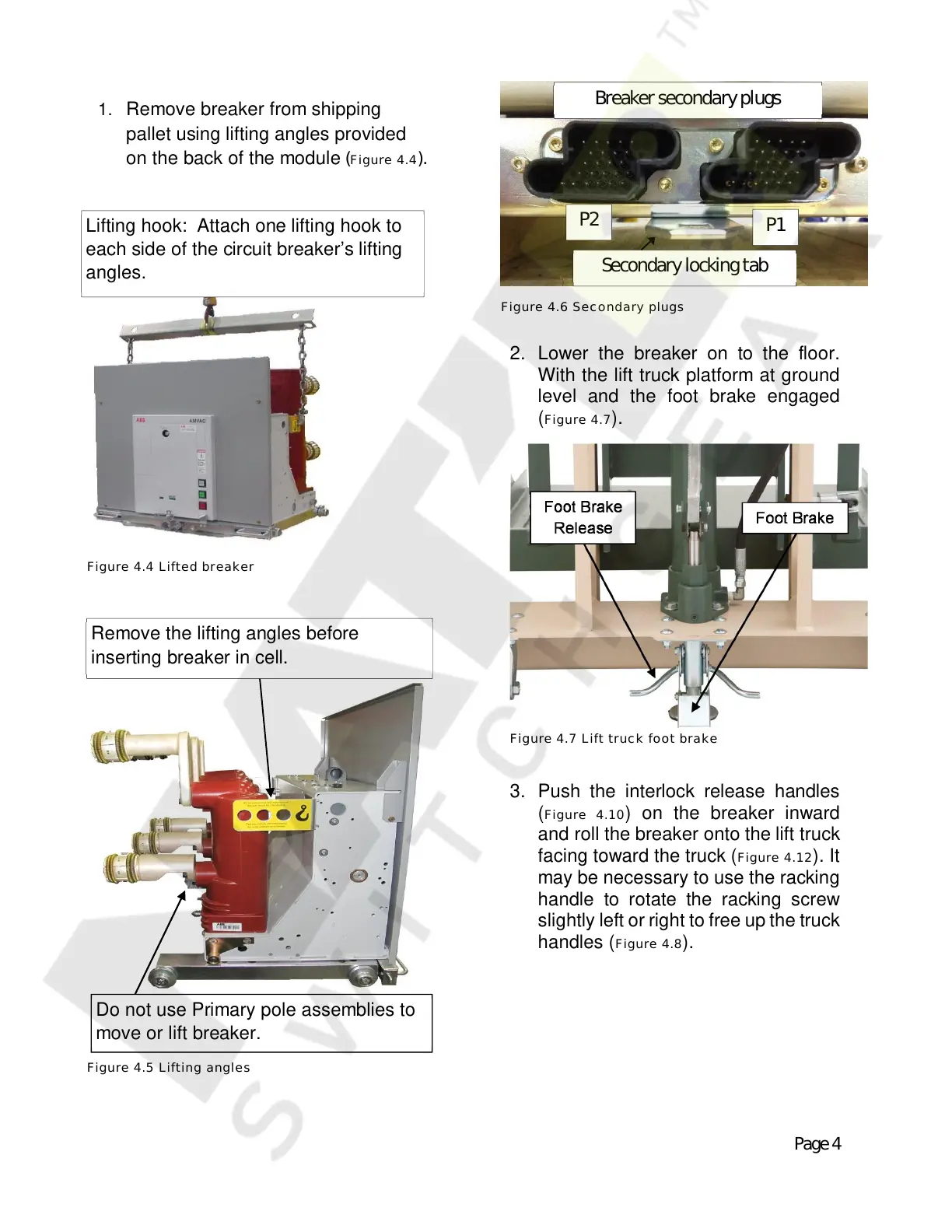

1. Remove breaker from shipping
pallet using lifting angles provided
on the back of the module (Figure 4.4).
2. Lower the breaker on to the floor.
With the lift truck platform at ground
level and the foot brake engaged
(Figure 4.7).
Figure 4.7 Lift truck foot brake
3. Push the interlock release handles
(Figure 4.10) on the breaker inward
and roll the breaker onto the lift truck
facing toward the truck (Figure 4.12). It
may be necessary to use the racking
handle to rotate the racking screw
slightly left or right to free up the truck
handles (Figure 4.8).
Lifting hook: Attach one lifting hook to
each side of the circuit breaker’s lifting
angles.
Figure
4
.
4
Lifted breaker
Remove the lifting angles before
inserting breaker in cell.
Do not use Primary pole assemblies to
move or lift breaker.
Breaker secondary plugs
Secondary locking tab
Figure
4
.
5
Lifting angles
Figure
4
.
6
Secondary plugs
P2
P1
