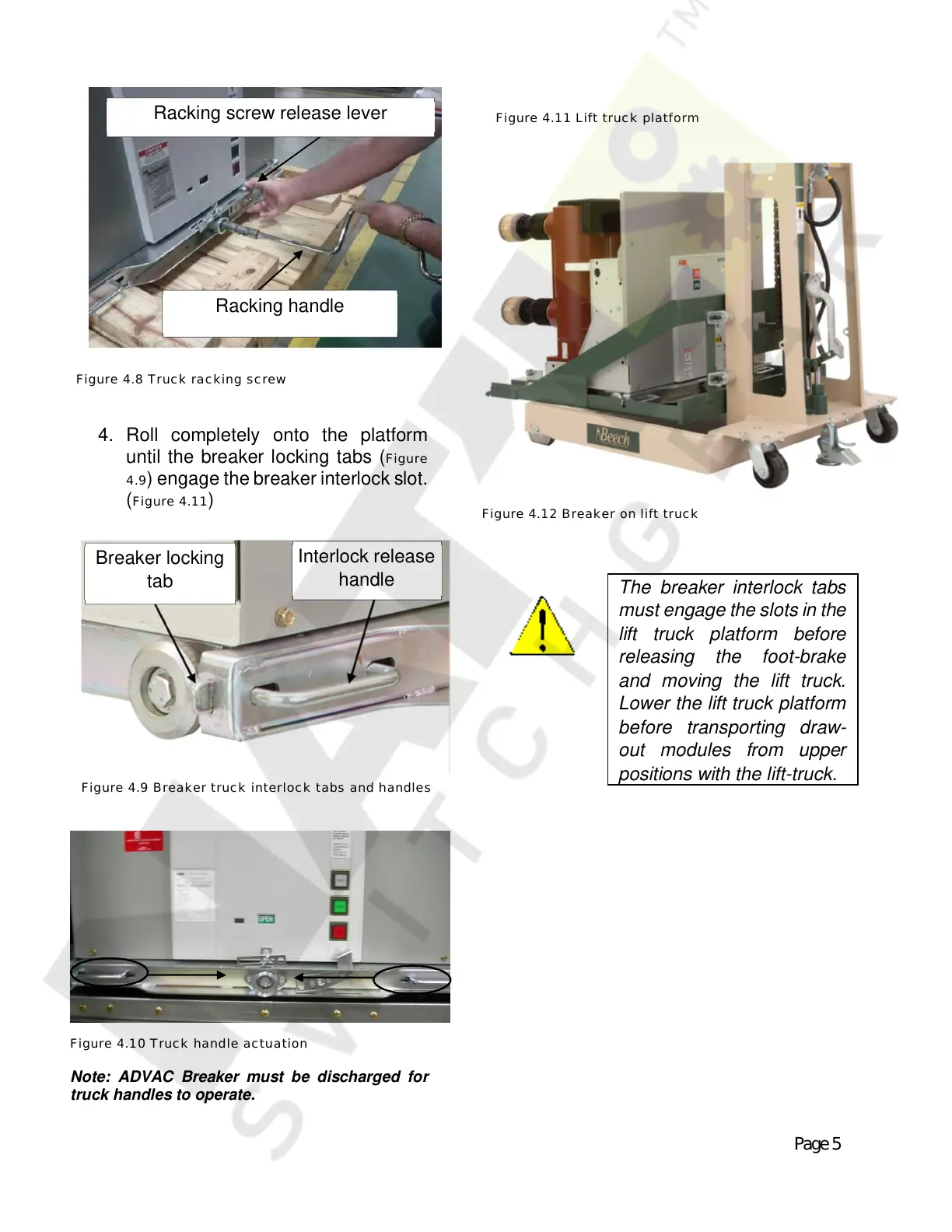

4. Roll completely onto the platform
until the breaker locking tabs (Figure
4.9) engage the breaker interlock slot.
(Figure 4.11)
Figure 4.10 Truck handle actuation
Note: ADVAC Breaker must be discharged for
truck handles to operate.
Figure 4.12 Breaker on lift truck
The breaker interlock tabs
must engage the slots in the
lift truck platform before
releasing the foot-brake
and moving the lift truck.
Lower the lift truck platform
before transporting draw-
out modules from upper
positions with the lift-truck.
Racking screw release lever
Racking handle
Figure
4
.
8
Truck racking screw
Interlock release
handle
Breaker locking
tab
Figure
4
.
9
Breaker truck interlock tabs and handles
Figure 4.11 Lift truck platform
Courtesy of NationalSwitchgear.com
