Installation, Operations and Maintenance Manual
8
4. Usage and Operation for ReliaGear ND
G&T Devices
4.1 Grounding
1. Disconnect the grounding bus from the
terminal.
2. Remove grounding bus and clear the bus away
from the G&T.
3. If the opposite terminal location (upper or lower)
is needed, refer to section 4.3 for instructions.

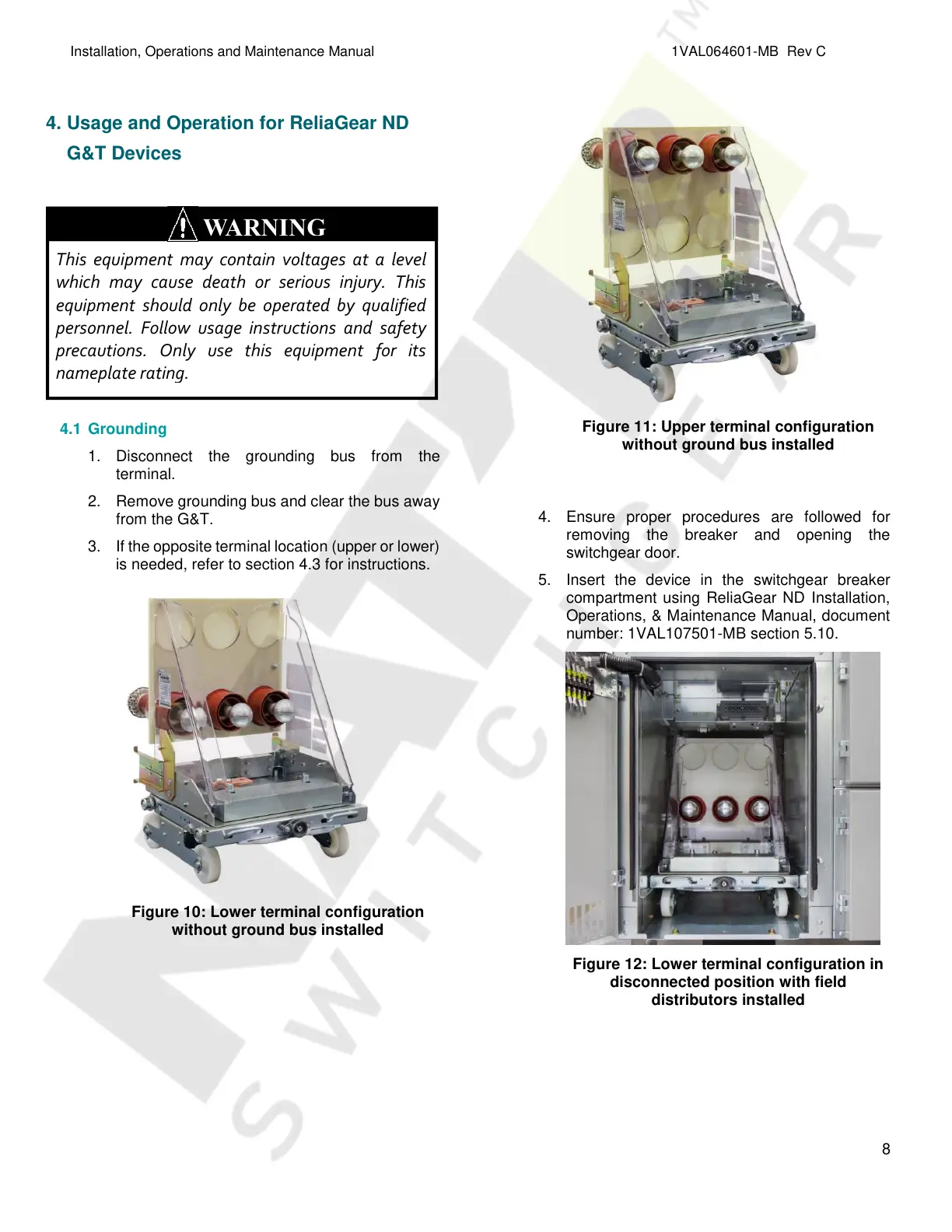

Figure 10: Lower terminal configuration
without ground bus installed
Figure 11: Upper terminal configuration
without ground bus installed
4. Ensure proper procedures are followed for
removing the breaker and opening the
switchgear door.
5. Insert the device in the switchgear breaker
compartment using ReliaGear ND Installation,
Operations, & Maintenance Manual, document
number: 1VAL107501-MB section 5.10.
Figure 12: Lower terminal configuration in
disconnected position with field
distributors installed
This equipment may contain voltages at a level
which may cause death or serious injury. This
equipment should only be operated by qualified
personnel. Follow usage instructions and safety
precautions. Only use this equipment for its
nameplate rating.
