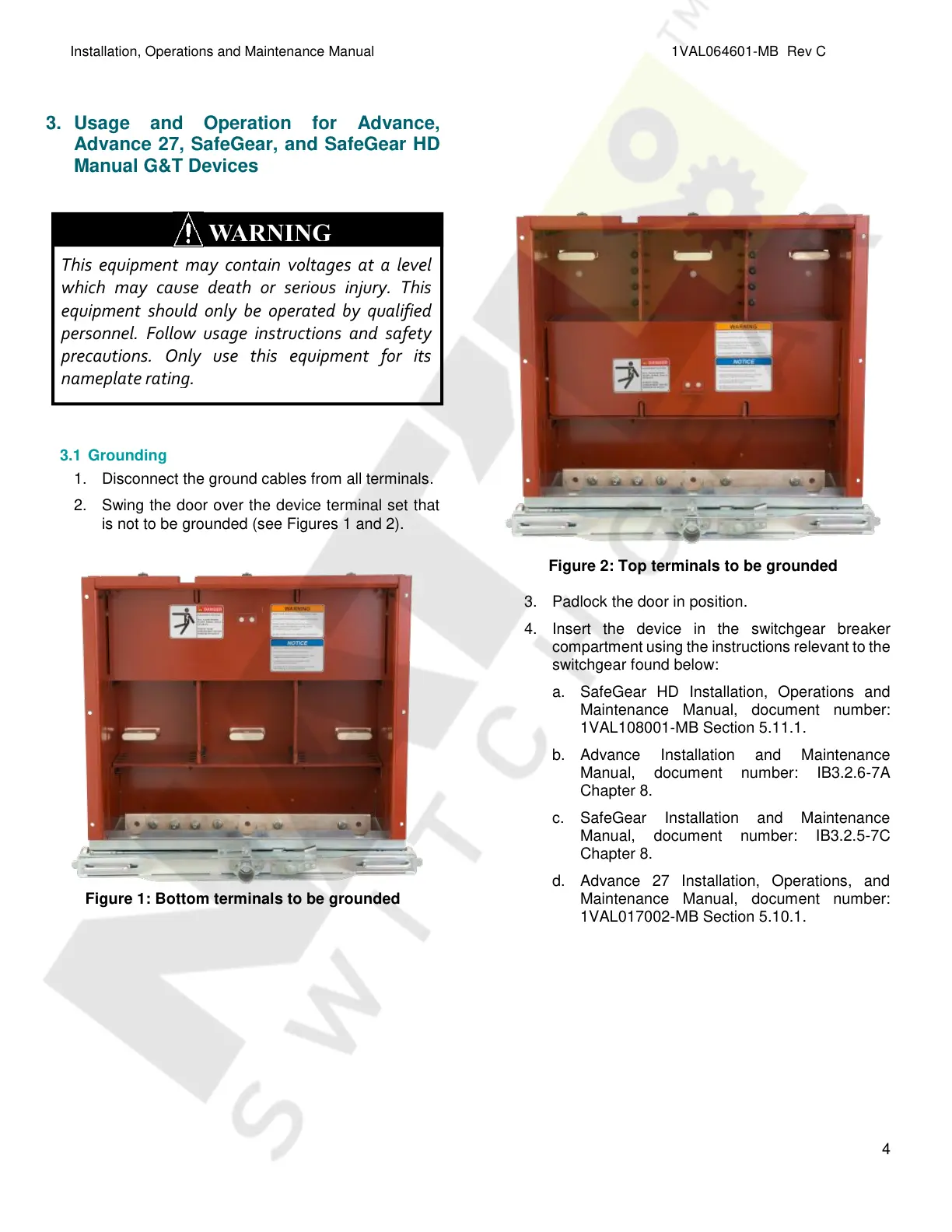

Installation, Operations and Maintenance Manual
1VAL064601-MB Rev C
4
3. Usage and Operation for Advance,
Advance 27, SafeGear, and SafeGear HD
Manual G&T Devices
3.1 Grounding
1. Disconnect the ground cables from all terminals.
2. Swing the door over the device terminal set that
is not to be grounded (see Figures 1 and 2).
Figure 1: Bottom terminals to be grounded
Figure 2: Top terminals to be grounded
3. Padlock the door in position.
4. Insert the device in the switchgear breaker
compartment using the instructions relevant to the
switchgear found below:
a. SafeGear HD Installation, Operations and
Maintenance Manual, document number:
1VAL108001-MB Section 5.11.1.
b. Advance Installation and Maintenance
Manual, document number: IB3.2.6-7A
Chapter 8.
c. SafeGear Installation and Maintenance
Manual, document number: IB3.2.5-7C
Chapter 8.
d. Advance 27 Installation, Operations, and
Maintenance Manual, document number:
1VAL017002-MB Section 5.10.1.
This equipment may contain voltages at a level
which may cause death or serious injury. This
equipment should only be operated by qualified
personnel. Follow usage instructions and safety
precautions. Only use this equipment for its
nameplate rating.
Courtesy of NationalSwitchgear.com
