Installation, Operations and Maintenance Manual
5

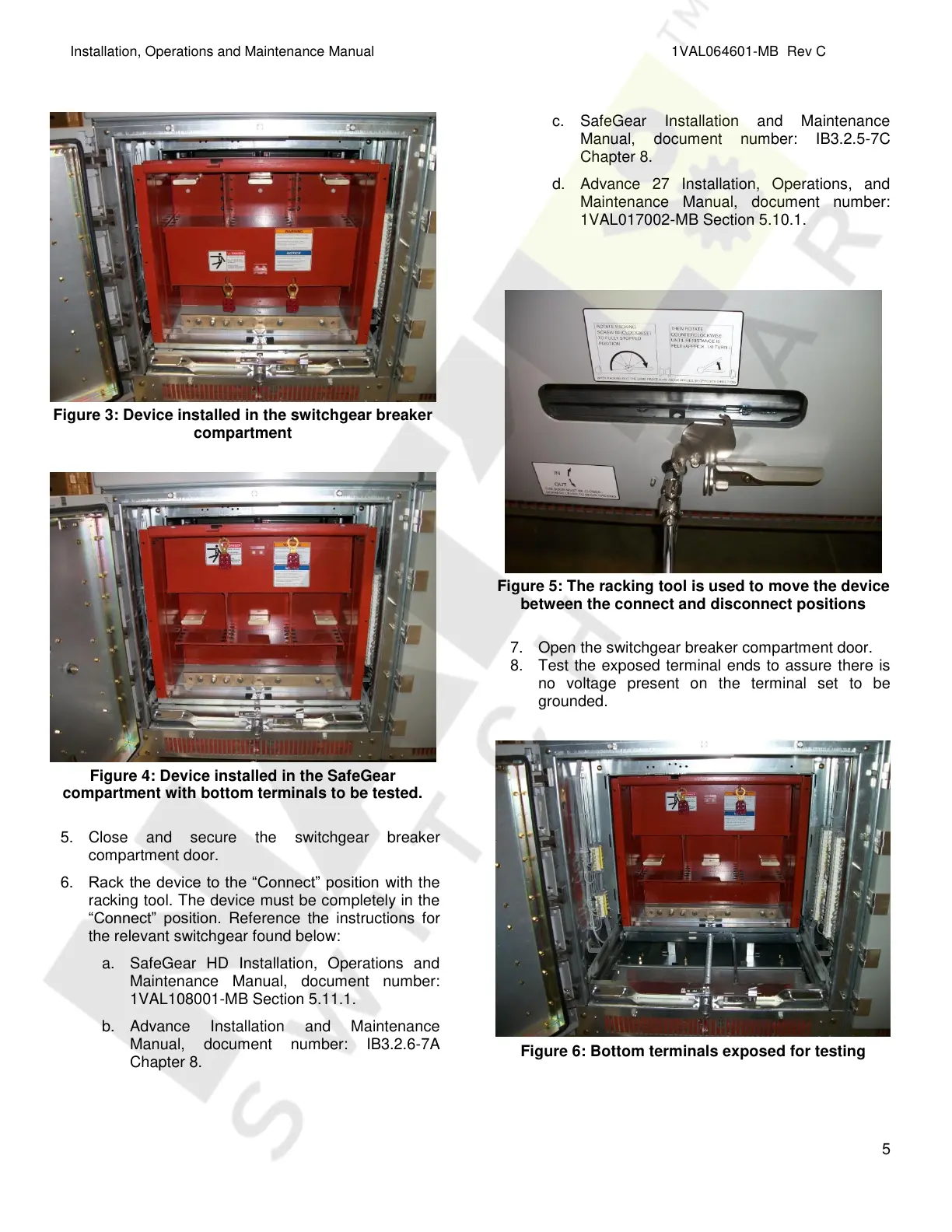

Figure 3: Device installed in the switchgear breaker
compartment
Figure 4: Device installed in the SafeGear
compartment with bottom terminals to be tested.
5. Close and secure the switchgear breaker
compartment door.
6. Rack the device to the “Connect” position with the
racking tool. The device must be completely in the
“Connect” position. Reference the instructions for
the relevant switchgear found below:
a. SafeGear HD Installation, Operations and
Maintenance Manual, document number:
1VAL108001-MB Section 5.11.1.
b. Advance Installation and Maintenance
Manual, document number: IB3.2.6-7A
Chapter 8.
c. SafeGear Installation and Maintenance
Manual, document number: IB3.2.5-7C
Chapter 8.
d. Advance 27 Installation, Operations, and
Maintenance Manual, document number:
1VAL017002-MB Section 5.10.1.
Figure 5: The racking tool is used to move the device
between the connect and disconnect positions
7. Open the switchgear breaker compartment door.
8. Test the exposed terminal ends to assure there is
no voltage present on the terminal set to be
grounded.
Figure 6: Bottom terminals exposed for testing
Courtesy of NationalSwitchgear.com
