14 ANSI MEDIUM VOLTAGE METAL-CLAD DIGITAL SWITCHGEAR
This concludes the Switching Settings (VLAN)
activities.
PRP and HSR redundancy settings
This section is only valid if PRP and HSR are
required for the application. This should be
defined in the project scope for the switchgear at
the time of ordering. For PRP HSR applications
use the MOXA PT-G503 switches instead of their
switches as shown in Basic Settings on page 11.
PRP
There is no special setting in the Ethernet switch
for PRP networks.
This concludes the basic setup of the Moxa
ethernet switch. Consult the User’s Manual and/
or Instruction Manual for the appropriate switch
provided in the switchgear for complete and
detailed instructions on how to set up, program,
operate and maintain Moxa switches.
—
20
—
20 Redundancy protocol
network settings
HSR
Check the HSR parameters setting according to
the Moxa User’s Manual or Instruction Manual. It
varies based on the network topology used.

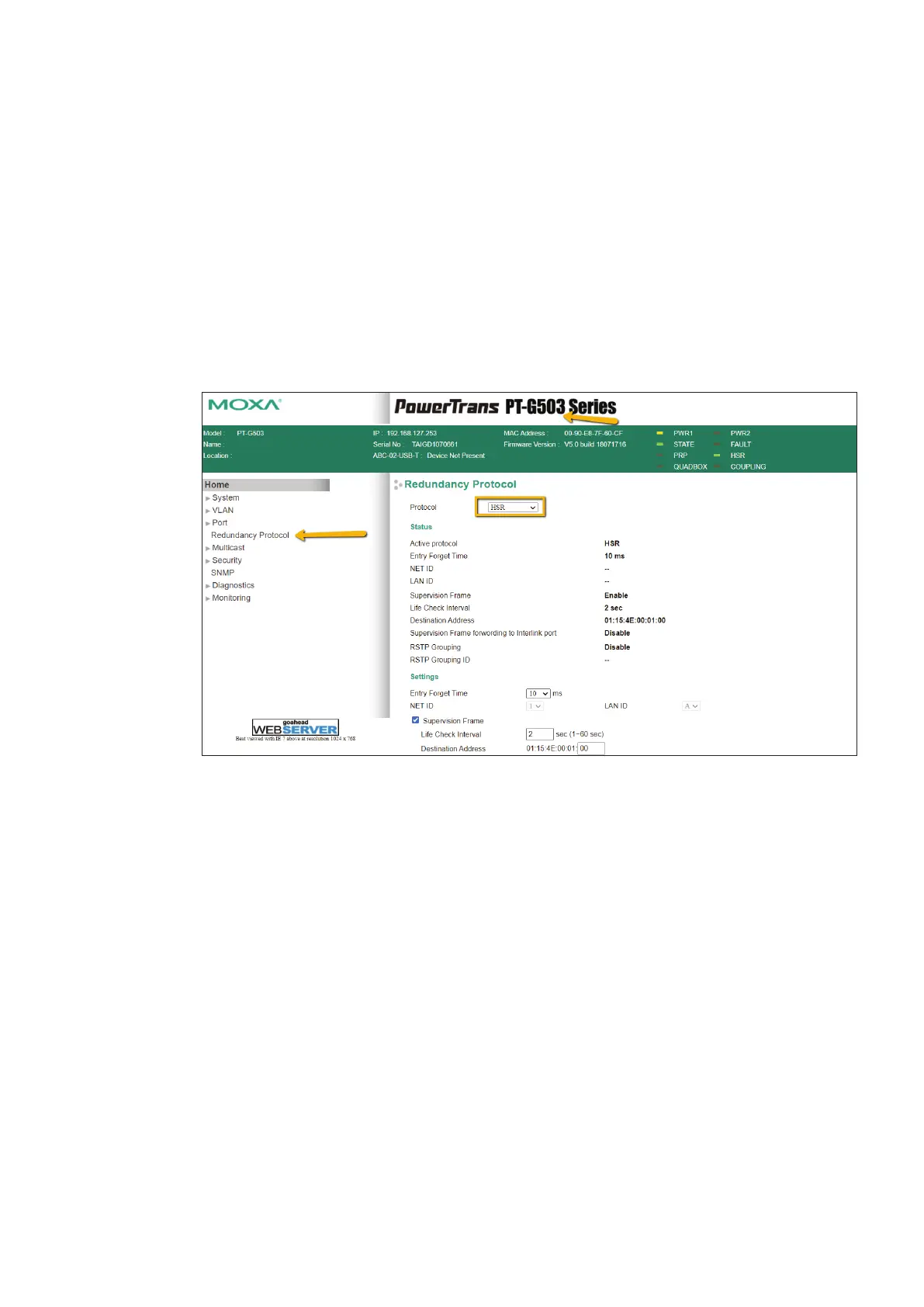

Select “Redundancy Protocol” under the Home
menu to access HSR screen. HSR can be
configured from this screen as required by the
project needs. Consult the appropriate User’s
Manual and/or Instruction Manual for updating
this screen.
