ABB ATS022 - Page 25

25
1SDH000760R0002, L4106
Installation and operating instructions, ATS022
Con-
nector
Description
X11:1
X11:2
X11:3
X11:4
Normal line LN1: L1
Normal line LN1: L2
Normal line LN1: L3
Normal line LN1: N
X12:1
X12:2
X12:3
X12:4
Emergency line LN2: L1
Emergency line LN2: L2
Emergency line LN2: L3
Emergency line LN2: N
X41:1
X41:2
AUX +
AUX -
X21:1 Common
X21:2 DO1
X21:3 DO2
X22:1 Common
X22:2 DO3
X22:3 DO4
X23:1 DO5 start
X23:2 Common
X23:3 DO5 stop
X24:1 DO11
X24:2 Common
X24:3 DO11
Connectors, ATS022
6. Connecting
Table 6.2 Connectors ATS022

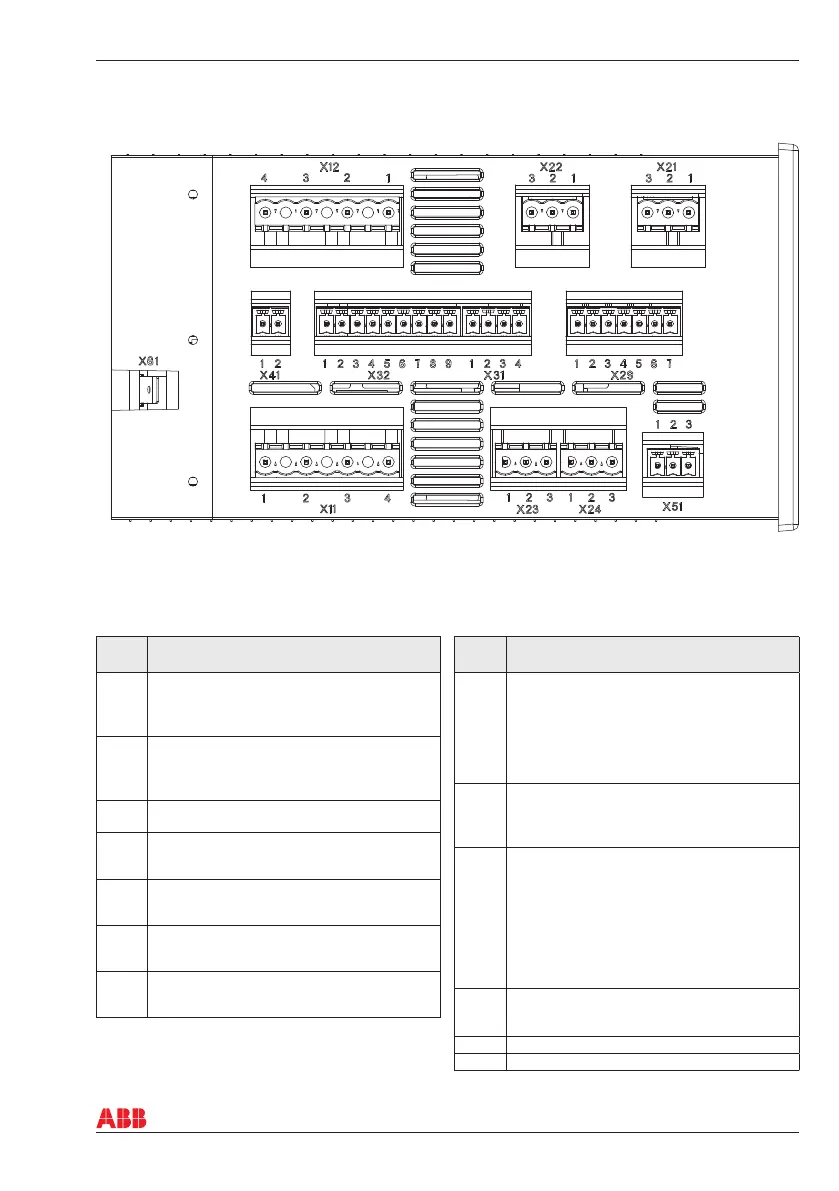

Figure 6.3 Connectors, ATS022
Con-
nector
Description
X29:1
X29.2
X29:3
X29:4
X29.5
X29:6
X29:7
DO6
not used
not used
DO9
DO10
not used
Common
X31:1
X31:2
X31:3
X31:4
DI3
DI1
DI2
DI supply
X32:1
X32.2
X32:3
X32:4
X32.5
X32:6
X32:7
X32:8
X32.9
DI11
DI10
DI9
DI8
DI7
DI6
DI5
DI4
DI supply
X51:1
X51:2
X52:3
Modbus DATA B
Modbus DATA A
Modbus GND
X61 Equipment earth
X62 Equipment earth
KA00419
