...Specification

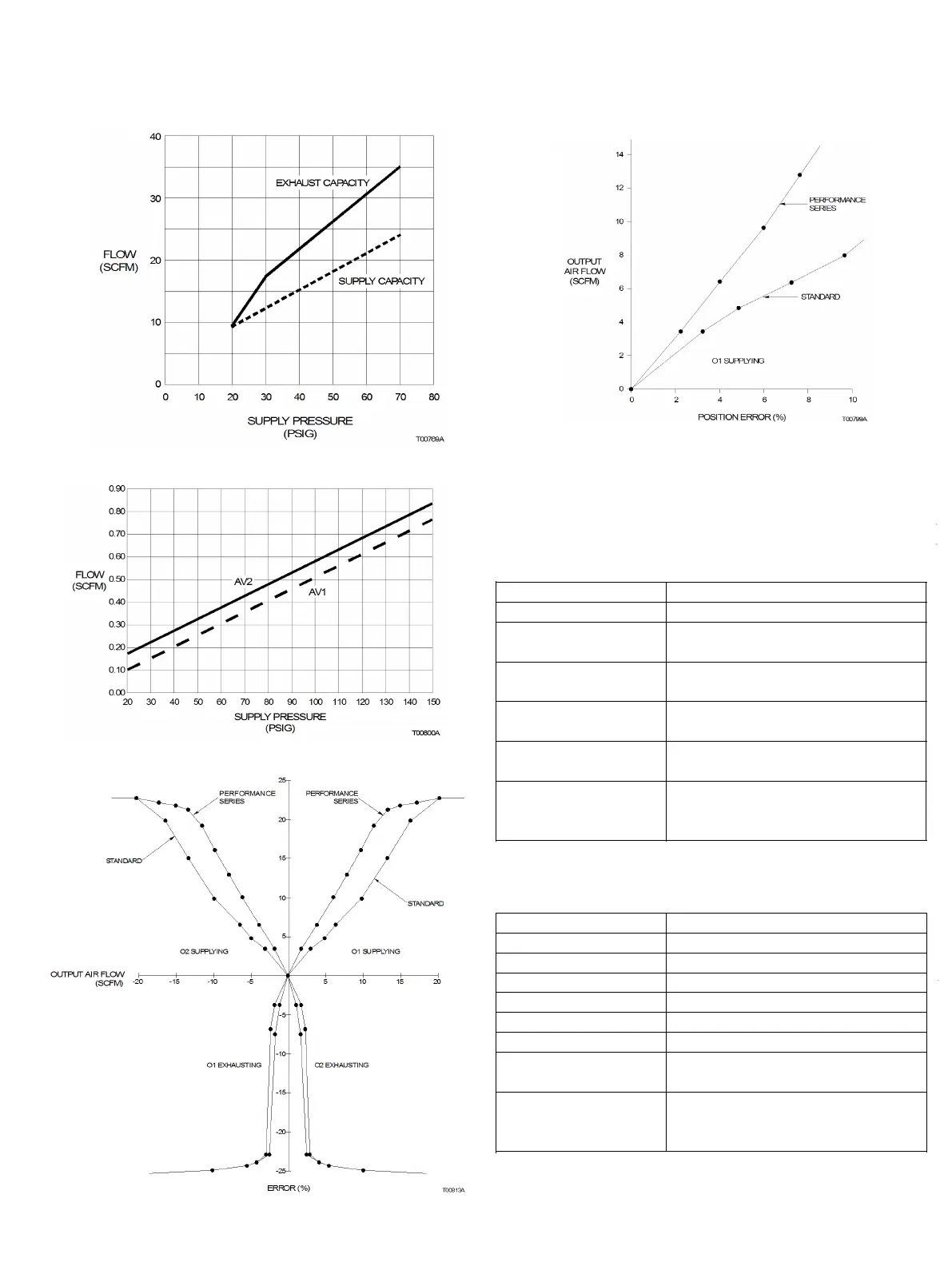

Figure 1-2. Air Consumption
Figure 1-4. Expanded First Quadrant View of Figure 1-3
Figure 1-3. Output Air Flow vs. Error Signal
— Standard and Performance Series
Figure 1-1. Capacity (Exhaust to Atmosphere)
Table 1-2. Type AV
_
_ _ _ 1 _ _
Potentiometric Position Transmitter Specifications
Table 1-3. Type AV
_
_ _ _ 2 _ _
4 to 20-mA Position Transmitter Specifications
Property Characteristic/Value
Supply voltage 16 to 34 VDC
Output signal 4 to 20 mA
Output loading 500 at 24 VDC, 1000 at 34 VDC
Accuracy <0.6% of span (maximum)
Hysteresis <0.5% of span (maximum)
Ambient temp effect <0.063% per °C (<0.035% per °F)
EMI/RFI effect <1.5% maximum at 10 V/m
field strength, 20 to 450 MHz
Temperature limits
Operating
Storage
-40°C to 82°C (-40F° to 180°F)
-40°C to 93°C (-40F° to 200°F)
4 AVI and AV2 POSITIONERS | SOI/AV12 RE V. A
Property Characteristic/Value
Total resistance 2000
Power rating 1 W up to 70°C (158°F),
0 W at or above 125°C (257°F)
Wiper rate of change 9.9 nominal per degree of
cam rotation
Temperature effect 0.05% (500 ppm) per °C
(0.03% (278 ppm) per °F) maximum
Maximum voltage 35 VDC or 30 VAC across the
potentiometer ends
Temperature limits
Operating
Storage
-40°C to 82°C (-40°F to 180°F)
-40°C to 93°C (-40°F to 200°F)
